REAR TORQUE ARM (M-10) FOR 800 XC SP EDGE M-10 F/O FROM 2003

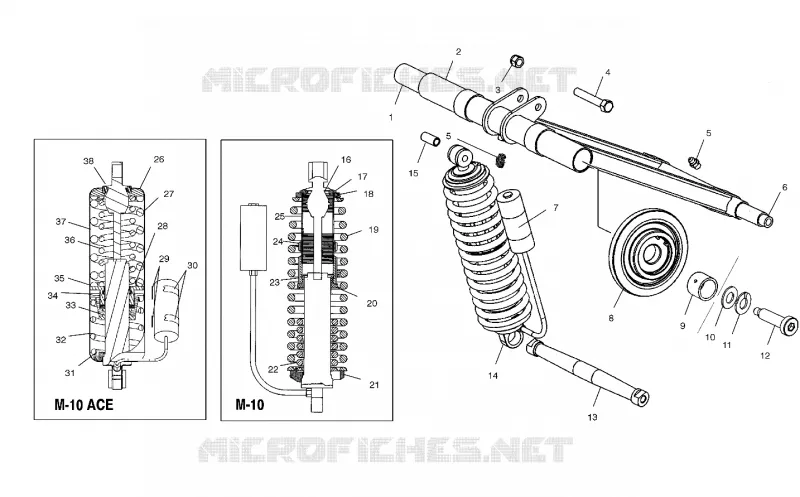

REAR TORQUE ARM (M-10)

1

SHAFT UPR.TORQUE ARM M-10

5132578

Not Available

2

Arm Torque Yellow (ACE)

1541894216

Not Available

2

WELD-TORQUE ARM M-10 YELLOW

1541527216

Not Available

3

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

4

SCREW

7515415

$2,09 Unit Price incl. VAT

5

FITTING-LUBRICATION 1/4-28

7080424

$9,44 Unit Price incl. VAT

6

SHAFT-RTA LOWER Substituted by 2201938

5133093

$46,19 Unit Price incl. VAT

7

DECAL-M-10 FOX RES

7079432

Not Available

8

BEARING-6206

3514330

$54,59 Unit Price incl. VAT

8

ASM-WHEEL OFF-SET 5.60

1590308

Not Available

8

RING RETAINING

7710471

$25,19 Unit Price incl. VAT

9

COLLAR-BRG LOCK REAR

5132582

Not Available

9

SCREW SOCKET SET

7512257

$7,34 Unit Price incl. VAT

10

WASHER FLAT

7555984

$4,19 Unit Price incl. VAT

11

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

12

SCR-7/16-14X1.25SOCHD-P80-DGPT

7517815

Not Available

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

Shock Rear Track (See Shock (Rear Track)(M-10 ACE) Pg.E10 for Details]

7042149

Not Available

14

Shock Rear Track (Incl. All)

7042216

Not Available

15

SLEEVE .385X.560X1.24

5333905

$27,29 Unit Price incl. VAT

16

CAP-ICE

5244747

$9,23 Unit Price incl. VAT

17

RETAINER SPRING SLOTTED

5020618

$36,74 Unit Price incl. VAT

18

NUT-PRELOAD

5132645

Not Available

19

SPRING-REAR SHOCK M10 SCR YLW

7041935216

Not Available

20

BUSHING-OVER LOAD DEPRESSOR

5433882

Not Available

21

Retainer Spring Rear

5133032

$120,74 Unit Price incl. VAT

22

SPRING-REAR OVER/LOAD M-10 BLK

7041936067

Not Available

23

RING-ADJUSTER

5132625

Not Available

24

NUT-RING ADJUSTER

5132643

Not Available

25

SLEEVE-OVERLOAD DEPRESSOR

5132794

Not Available

26

Retainer Spring Lower (M-10 ACE)

5133746

$88,19 Unit Price incl. VAT

27

Spring Compression (M-10 ACE)

7042208

Not Available

28

Bushing Nylon (M-10 ACE)

5434896

Not Available

29

Pad Rubber (M-10 ACE)

5812432

$4,29 Unit Price incl. VAT

30

Clamp Hose (M-10 ACE)

7081119

$11,01 Unit Price incl. VAT

31

Retainer Spring Upper (M-10 ACE)

5133747

Not Available

32

Spring Compression (M-10 ACE)

7042207

Not Available

33

BUSHING-OVER LOAD DEPRESSOR

5433882

Not Available

34

Retainer Spring Preload Adj. (M-10 ACE)

5133744

Not Available

35

Collar Spring Preload Adj. (M-10 ACE)

5133745

$161,69 Unit Price incl. VAT

36

Spring Compression (M-10 ACE)

7042206

Not Available

37

Cover (M-10 ACE)

2683223

Not Available

38

Collar Spring Slotted (M-10 ACE)

5133778

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
