Parts Catalog
WIRE HARNESS
5

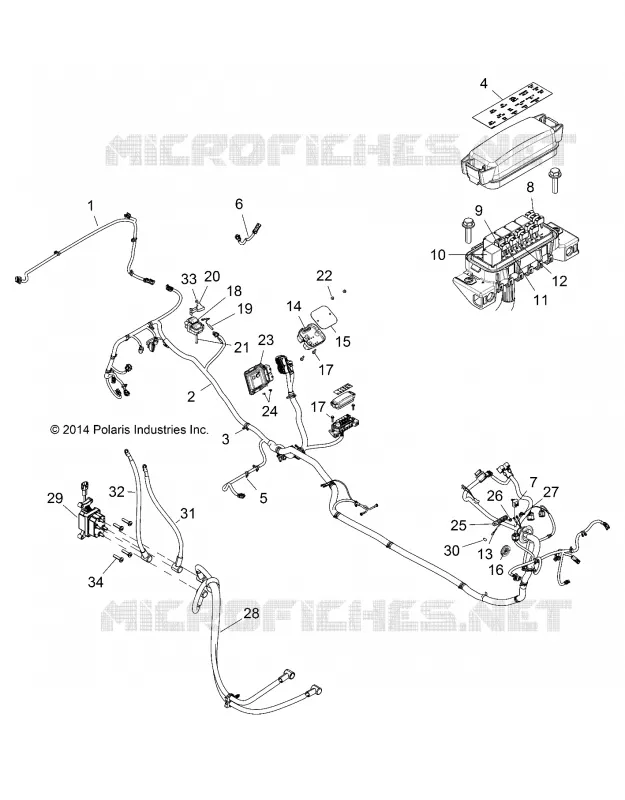

Parts Diagram
Parts Catalog
ELECTRICAL, DASH INSTRUMENTS AND CONTROLS
by
ENGINE, DIPSTICK AND OIL FILTER
WIRE HARNESS
1
2
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
15
16
17
17
18
19
20
21
14
23
24
25
26
27
28
29
30
31
32
33
34
1
HARNESS BOX
2412884
$115,49 Unit Price incl. VAT
2
HARNESS CHASSIS EPS [INCL. 24-33][BUILT 3/30/15 AND BEFORE]
2412849
2413232
$1 905,74 Unit Price incl. VAT
2
HARNESS CHASSIS [AL]
2412921
2413234
$1 994,99 Unit Price incl. VAT
2
HARNESS CHASSIS EPS RZN 64 [NM INCL. 3-5 7-12]
2413232
$1 905,74 Unit Price incl. VAT
3
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
4
LABEL FUSE BOX [NM]
7180884
Not Available
4
LABEL FUSE BOX
7182155
$78,74 Unit Price incl. VAT
5
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
6
WIRE THERMISTER LEAD
4014319
$152,24 Unit Price incl. VAT
7
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
8
FUSE-25A MINI BLADE
4011653
$16,79 Unit Price incl. VAT
9
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
10
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
11
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
12
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
13
LED PANEL MOUNT not in 2413240 or 2413232
2412443
2413217
$99,74 Unit Price incl. VAT
14
REGULATOR 3 PHASE 50 AMP SERIES
4014856
4016868
$246,74 Unit Price incl. VAT
14
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
14
K-REGULATOR ADAPTER [IF BUILT 2/22/16 AND BEFORE ORDER KIT][INCLS. RIG. HARNESS BOLTS NUTS]
2206367
$173,24 Unit Price incl. VAT
14
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
14
HARNESS-REGULATOR ADAPTE
2413573
$173,24 Unit Price incl. VAT
15
PLATE HEAT SINK REGULATOR
5254970
Not Available
16
GROMMET ELECTRICAL CAB
5414440
$13,64 Unit Price incl. VAT
17
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
18
COIL-EFI
4010425
2876049
$451,49 Unit Price incl. VAT
19
JUMPER COIL GROUND
4014422
$62,99 Unit Price incl. VAT
20
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
21
SCR-M6X1.0X40 HX/SOC/CP-B
7518780
$7,34 Unit Price incl. VAT
22
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
23
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
24
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
25
BLOCK TERMINAL 3 POST
4011892
$62,99 Unit Price incl. VAT
26
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
27
NUTS KEPS 10-32
7547341
$1,56 Unit Price incl. VAT
28
CABLE CONTACTOR TO WINCH
4015044
4019771
$141,74 Unit Price incl. VAT
29
CONTACTOR WINCH
4013465
4015095
$148,04 Unit Price incl. VAT
30
CLIP - ROUTING DIN BOX (R MODELS)
7082020
$10,49 Unit Price incl. VAT
31
CABLE-POWER WINCH BLK 6 GA 375
4013470375
$68,24 Unit Price incl. VAT
32
CABLE-POWER WINCH RED 6 GA 370
4013471370
$68,24 Unit Price incl. VAT
33
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
34
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
