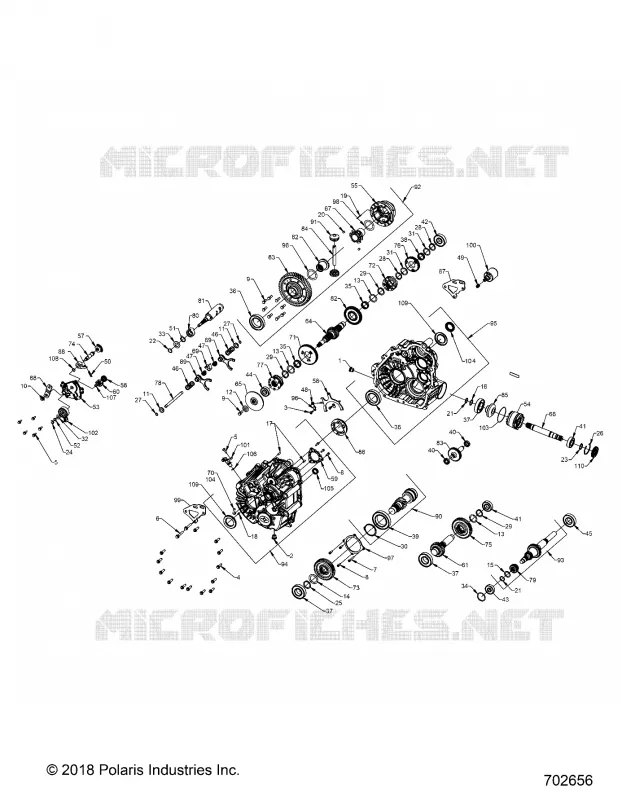

DRIVE TRAIN, MAIN GEARCASE INTERNALS (FROM 9/30/2019) FOR RANGER 902 DIESEL EU/TRACTOR FROM 2020

1

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

2

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

3

SCREW 6-LOBE PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

4

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

5

SCREW HEX FLANGE HEAD M6 X 1 X 20

3235206

$13,64 Unit Price incl. VAT

6

SCREW HEX FLANGE M8 X 50

3235207

$19,94 Unit Price incl. VAT

7

SCREW SOCKET HEAD CAP M6 X 1.0 X 40

3235208

$20,99 Unit Price incl. VAT

8

SCREW SOCKET HEAD CAP M6 X 1.0 X 18

3235332

$7,34 Unit Price incl. VAT

9

SCREW CAP HH M8 X 1.25 X 25

3236169

$17,84 Unit Price incl. VAT

10

NUT LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$14,69 Unit Price incl. VAT

11

WASHER CUP

3234091

$17,84 Unit Price incl. VAT

12

WASHER BELLEVILLE 42140 X 1.25 X 0.09

3234952

$13,64 Unit Price incl. VAT

13

WASHER-32.3X42X1.5(115288)

3235211

$19,94 Unit Price incl. VAT

14

WASHER-35.6X57X1.5(115289)

3235212

$25,19 Unit Price incl. VAT

15

WASHER 22.70 X 32.0 X 1.5

3235991

$19,94 Unit Price incl. VAT

16

WASHER 22.5 X 30 X 1.5

3236410

$14,69 Unit Price incl. VAT

17

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

18

PIN SPRING SLOTTED 6 X 12

7043746

$15,74 Unit Price incl. VAT

19

PIN DOWEL 3 X 40

3236286

$25,19 Unit Price incl. VAT

20

PIN DOWEL 8 X 10

3236295

$20,99 Unit Price incl. VAT

21

RING RETAINING BASIC EXTERNAL

7710434

$7,34 Unit Price incl. VAT

22

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT

23

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

24

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

25

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

26

RING RETAINING BASIC INTERNAL 2.047

3234269

$17,84 Unit Price incl. VAT

27

RING RETAINING BASIC EXTERNAL 0.428

3234090

$19,94 Unit Price incl. VAT

28

RING RETAINING

3234205

$20,99 Unit Price incl. VAT

29

RING RETAINING BASIC EXTERNAL MSR-32

3235214

$17,84 Unit Price incl. VAT

30

RING-RETAIN VSH-237(130298)

3235216

$19,94 Unit Price incl. VAT

31

WASHER THRUST 1.187 X 1.500 X .0600

3233378

$17,84 Unit Price incl. VAT

32

WASHER THRUST 0.446 X 0.88 X 0.025

3234642

$19,94 Unit Price incl. VAT

33

SPACER 19.4 X 34.0 X 2.0

3235883

$41,99 Unit Price incl. VAT

34

SHIM 46.1 OD X 38 ID

3236234

$99,74 Unit Price incl. VAT

35

BEARING NEEDLE CAGE ASSY

3233014

$74,54 Unit Price incl. VAT

36

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

37

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

38

BEARING-NEEDLE 30X35X13-CAGED

3233384

$54,59 Unit Price incl. VAT

39

BEARING BALL 6012 C3 60 X 95 X 18

3235218

$101,84 Unit Price incl. VAT

40

BEARING BALL 6903 17 X 30 X 7

3235807

$60,89 Unit Price incl. VAT

41

BEARING BALL 6205R SH2 C3 25X52X15

3235585

$54,59 Unit Price incl. VAT

42

BEARING BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$54,59 Unit Price incl. VAT

43

BEARING BALL 6303RSH2 17 X 47 X 14

3235588

$68,24 Unit Price incl. VAT

44

BEARING BALL 6204RSH2 C3 20X47X14

3235969

$54,59 Unit Price incl. VAT

45

BEARING BALL 62/32

3236118

$54,59 Unit Price incl. VAT

46

SPRING COMPRESSION .92 O.D. X 2.000

3234078

$47,24 Unit Price incl. VAT

47

SPRING COMPRESSION 0.46 I.D. X 0.73

3234089

$52,49 Unit Price incl. VAT

48

SPRING TORSION RETURN

3234276

$16,79 Unit Price incl. VAT

49

SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE

3234277

$26,24 Unit Price incl. VAT

50

SPRING COMPRESSION 0.36 O.D. X 1.125

3234578

$26,24 Unit Price incl. VAT

51

SPRING TORSION

3235885

$36,74 Unit Price incl. VAT

52

WASHER-SPRING 210393

3235327

$17,84 Unit Price incl. VAT

53

COVER SECTOR GEARS MACH

3236121

$188,99 Unit Price incl. VAT

54

TUBE SNORKEL MACH

3236120

$309,74 Unit Price incl. VAT

55

CARRIER DIFFERENTIAL MACH

3236287

$314,99 Unit Price incl. VAT

56

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

57

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

58

FORK PIVOT SHIFT REAR DIFF

3235455

$173,24 Unit Price incl. VAT

59

PLATE PARK 12 FACE

3235456

$73,49 Unit Price incl. VAT

60

STAR DETENT

3235982

$68,24 Unit Price incl. VAT

61

SHAFT-IDLER 29T(285803)

3235223

$204,74 Unit Price incl. VAT

62

GEAR 14T OUTPUT MACH

3236290

$309,74 Unit Price incl. VAT

63

GEAR 53T OUTPUT

3236291

$488,24 Unit Price incl. VAT

64

SHAFT REVERSE 25T

3236193

$351,74 Unit Price incl. VAT

65

DISC BRAKE

3236194

$136,49 Unit Price incl. VAT

66

SHAFT FRONT OUTPUT

3236411

$246,74 Unit Price incl. VAT

67

GEAR 14T OUTPUT DISCONNECT MACH

3236289

$314,99 Unit Price incl. VAT

68

BELLCRANK ZEUS INT#L

3236243

$68,24 Unit Price incl. VAT

69

COLLAR SHIFT

3234073

$57,74 Unit Price incl. VAT

70

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

71

GEAR-LOW 67T(352856)

3235232

$230,99 Unit Price incl. VAT

72

ENGAGEMENT DOG 6-FACE(352857)

3235233

$241,49 Unit Price incl. VAT

73

GEAR-46T STAGE 3(352872)

3235236

$204,74 Unit Price incl. VAT

74

SHAFT-SHIFT(352973)

3235238

$68,24 Unit Price incl. VAT

75

GEAR 48T STAGE 2

3235450

$246,74 Unit Price incl. VAT

76

GEAR 49T

3235396

$246,74 Unit Price incl. VAT

77

SHIFT DOG PARK/LOW (353357)

3235457

$272,99 Unit Price incl. VAT

78

RAIL-SHIFT SHAFT(353622)

3235542

$52,49 Unit Price incl. VAT

79

GEAR LOW 25T

3236132

$120,74 Unit Price incl. VAT

80

CAM PARK

3235983

$283,49 Unit Price incl. VAT

81

DRUM SHIFT MACH

3235984

$519,74 Unit Price incl. VAT

82

GEAR REVERSE 56T

3235985

$188,99 Unit Price incl. VAT

83

GEAR IDLER 39T

3235986

$209,99 Unit Price incl. VAT

84

PIN DIFFERENTIAL

3236292

$194,24 Unit Price incl. VAT

85

GEAR 13T SNORKEL

3236412

$272,99 Unit Price incl. VAT

86

DOG ENGAGEMENT

3236293

$257,24 Unit Price incl. VAT

87

WELDMENT REAR MOUNT BRACKET

3236342

$68,24 Unit Price incl. VAT

88

SUBASSEMBLY PAWL DETENT ROLLER

3235452

$68,24 Unit Price incl. VAT

89

SUBASSEMBLY SHIFT FORK

3235920

$136,49 Unit Price incl. VAT

90

SUBASSEMBLY PINION 11T

3236140

$545,99 Unit Price incl. VAT

91

SUBASSEMBLY PINION GEAR

3236288

$257,24 Unit Price incl. VAT

92

SUBASSEMBLY DIFFERENTIAL

3236285

$719,24 Unit Price incl. VAT

93

SUBASSEMBLY INPUT 45T/22T/25T [TO 09/18/2023]

3236344

3239668

$797,99 Unit Price incl. VAT

94

SUBASSY RH COVER INT#L

3236341

$572,24 Unit Price incl. VAT

95

SUBASSY LH CASE

3236556

Not Available

96

RETAINER-FORK

3234934

$19,94 Unit Price incl. VAT

97

COVER-BEARING CNTR DR.

3235241

$89,24 Unit Price incl. VAT

98

WASHER THRUST 40.83 X 56.25 X 0.38

3236294

$20,99 Unit Price incl. VAT

99

BRACKET REAR MOUNT

3236343

$68,24 Unit Price incl. VAT

100

SOLENOID

3235478

$545,99 Unit Price incl. VAT

101

SENSOR-SPEED TRANS

4013908

4082135

$204,74 Unit Price incl. VAT

102

SWITCH ROTARY 2 PIN RESISTIVE

7662409

$173,24 Unit Price incl. VAT

103

O-RING 2.989 I.D. X 0.07

3236136

$17,84 Unit Price incl. VAT

104

SEAL TRIPLE LIP 32 X 49 X 8 VITON

3236141

$110,24 Unit Price incl. VAT

105

SEAL TRIPLE LIP 20 X 30 X 7.5 VITON

3236196

$52,49 Unit Price incl. VAT

106

O-RING

3234302

$13,64 Unit Price incl. VAT

107

O-RING -012 VITON

3233836

$12,59 Unit Price incl. VAT

108

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

109

SEAL TRIPLE LIP VITON HELIX 40X70X7

3235052

$57,74 Unit Price incl. VAT

110

SEAL TRIPLE LIP 25 X 55 X 8

3236135

$104,99 Unit Price incl. VAT
