1
Engine displacement
0
2
Year
1991
3
Trim
big-boss-6x6-w918727
4
Parts Catalog

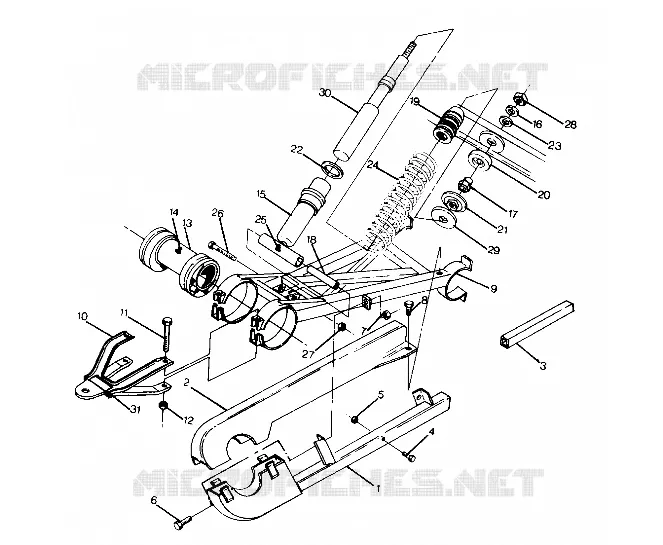

SWING ARM WELDMENT(REAR) 6X6 (4919811981029A)
5
Parts Diagram
Parts Catalog
FRONT TIGHTENER ASSEMBLY-PN 1380024 (4919811981021B)
by
DRIVE CLUTCH ASSEMBLY 6X6 (4919811981030A)
SWING ARM WELDMENT(REAR) 6X6 (4919811981029A)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
1
GUARD CHAIN WELD. Substituted by 1040184-067
1040184
Not Available
2
GUARD TOP CHAIN
5431101
Not Available
3
GUIDE R.CHAIN
5521207
Not Available
4
SCREW(10)
7511987
Not Available
5
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
7
NUT NYLOK(10)
7542327
$9,44 Unit Price incl. VAT
8
SCREW(10)
7512252
Not Available
9
S.ARM EXT. WELD. Substituted by 1580036-067
1580036
Not Available
10
HITCH WELD (ST.GREY) Substituted by 1040162-067
1040162132
Not Available
11
BOLT(10)
7512569
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
HOUSING AXLE
5130663
Not Available
14
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
15
STRUT&SHOCK ASM REAR Substituted by 1580051-132
1580038
Not Available
16
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
17
SPACER THREADED
5130631
Not Available
18
SPACER
5332971
Not Available
19
BUMPER
5410535
Not Available
20
PIVOT BALL TOP Substituted by 5432872
5430806
5432872
$19,94 Unit Price incl. VAT
21
PIVOT BALL BOTTOM Substituted by 5432871
5430807
5432871
$19,94 Unit Price incl. VAT
22
BUSHING
5431113
$26,45 Unit Price incl. VAT
23
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
24
SPRING COMP REAR Substituted by 7041204-067
7041204119
Not Available
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
26
BOLT(10)
7512531
Not Available
27
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
28
NUT FLEX LOC(10)
7542507
Not Available
29
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
30
STRUT REAR
1580051067
Not Available
31
DECAL HITCH Substituted by 7078261
7072533
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
