1
Engine displacement
650
2
Year
2021
3
Trim
650 MATRYX INDY VR1 137
4
Parts Catalog
SUSPENSION, REAR SHOCK TRACK
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT SHOCK TRACK
by
SHOCK, IFS (7045432)

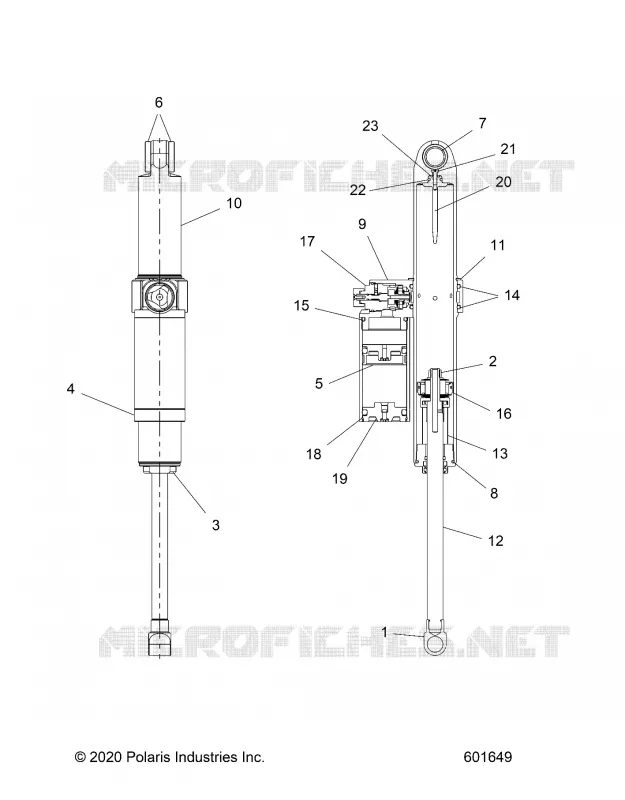

SUSPENSION, REAR SHOCK TRACK
-
12
13
14
15
16
17
17
17
17
18
19
20
21
22
23
-
SHOCK-RTS W/E VELOCITY PIGGYBK [INCL. 1-23]
7045431
$981,74 Unit Price incl. VAT
1
LOOP SHAFT
1800096
$194,24 Unit Price incl. VAT
2
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
3
ASM-SEAL HEAD BLUE
1801154
$251,99 Unit Price incl. VAT
4
BODY RES. 4.125L ANO HARD CLEAR
1801011
$178,49 Unit Price incl. VAT
5
PISTON IFP
1800739
$68,24 Unit Price incl. VAT
6
BUSHING
1800406
$9,44 Unit Price incl. VAT
7
SLEEVE
1800405
$62,99 Unit Price incl. VAT
8
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
9
WRENCH-8MMX10MM OPEN END
Not Available
10
BODY-MIDMNT MONO BLK
1801023
$278,24 Unit Price incl. VAT
11
RING-RET. EXT.
1801024
$16,79 Unit Price incl. VAT
12
SHAFT-5/8X9.15L CHR
1801025
$220,49 Unit Price incl. VAT
13
SPACER-1.450L
1801155
$120,74 Unit Price incl. VAT
14
O-RING-BUNA 2-224
1801028
$9,44 Unit Price incl. VAT
15
O-RING -110
1801030
$18,89 Unit Price incl. VAT
16
ASM-PISTON 7045431
1801156
$335,99 Unit Price incl. VAT
17
KNOB
1801053
$73,49 Unit Price incl. VAT
17
ASM. ADJUSTER HS-LS [ADJUSTER ASSEMBLY]
1801021
$157,49 Unit Price incl. VAT
17
SCREW-4-40X.375 SS
1800738
$2,09 Unit Price incl. VAT
17
BODY MONOTUBE CO 2.0 x 14.285L Hard CLEAR
1800860
$456,74 Unit Price incl. VAT
18
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$15,74 Unit Price incl. VAT
19
ASM-END CAP 2.0
1801006
$178,49 Unit Price incl. VAT
20
NEEDLE-PRESS IN
1801027
$73,49 Unit Price incl. VAT
21
#8-32 X .500 LOW HEAD SCREW
1800843
$9,44 Unit Price incl. VAT
22
0-RING 5MM ID X 2MM 1600073
1801031
$3,14 Unit Price incl. VAT
23
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
