1
Engine displacement
0
2
Year
1993
3
Trim
XLT - 0930767
4
Parts Catalog

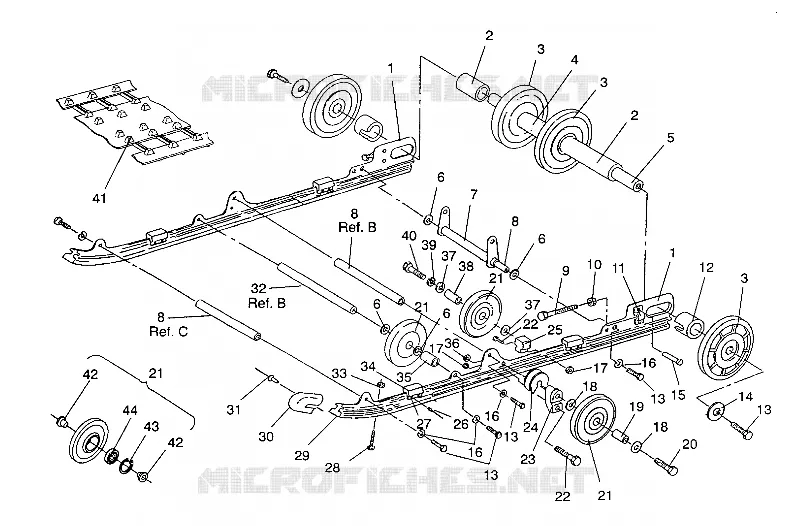

SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)
by
SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)
SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A)
1
RAIL ASM RH
1540725
Not Available
1
RAIL ASM LH
1540724
Not Available
2
SPACER INNER IDLER
5010169
Not Available
3
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
4
SPACER CTR IDLER
5010168
Not Available
5
SHAFT REAR IDLER Substituted by 5020722
5020395
Not Available
6
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
7
ARM R.PIVOT BLK.
1540721067
Not Available
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
5020723
$47,24 Unit Price incl. VAT
9
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
Not Available
13
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
14
WASHER FLAT(10)
7555732
Not Available
15
RIVET
7621501
$4,19 Unit Price incl. VAT
16
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
17
Nut
7542403
Not Available
18
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
19
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
20
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
21
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
22
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
23
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
24
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
25
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
26
RIVET
7621476
$2,09 Unit Price incl. VAT
27
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
28
SCREW
7512227
$6,29 Unit Price incl. VAT
29
SLIDER BLK. Substituted by 5521320
5521296
Not Available
30
COVER RAIL TIP Substituted by 5433005
5431421
Not Available
31
RIVET
7621435
$2,09 Unit Price incl. VAT
32
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$47,24 Unit Price incl. VAT
33
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
34
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
35
SPACER OUTER
5332784
Not Available
36
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
37
WASHER
7555804
$7,34 Unit Price incl. VAT
38
SPACER
5332786
$13,64 Unit Price incl. VAT
39
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
40
SCREW
7512659
$13,64 Unit Price incl. VAT
41
TRACK BLOCK
5410736
Not Available
42
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
43
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
44
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
