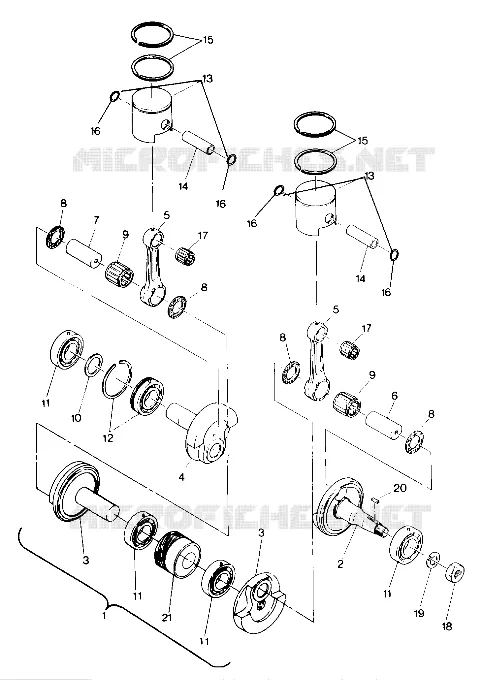

PISTON AND CRANKSHAFT WIDETRAK (4919301930027A)

1

CRANKSHAFT ASM. Substituted by 3084360 (Incl. 2-11 21)

3083794

Not Available

2

CRANKSHAFT #1

3083362

Not Available

3

CRANKSHAFT 2 (Incl. 6)

3083713

$806,39 Unit Price incl. VAT

4

CRANKSHAFT #3 Substituted by 3084357

3083364

Not Available

5

ROD-CONNECTING

3083252

$236,24 Unit Price incl. VAT

6

PIN CRANK

3083233

Not Available

7

CRANK PIN 2

3083456

$57,74 Unit Price incl. VAT

8

SPACER CRANK PIN

3083277

$27,29 Unit Price incl. VAT

9

BEARING-LARGE END Substituted by 3085628

3083255

$54,59 Unit Price incl. VAT

10

SPACER CRANKSHAFT

3080447

$3,24 Unit Price incl. VAT

11

BEARING BALL Substituted by 3084586

3083480

$60,89 Unit Price incl. VAT

12

BALL BEARING C-4

3083714

Not Available

13

PISTON .010 O/S (.010 Over) (Incl. 16)

3083943

Not Available

13

PISTON .020 O/S (.020 Over) (Incl. 16)

3083944

Not Available

13

PISTON * (Standard) (Incl. 16)

3083942

Not Available

14

PIN PISTON

3083838

$356,99 Unit Price incl. VAT

15

RING PISTON .010 O/S (.010 Over)

3083970

Not Available

15

RING PISTON .020 O/S (.020 Over)

3083971

Not Available

15

RING PISTON STD. (Standard)

3083963

Not Available

16

CLIP PISTON PIN (10)

3083839

$7,34 Unit Price incl. VAT

17

BEARING END SMALL

3083216

$25,71 Unit Price incl. VAT

18

NUT

3083093

$7,34 Unit Price incl. VAT

19

WASHER SPRING

3083094

$6,29 Unit Price incl. VAT

20

KEY

3081447

Not Available

21

GEAR DRIVE OIL PUMP

3083782

$150,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
