1
Engine displacement
250
2
Year
1993
3
Trim
250 2X4 - W937527
4
Parts Catalog

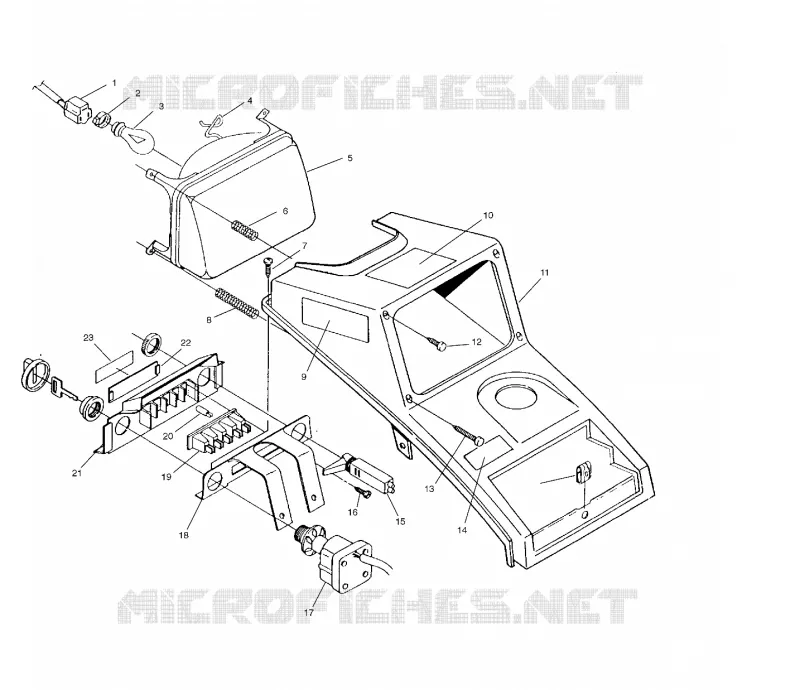

HEADLIGHT ASSEMBLY
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY
by
STEERING POST ASSEMBLY
HEADLIGHT ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
1
HARNESS HEADLIGHT
2460427
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
RETAINER H/L BULB
4032063
Not Available
5
H/L ASM W/BULBSEAL
4032065
Not Available
6
SPRING-ADJ
4032002
Not Available
7
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
8
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
9
DECAL #250#
7073795
Not Available
10
DECAL CERTIF. ATV Substituted by 7075909
7073464
Not Available
11
COVER OIL-H/L BON.BLUE
5430973157
Not Available
12
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
13
SCREW ADJUST (ATV)(10)
4032042
Not Available
14
LABEL #U.S.A.#
7073024
Not Available
15
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
15
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
16
Screw
7511862
Not Available
17
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
18
BRKT IGN. PANEL
5220965067
Not Available
19
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
20
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
21
PANEL IGNITION
5430995
Not Available
22
LENS ASM PILOT LIGHT
2652049
Not Available
23
DECAL PANEL [No Longer Available]
7072528
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
