1
Engine displacement
570
2
Year
2018
3
Trim
ACE 570
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS
by
CAM CHAIN AND SPROCKET

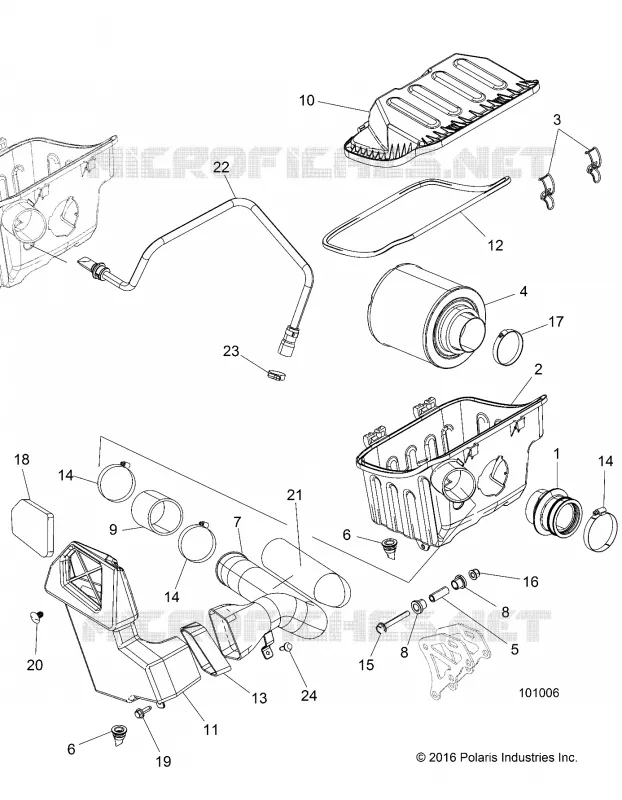

ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
1
BOOT ENGINE INTAKE
5414973
5417998
$83,99 Unit Price incl. VAT
2
BOX AIR INTAKE
5450495
$257,24 Unit Price incl. VAT
3
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
4
FILTER-AIR
7082037
$48,71 Unit Price incl. VAT
5
SHAFT-COMPRESSION LMTR 34.4MM
5138987
$31,49 Unit Price incl. VAT
6
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
7
DUCT INTAKE
5452665
$89,24 Unit Price incl. VAT
8
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
9
HOSE INTAKE
5414582
$62,99 Unit Price incl. VAT
10
COVER-AIRBOX
5450175
$47,24 Unit Price incl. VAT
11
BOX-INTAKE ENGINE RH
5450728
$178,49 Unit Price incl. VAT
12
SEAL-AIR BOX COVER
5814106
$20,99 Unit Price incl. VAT
13
SEAL FOAM
5814033
$20,99 Unit Price incl. VAT
14
CLAMP-HOSE 70MM DIA. WORM GEAR
7081623
$5,76 Unit Price incl. VAT
15
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
16
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
17
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
18
FILTER INTAKE FOAM
5814026
$26,24 Unit Price incl. VAT
19
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
20
CLIP-PLASTIC DART NYLON
7670088
$3,14 Unit Price incl. VAT
21
SHIELD-SLEEVE
5814546
Not Available
22
HOSE BREATHER
5415578
$125,99 Unit Price incl. VAT
23
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
24
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for ACE 570

FUEL TANK

FUEL TANK

for ACE 570 from 2018

REAR BODYWORK RACK AND FENDERS

REAR BODYWORK RACK AND FENDERS

for ACE 570 from 2018

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for ACE 570 from 2018

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

for ACE 570 from 2018

CHASSIS, CAB FRAME AND SIDE BARS

CHASSIS, CAB FRAME AND SIDE BARS

for ACE 570 from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for ACE 570 from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for ACE 570 from 2018

ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS

ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS

for ACE 570 from 2018

BUMPER, FRONT

BUMPER, FRONT

for ACE 570 from 2018

BODYWORK

BODYWORK

for ACE 570 from 2018

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for ACE 570 from 2018

BRAKES, FRONT BRAKE CALIPER

BRAKES, FRONT BRAKE CALIPER

for ACE 570 from 2018

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for ACE 570 from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for ACE 570 from 2018

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

for ACE 570 from 2018

ELECTRICAL, IGNITION

ELECTRICAL, IGNITION

for ACE 570 from 2018

CRANKCASE

CRANKCASE

for ACE 570 from 2018

CYLINDER

CYLINDER

for ACE 570 from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for ACE 570 from 2018

STARTER DRIVE

STARTER DRIVE

for ACE 570 from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for ACE 570 from 2018

REFERENCES, TOOL KIT AND OWNERS MANUAL

REFERENCES, TOOL KIT AND OWNERS MANUAL

for ACE 570 from 2018

SUSPENSION, REAR STABILIZER BAR

SUSPENSION, REAR STABILIZER BAR

for ACE 570 from 2018

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for ACE 570 from 2018

ENGINE, BREATHER

ENGINE, BREATHER

for ACE 570 from 2018

ELECTRICAL, SENSORS

ELECTRICAL, SENSORS

for ACE 570 from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for ACE 570 from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for ACE 570 from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for ACE 570 from 2018

LONG BLOCK

LONG BLOCK

for ACE 570 from 2018

OIL PUMP

OIL PUMP

for ACE 570 from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for ACE 570 from 2018

STEERING

STEERING

for ACE 570 from 2018

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for ACE 570 from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for ACE 570 from 2018

SEAT ASM.

SEAT ASM.

for ACE 570 from 2018

BODY, STEERING BOOT

BODY, STEERING BOOT

for ACE 570 from 2018

BRAKES, BRAKE LINES AND MASTER CYLINDER

BRAKES, BRAKE LINES AND MASTER CYLINDER

for ACE 570 from 2018

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for ACE 570 from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for ACE 570 from 2018

ENGINE, ENGINE AND TRANSMISSION MOUNTING

ENGINE, ENGINE AND TRANSMISSION MOUNTING

for ACE 570 from 2018

ENGINE, EXHAUST SYSTEM SHIELDS

ENGINE, EXHAUST SYSTEM SHIELDS

for ACE 570 from 2018

ENGINE, FUEL INJECTOR 2521068 O-RINGS

ENGINE, FUEL INJECTOR 2521068 O-RINGS

for ACE 570 from 2018

FRONT SUSPENSION

FRONT SUSPENSION

for ACE 570 from 2018

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT SHOCK MOUNTING

for ACE 570 from 2018

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for ACE 570 from 2018

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR SHOCK MOUNTING

for ACE 570 from 2018

SUSPENSION, FRONT STABILIZER BAR

SUSPENSION, FRONT STABILIZER BAR

for ACE 570 from 2018

BUMPER, REAR

BUMPER, REAR

for ACE 570 from 2018

DECALS

DECALS

for ACE 570 from 2018

DOORSS

DOORSS

for ACE 570 from 2018

FLOOR AND ROCKER PANELS

FLOOR AND ROCKER PANELS

for ACE 570 from 2018

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for ACE 570 from 2018

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for ACE 570 from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for ACE 570 from 2018

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

for ACE 570 from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for ACE 570 from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for ACE 570 from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for ACE 570 from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for ACE 570 from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for ACE 570 from 2018

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for ACE 570 from 2018

WHEELS, REAR

WHEELS, REAR

for ACE 570 from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for ACE 570 from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for ACE 570 from 2018

ENGINE, EXHAUST SYSTEM

ENGINE, EXHAUST SYSTEM

for ACE 570 from 2018

SEAT MOUNTING AND BELT

SEAT MOUNTING AND BELT

for ACE 570 from 2018

MUD GUARD

MUD GUARD

for ACE 570 from 2018

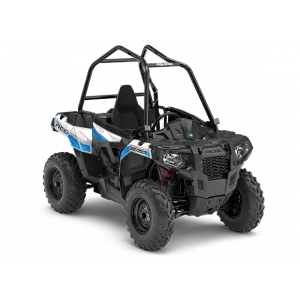

POLARIS ACE 570 2018
