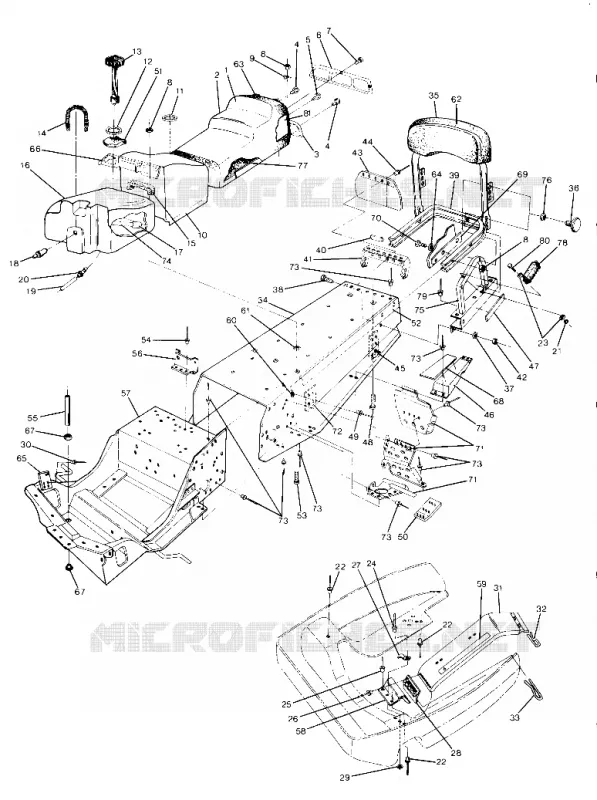

CHASSIS AND SEAT TRAIL DELUXE UPDATED 10/88 (4915441544003A) FOR TRAIL DELUXE

CHASSIS AND SEAT TRAIL (4915441544001A)

STEERING TRAIL (4915441544011A)

SEAT ASM TRL.DEL. Substituted by 2200749 (Incl. 2-7 63 77)

2681390

Not Available

COVER SEAT Substituted by 2200740

2681391

Not Available

HOUSING TAILLIGHT

5430425

Not Available

BULB TAILLIGHT(10)

4030015

$8,39 Unit Price incl. VAT

BULB BRAKELIGHT

4030019

Not Available

LENS TAILLIGHT

5430423

Not Available

SCREW(10)

7511840

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

WASHER-.270X1.25X.060 FL-Y

7558221

$4,19 Unit Price incl. VAT

COVER TANK [No Longer Available]

2681369

Not Available

GROMMET-GAS TANK

5430575

Not Available

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

$15,74 Unit Price incl. VAT

GAUGE GAS Substituted by 2511246

2511149

2511246

$83,99 Unit Price incl. VAT

SPRING TANK FRONT

7042020

$27,29 Unit Price incl. VAT

CUSHION TANK H.D.

5420126

Not Available

TANK GAS (Incl. 19-22)

2511150

Not Available

FUELPICKUP W/STRAINER

7052037

7052301

$26,24 Unit Price incl. VAT

FITTING OUTLET DOUBLE

7052023

$36,74 Unit Price incl. VAT

KIT-TANK VENT

2200190

Not Available

VENT FITTING TANK Substituted by 5430579

5430669

Not Available

NUT LOCK(10) Substituted by 7541925

7541929

7541925

$1,56 Unit Price incl. VAT

RIVET-POP3/16(.251-.375)AL-LFB

7621457

$2,09 Unit Price incl. VAT

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$2,09 Unit Price incl. VAT

RIVET(50)

7621452

$2,09 Unit Price incl. VAT

RIVET

7621330

$2,09 Unit Price incl. VAT

CLIP WIRING (10) Substituted by 7080665

4020035

Not Available

HINGE (TRAIL)

5211047

Not Available

WASHER FLAT

7558212

$1,56 Unit Price incl. VAT

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

GUARD CLUTCH Substituted by 5240965

5230118

Not Available

PIN RETAINING (10)

7080216

7080698

$17,84 Unit Price incl. VAT

PIN FRONT (TRAIL)

7080311

Not Available

TUNNEL TRAIL DELUXE

1011680

Not Available

BACKREST ASM. [No Longer Available]

2681333

Not Available

KNOB ADJ. Substituted by 2670130

7030007

Not Available

WASHER-.312 X .734 X .065-Z

7558302

$3,14 Unit Price incl. VAT

SCR-HH-5/16-18X0.75 GR5 ZY3 NY

7512325

$4,19 Unit Price incl. VAT

BUMPER REAR Substituted by 5224334-067

5224334

Not Available

DECAL TRACK Substituted by 7072872

7072132

Not Available

PANEL TUNNEL BACK Substituted by 5220478-067

5220478

Not Available

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

5410394-1038

$194,24 Unit Price incl. VAT

POP RIVET(50)

7621418

$2,09 Unit Price incl. VAT

BRKT R.SUSP LH MTG. Substituted by 1011749-067

1011666

Not Available

BRKT R.SUSP RH MTG. Substituted by 1011750-067

1011667

Not Available

FOOTREST RH REAR

5220894

$51,54 Unit Price incl. VAT

FOOTREST LH REAR

5220893

Not Available

REFLECTOR RED

2670070

$15,95 Unit Price incl. VAT

SCREW(10)

7512116

Not Available

RIVET(50)

7621222

$1,04 Unit Price incl. VAT

PLATE TUNNEL RH

5220635

Not Available

PLATE TUNNEL LH

5220634

Not Available

FOAM FILLER

5810201

Not Available

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Not Available

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

$4,19 Unit Price incl. VAT

RIVET(50)

7621301

Not Available

TUBE BATT.DRAIN Substituted by 5332405

5332893

Not Available

BRACKET Substituted by 5221932-067

5221932

Not Available

BULKHEAD Substituted by 1011612

1011673

Not Available

BRACKET HINGE Substituted by 5241437

5220406

Not Available

DECAL WARNING [No Longer Available] (600 SE)

7072153

Not Available

SNAP-MALE(10)

7080227

Not Available

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

COVER BACKREST [No Longer Available]

2681332

Not Available

BUCKLE&STRAP (Trail)

2681291

Not Available

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Not Available

STRAP GAS TANK Substituted by 5222330-067

5221722

Not Available

PALNUT(10) (Twin ES)

7670031

Not Available

PAD LH FOOT SAFETY

5830007

$10,70 Unit Price incl. VAT

PAD RH FOOT SAFETY

5830008

Not Available

SPACER R.BUMPER [No Longer Available]

5211109

Not Available

BOLT(10)

7512240

$7,34 Unit Price incl. VAT

FOOTREST ASM LH

2200250

Not Available

FOOTREST ASM RH

2200254

Not Available

BRKT. Substituted by 5220542-067

5220542

Not Available

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

$136,49 Unit Price incl. VAT

GRABBAR RH Substituted by 1011730-067

1011697

Not Available

GRABBAR LH Substituted by 1011729-067

1011696

Not Available

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$3,14 Unit Price incl. VAT

SEAT BUN [No Longer Available]

5430927

Not Available

GRIP HAND Substituted by 5433383

5431015

Not Available

RIVET CH. Q

7621429

$2,09 Unit Price incl. VAT

SCREW-#10-24X1.5 TRX/PN MC-Y

7510504

$10,49 Unit Price incl. VAT

BOX TOOL (2-UP SEAT) Substituted by 5431345

5430925

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
