1
Engine displacement
700
2
Year
2008
3
Trim
RANGER 4X4 700 EFI/XP ALL OPTIONS - R08RH68
4
Parts Catalog

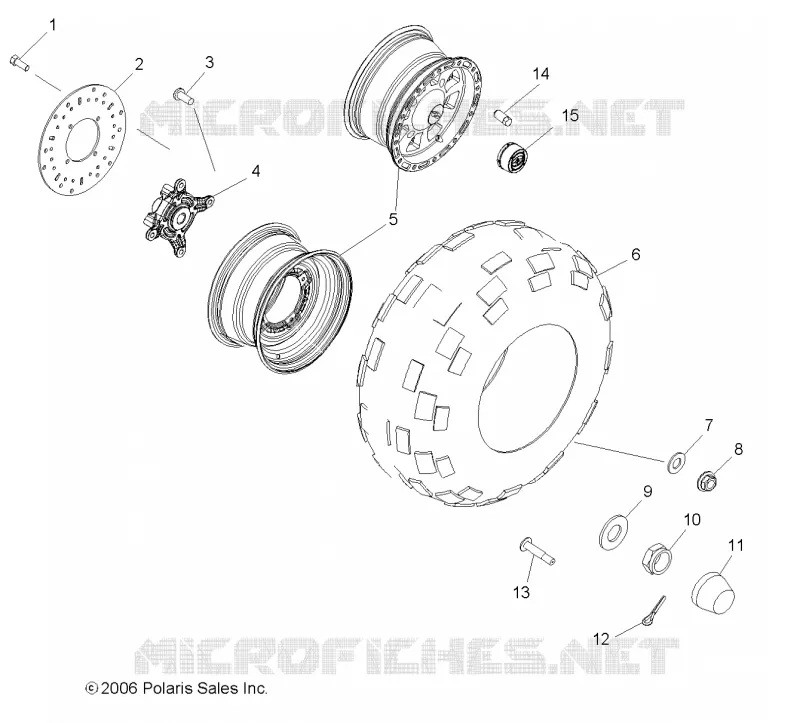

WHEELS, FRONT
5
Parts Diagram
Parts Catalog
MANUALS INFORMATION
by
WHEELS, REAR
WHEELS, FRONT
15
1
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
2
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
3
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
3
STUD(10)
7515513
$2,09 Unit Price incl. VAT
4
HUB WHEEL
5135207
$167,99 Unit Price incl. VAT
5
Rim Front Alum. [AW]
1521126
Not Available
5
RIM-FR 12X6 CAST 16.2 (199)BLK
1521252067
$329,69 Unit Price incl. VAT
5
Rim Front Cast Alum. [AK][AP]
1521252
$329,69 Unit Price incl. VAT
5
Rim Front Flat Black [AS]
1520796463
Not Available
5
WELD-RIM FRONT 12X6 10GA BLK
1520796067
1523451-067
$168,30 Unit Price incl. VAT
5
Rim Front (AB)(If built after 1/19/04)
1520796455
Not Available
6
TIRE FRONT 26X8-12 PXT
5412686
5419047
$269,84 Unit Price incl. VAT
6
Tire Front 26x9x14 [AJ][AO]
5413409
Not Available
6
Tire Front 26x9R12 [AS]
5413334
5419048
$306,38 Unit Price incl. VAT
7
WASHER-.385X.88X.075 FL-Y THR
7556242
$4,19 Unit Price incl. VAT
8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
9
WASHER
7556004
$13,64 Unit Price incl. VAT
10
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
11
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
12
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
13
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
14
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
15
Cap Rim
1521128
$35,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
