1
Engine displacement
550
2
Year
2005
3
Trim
550 TRAIL RMK 136 F/O
4
Parts Catalog
PISTON CRANKSHAFT
5

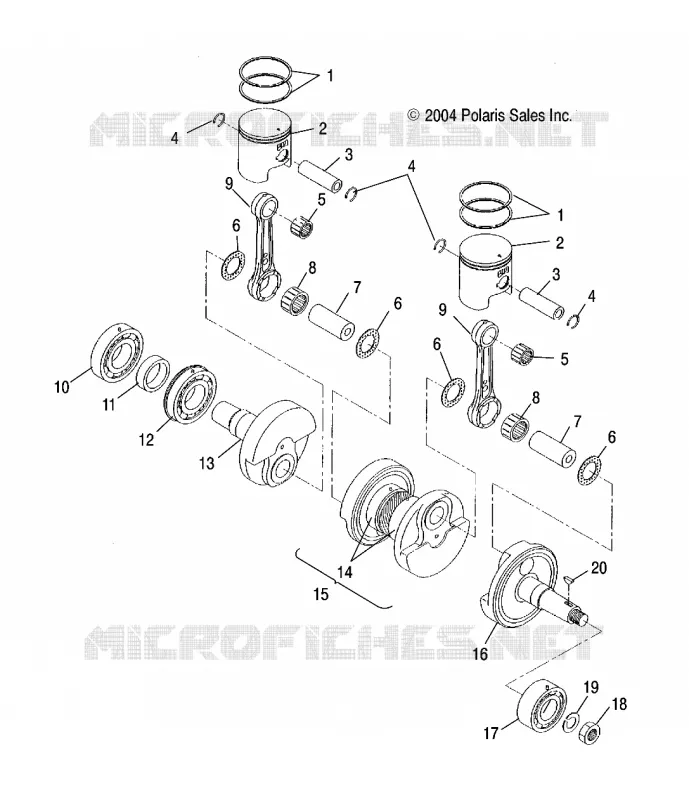

Parts Diagram
Parts Catalog
OIL TANK/AIR BOX
by
BLOWER HOUSING RECOIL STARTER
PISTON CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
1
RING-PISTON(STD) (Standard)
3086988
Not Available
1
RING-PISTON(0.50 O/S) (0.50mm/.020#O/S)
3086990
$47,24 Unit Price incl. VAT
1
RING-PISTON(0.25 O/S) (0.25mm/.010#O/S)
3086989
Not Available
2
Piston Set .50 O/S [Incl. 1]
3089487
$216,29 Unit Price incl. VAT
2
Piston Set .25 O/S [Incl. 1]
3089486
Not Available
2
Piston Set Standard [Incl. 1]
3089485
Not Available
3
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
4
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
5
Bearing End Small
3085595
3515064
$25,71 Unit Price incl. VAT
6
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
7
CRANK PIN 2
3083456
5141629
$57,74 Unit Price incl. VAT
8
BEARING END LARGE
3086390
$2 351,99 Unit Price incl. VAT
9
ROD CONNECTING
3240083
$2 351,99 Unit Price incl. VAT
10
BEARING BALL
3085754
3515059
$88,19 Unit Price incl. VAT
11
SPACER
3085677
5143730
$23,09 Unit Price incl. VAT
12
BEARING BALL
3085753
3515060
$88,19 Unit Price incl. VAT
13
CRANKSHAFT 3 PTO SIDE
3089484
$614,24 Unit Price incl. VAT
14
BEARING BALL
3084586
3515063
$60,89 Unit Price incl. VAT
15
CRANKSHAFT 2 CENTER [INCL. 7]
3085674
$1 044,74 Unit Price incl. VAT
16
Asm. Crankshaft [Incl. 5-13 15 16 19 20]
3089483
$2 530,49 Unit Price incl. VAT
16
CRANKSHAFT 1 MAG SIDE
3087177
$797,99 Unit Price incl. VAT
17
BEARING BALL
3084681
3515061
$141,74 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
20
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
