1
Engine displacement
925
2
Year
2018
3
Trim
rzr-xp-turbo
4
Parts Catalog
REAR SUSPENSION SHOCK (TO 2/12/2018)
5

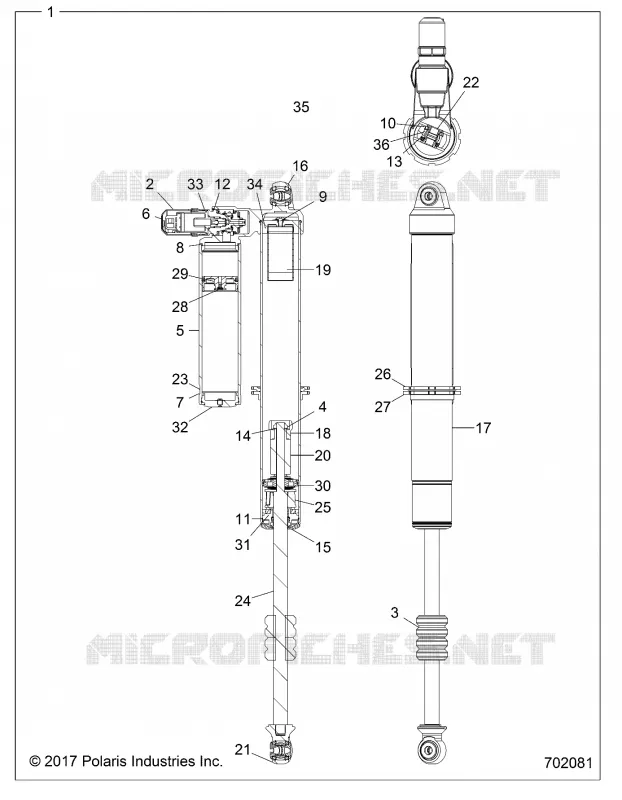

Parts Diagram
Parts Catalog
REAR SUSPENSION SHOCK
by
REAR SUSPENSION SHOCK MOUNTING
REAR SUSPENSION SHOCK (TO 2/12/2018)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
5
31
32
33
34
34
35
36
1
2
2
2
3
4
4
4
5
5
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
1
SHOCK-REAR FOXLIVE RH [BK][TO 2/12/2018]
7044774
$2 399,24 Unit Price incl. VAT
1
SHOCK-REAR FOXLIVE LH [BK][TO 2/12/2018]
7044773
$2 399,24 Unit Price incl. VAT
2
COVER - LIVE VALVE
1501290
$62,99 Unit Price incl. VAT
3
BUMPER B/O SHAFT
1501028
$47,24 Unit Price incl. VAT
4
FASTENER STANDARD: NUT LOCK [1/2-20 X 0.313 TLG]
1500842
1500472
$41,99 Unit Price incl. VAT
6
DECAL - IRD CVR LIVE
1501272
$20,99 Unit Price incl. VAT
7
DECAL - BAND
1501273
$24,14 Unit Price incl. VAT
8
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD N-70 STATIC
1501048
$14,69 Unit Price incl. VAT
9
SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD N-70 STATIC
1501049
$14,69 Unit Price incl. VAT
10
SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD N-70 STATIC
1501050
$14,16 Unit Price incl. VAT
11
WIRE RETAINING RING
1500960
$5,99 Unit Price incl. VAT
12
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
$26,24 Unit Price incl. VAT
13
RING RET. WIRE SS
1501292
$8,39 Unit Price incl. VAT
14
PLATE - B. U. T.O.
1501293
$13,64 Unit Price incl. VAT
15
Bearing Cap: [Ø 2.250 Bore .Ø 0.875 Shaft] No Scraper Press-in Clear Ano II
1501053
$52,49 Unit Price incl. VAT
16
BODY CAP HIFLO 67.5 [USED IN 7045152]
1501294
$335,99 Unit Price incl. VAT
16
BODY CAP HIFL 157.5
1501295
$299,24 Unit Price incl. VAT
17
BODY - 2.25 X 18.8
1501296
$451,49 Unit Price incl. VAT
18
PISTON - PS DAMP.
1501297
$52,49 Unit Price incl. VAT
19
TUBE - BOT. OUT CUP
1501298
$104,99 Unit Price incl. VAT
20
SPACER - PISTON PS
1501299
Not Available
21
EYELET - BLK
1501300
$136,49 Unit Price incl. VAT
22
EYELET PARTS: (T) REDUCER [0.560 TLG .476 THRU HOLE] COM 10 SPHERICAL SLIP FI
1501076
$62,99 Unit Price incl. VAT
23
RESEVOIR 10.0 TLG BLK
1501175
$519,74 Unit Price incl. VAT
24
SHAFT - 0875 X 19.4 TLG
1501301
$325,49 Unit Price incl. VAT
25
SPACER - SHAFT NYLON
1501302
$52,49 Unit Price incl. VAT
26
RING - PRELOAD B/U
1501285
$47,24 Unit Price incl. VAT
27
RING - PRELOAD
1501286
$47,24 Unit Price incl. VAT
28
SCREW - BLACK RES.
1501303
$47,24 Unit Price incl. VAT
29
PISTON ASSEMBLY: FLOATING [Ø2.25 BORE] W/ STD. TEMP O-RING MAX VOL. BLEED AND
1501060
$120,74 Unit Price incl. VAT
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
ASM - BRNG DUAL SEAL
1501304
$178,49 Unit Price incl. VAT
32
RESERVOIR END CAP ASSEMBLY: [Ø 2.250 BORE .940 TLG] PELLET FILL ALUMINUM BLAC
1501063
$188,99 Unit Price incl. VAT
33
ADJUSTER - DSC HIFLO
1501288
$803,24 Unit Price incl. VAT
34
CUP BASE
1501305
$114,44 Unit Price incl. VAT
34
CUP BASE
1501289
$104,99 Unit Price incl. VAT
35
K - REBUILD 2.5
1501291
$167,99 Unit Price incl. VAT
36
BEARING: SPHERICAL [Ø 0.625 BORE X Ø 1.1875 OD] COM 10 BK LINER CCVI
1501044
$101,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR XP TURBO

BODY, FUEL PFA COVER

BODY, FUEL PFA COVER

for RZR XP TURBO from 2018

HOOD & FRONT BODY WORK

HOOD & FRONT BODY WORK

for RZR XP TURBO from 2018

REAR BUMPER

REAR BUMPER

for RZR XP TURBO from 2018

REAR RACK AND FENDERS

REAR RACK AND FENDERS

for RZR XP TURBO from 2018

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR XP TURBO from 2018

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR XP TURBO from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR XP TURBO from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR XP TURBO from 2018

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for RZR XP TURBO from 2018

COOLING, AUX. SYSTEM

COOLING, AUX. SYSTEM

for RZR XP TURBO from 2018

CRANKCASE

CRANKCASE

for RZR XP TURBO from 2018

ENGINE, CRANKSHAFT AND BEARINGS

ENGINE, CRANKSHAFT AND BEARINGS

for RZR XP TURBO from 2018

CYLINDER AND PISTON

CYLINDER AND PISTON

for RZR XP TURBO from 2018

OWNERS MANUAL AND TOOL KIT

OWNERS MANUAL AND TOOL KIT

for RZR XP TURBO from 2018

STEERING

STEERING

for RZR XP TURBO from 2018

FRONT SUSPENSION CARRIER AND HUB

FRONT SUSPENSION CARRIER AND HUB

for RZR XP TURBO from 2018

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR XP TURBO from 2018

WHEELS, REAR

WHEELS, REAR

for RZR XP TURBO from 2018

REAR SUSPENSION SHOCK (FROM 2/12/2018)

REAR SUSPENSION SHOCK (FROM 2/12/2018)

for RZR XP TURBO from 2018

FRONT BUMPER

FRONT BUMPER

for RZR XP TURBO from 2018

PASSENGER GRAB BAR

PASSENGER GRAB BAR

for RZR XP TURBO from 2018

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR XP TURBO from 2018

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR XP TURBO from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR XP TURBO from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR XP TURBO from 2018

BATTERY

BATTERY

for RZR XP TURBO from 2018

ELECTRICAL, INSTRUMENTS & CONTROLS

ELECTRICAL, INSTRUMENTS & CONTROLS

for RZR XP TURBO from 2018

ENGINE, AIR INTAKE MANIFOLD

ENGINE, AIR INTAKE MANIFOLD

for RZR XP TURBO from 2018

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RZR XP TURBO from 2018

DIPSTICK & OIL FILTER

DIPSTICK & OIL FILTER

for RZR XP TURBO from 2018

ENGINE, MOUNTING

ENGINE, MOUNTING

for RZR XP TURBO from 2018

ENGINE, TURBO CHARGER

ENGINE, TURBO CHARGER

for RZR XP TURBO from 2018

ENGINE, WATERPUMP AND BYPASS

ENGINE, WATERPUMP AND BYPASS

for RZR XP TURBO from 2018

FRONT SUSPENSION SHOCK

FRONT SUSPENSION SHOCK

for RZR XP TURBO from 2018

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR XP TURBO from 2018

STABILIZER BAR, REAR

STABILIZER BAR, REAR

for RZR XP TURBO from 2018

DOORS

DOORS

for RZR XP TURBO from 2018

FRONT SUSPENSION SHOCK

FRONT SUSPENSION SHOCK

for RZR XP TURBO from 2018

FLOOR & ROCKER PANELS

FLOOR & ROCKER PANELS

for RZR XP TURBO from 2018

FUEL TANK

FUEL TANK

for RZR XP TURBO from 2018

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for RZR XP TURBO from 2018

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR XP TURBO from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RZR XP TURBO from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR XP TURBO from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR XP TURBO from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR XP TURBO from 2018

ELECTRICAL, INSTRUMENTS & CONTROLS

ELECTRICAL, INSTRUMENTS & CONTROLS

for RZR XP TURBO from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR XP TURBO from 2018

COOLING SYSTEM

COOLING SYSTEM

for RZR XP TURBO from 2018

CYLINDER HEAD AND VALVES

CYLINDER HEAD AND VALVES

for RZR XP TURBO from 2018

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR XP TURBO from 2018

OIL PAN

OIL PAN

for RZR XP TURBO from 2018

THROTTLE PEDAL

THROTTLE PEDAL

for RZR XP TURBO from 2018

ENGINE, TURBO CHARGER MOUNTING

ENGINE, TURBO CHARGER MOUNTING

for RZR XP TURBO from 2018

FRONT SUSPENSION SHOCK (TO 2/12/2018)

FRONT SUSPENSION SHOCK (TO 2/12/2018)

for RZR XP TURBO from 2018

STABILIZER BAR, FRONT

STABILIZER BAR, FRONT

for RZR XP TURBO from 2018

WHEELS, FRONT

WHEELS, FRONT

for RZR XP TURBO from 2018

REAR SUSPENSION SHOCK

REAR SUSPENSION SHOCK

for RZR XP TURBO from 2018

FRONT SUSPENSION SHOCK (FROM 2/12/2018)

FRONT SUSPENSION SHOCK (FROM 2/12/2018)

for RZR XP TURBO from 2018

DASHBOARD & GLOVEBOX

DASHBOARD & GLOVEBOX

for RZR XP TURBO from 2018

DECALSS

DECALSS

for RZR XP TURBO from 2018

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RZR XP TURBO from 2018

CHASSIS, CAB

CHASSIS, CAB

for RZR XP TURBO from 2018

CHASSIS, MAIN FRAME AND SKID PLATES

CHASSIS, MAIN FRAME AND SKID PLATES

for RZR XP TURBO from 2018

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR XP TURBO from 2018

ECU / REGULATOR

ECU / REGULATOR

for RZR XP TURBO from 2018

HEADLIGHTS AND TAILLIGHTS

HEADLIGHTS AND TAILLIGHTS

for RZR XP TURBO from 2018

WIRE HARNESS, REG, ECU

WIRE HARNESS, REG, ECU

for RZR XP TURBO from 2018

WIRE HARNESS

WIRE HARNESS

for RZR XP TURBO from 2018

OIL PUMP

OIL PUMP

for RZR XP TURBO from 2018

STARTER

STARTER

for RZR XP TURBO from 2018

ENGINE, STATOR AND FLYWHEEL

ENGINE, STATOR AND FLYWHEEL

for RZR XP TURBO from 2018

THROTTLE BODY AND VALVE COVER

THROTTLE BODY AND VALVE COVER

for RZR XP TURBO from 2018

REAR SUSPENSION CARRIER AND HUB

REAR SUSPENSION CARRIER AND HUB

for RZR XP TURBO from 2018

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR XP TURBO from 2018

REAR SUSPENSION SHOCK

REAR SUSPENSION SHOCK

for RZR XP TURBO from 2018

REAR SUSPENSION SHOCK (TO 2/12/2018)

REAR SUSPENSION SHOCK (TO 2/12/2018)

for RZR XP TURBO from 2018

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for RZR XP TURBO from 2018

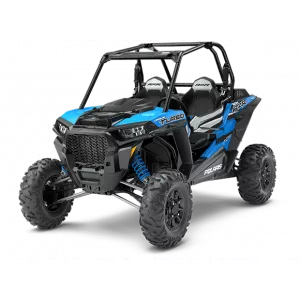

POLARIS RZR XP TURBO 2018
