Parts Catalog

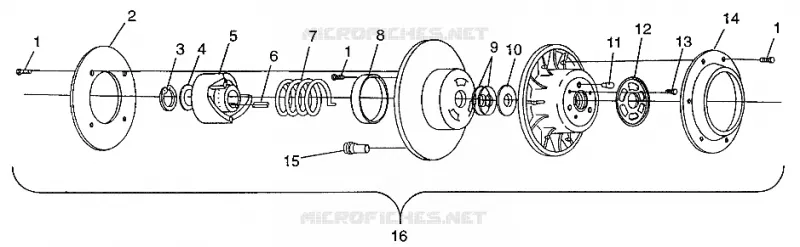

DRIVEN CLUTCH XCF 0971643 (4938613861B014)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH XCF 0971643 (4938613861B013)
by
ENGINE MOUNTING XCF 0971643 (4938613861C001)
DRIVEN CLUTCH XCF 0971643 (4938613861B014)
1
1
1
2
3
4
5
6
7
8
4
4
4
4
10
11
12
13
14
15
16
1
SCREW(10)
7512048
Not Available
2
PLATE (600 600 SE)
5210749
$39,78 Unit Price incl. VAT
3
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
4
Washer .030
7556804
$1,56 Unit Price incl. VAT
5
RAMP DRIVEN 34 DEGREE
5130896
Not Available
6
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
7
SPRING CLUTCH (RED)
7041198
$104,99 Unit Price incl. VAT
8
BUSHING D.U.
3569803
Not Available
9
Washer .030
7556804
$1,56 Unit Price incl. VAT
9
Washer .020
7555898
$2,09 Unit Price incl. VAT
10
WASHER DRIVE CLUTCH(10)
7555865
$11,54 Unit Price incl. VAT
11
PIN CLUTCH
5020653
$52,49 Unit Price incl. VAT
12
CAM DRIVEN ADJUSTABLE
5222878
Not Available
13
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
14
CAP DRIVEN (600 600 SE)
5230101
Not Available
15
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
16
CLUTCH 34DEG.ADJ DRIVEN Substituted by 1321925 (Incl. 1-13)
1322156
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
