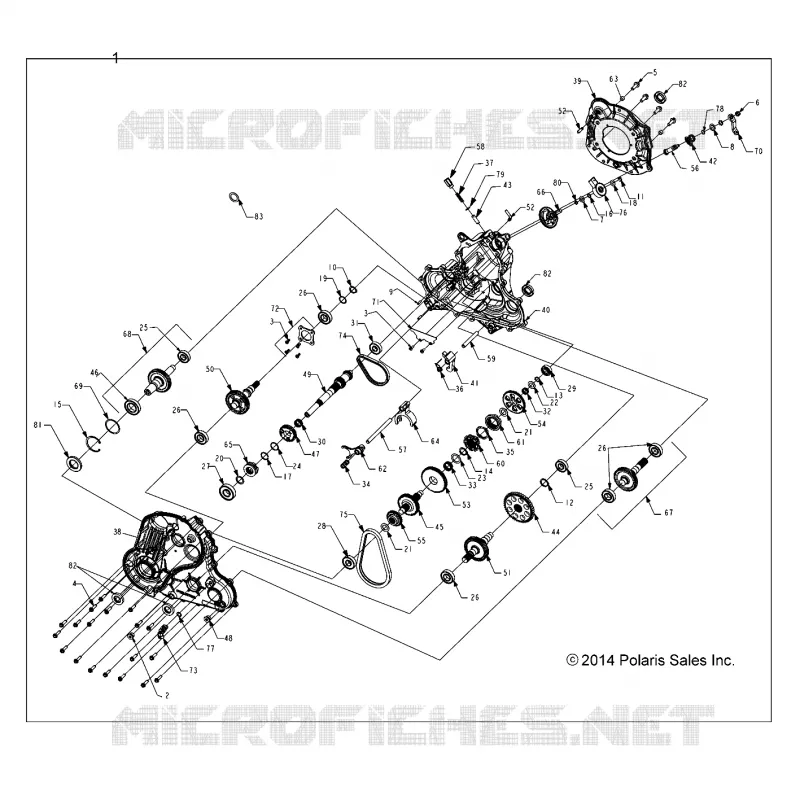

DRIVE TRAIN, MAIN GEARCASE FOR 850 FOREST EU FROM 2015

1

ASM-TRANS 850 BOSS/LUK 1/1 [INCL. ALL]

1333180

$4 866,74 Unit Price incl. VAT

2

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

3

SCREW 6-LOBE PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

4

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

5

SCREW HEX FLANGE HEAD M10 X 1.5 X 30

3234634

$25,19 Unit Price incl. VAT

6

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

7

WASHER THRUST 0.5 X 0.937 X 0.063

3234636

$14,69 Unit Price incl. VAT

8

WASHER THRUST .625 X 1.000 X 0.063

3234637

$20,99 Unit Price incl. VAT

9

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

10

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

11

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

12

RING RETAINING IRR 7200-118

3233699

$13,64 Unit Price incl. VAT

13

RING RETAINING EXTERNAL SHR-66

3234318

$5,76 Unit Price incl. VAT

14

RING RETAINING BASIC EXTERNA

3234327

$13,64 Unit Price incl. VAT

15

RING RETAINING BASIC INTERNAL 62MM

3234741

$17,84 Unit Price incl. VAT

16

RING RETAINING BASIC EXTERNAL SHR-50

3234639

$19,94 Unit Price incl. VAT

17

RING RETAINING EXTERNAL USC-112

3234641

$26,24 Unit Price incl. VAT

18

WASHER THRUST 0.446 X 0.88 X 0.025

3234642

$19,94 Unit Price incl. VAT

19

KIT LUK INPUT SHAFT SHIM PACK

2204343

$54,59 Unit Price incl. VAT

20

WASHER THRUST 1.300 X 0.995 X 0.065

3234248

$17,84 Unit Price incl. VAT

21

SHIM 1.35 OD X 0.818 ID

3234643

$68,24 Unit Price incl. VAT

22

SHIM 1.17 OD X 0.675 ID

3234644

$26,24 Unit Price incl. VAT

23

WASHER THRUST 1.568 OD X .1.110 ID

3234646

$41,99 Unit Price incl. VAT

24

WASHER THRUST Ã¯Â¿Â½ 33 X Ã¯Â¿Â½ 29 X 1.5

3234757

$20,99 Unit Price incl. VAT

25

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

26

BEARING

3233019

$54,59 Unit Price incl. VAT

27

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

28

BEARING BALL 6304 C3 20X52X15

3234651

$27,29 Unit Price incl. VAT

29

BEARING BALL 6203 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

30

BEARING NEEDLE SPLIT CAGE

3234759

$27,29 Unit Price incl. VAT

31

BEARING BALL 6303 17 X 47 X 14

3234652

$27,29 Unit Price incl. VAT

32

BEARING NEEDLE CAGE ASSY 20 X 24 X 10

3234655

$27,29 Unit Price incl. VAT

33

BEARING NEEDLE 28 X 33 X 13

3234656

$27,29 Unit Price incl. VAT

34

SPRING COMPRESSION 0.648 O.D. X 1.33

3234687

$16,79 Unit Price incl. VAT

35

SPRING WAVE 1.60 ID X 0.375

3234688

$19,94 Unit Price incl. VAT

36

SPRING PARK PAWL TORSION

3234787

$52,49 Unit Price incl. VAT

37

SPRING COMPRESSION 0.45 OD X 1.58

3234790

$47,24 Unit Price incl. VAT

38

GEARCASE GTO COVER MACH.

3235507

$1 165,49 Unit Price incl. VAT

39

BELLHOUSING MACH

3235196

$68,24 Unit Price incl. VAT

40

GEARCASE MAIN GTO MACH

3235428

$593,24 Unit Price incl. VAT

41

PAWL PARK

3234692

3239339

$99,74 Unit Price incl. VAT

42

GEAR SECTOR 38T

3234694

$62,99 Unit Price incl. VAT

43

Bullet Detent

3234695

$68,24 Unit Price incl. VAT

44

SPROCKET 44 TOOTH

3234998

$125,99 Unit Price incl. VAT

45

Shaft Reverse 53T

3234774

$367,49 Unit Price incl. VAT

46

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

47

GEAR HELICAL 42T

3235133

$152,24 Unit Price incl. VAT

48

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

49

SHAFT INPUT 25T REM

3235063

$593,24 Unit Price incl. VAT

50

SHAFT INPUT

3235194

$435,74 Unit Price incl. VAT

51

SHAFT OUTPUT REAR

3235505

$771,74 Unit Price incl. VAT

52

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

53

GEAR 67T

3234706

$173,24 Unit Price incl. VAT

54

SPROCKET 48T 6-FACE

3234707

$68,24 Unit Price incl. VAT

55

SPROCKET 23T

3234708

3235544

$73,49 Unit Price incl. VAT

56

SHAFT SHIFT BELLCRANK

3234712

$120,74 Unit Price incl. VAT

57

Rail Shift Shaft

3234714

$52,49 Unit Price incl. VAT

58

Plug Detent

3234715

$68,24 Unit Price incl. VAT

59

RAIL PARK SHAFT

3234716

$52,49 Unit Price incl. VAT

60

DOG ENGAGEMENT GTO LOW

3234718

$346,49 Unit Price incl. VAT

61

DOG ENGAGEMENT GTO REV/LOW

3235341

$335,99 Unit Price incl. VAT

62

FORK SHIFT

3235342

$167,99 Unit Price incl. VAT

63

PIPE KNOCK

3234765

$26,24 Unit Price incl. VAT

64

FORK SHIFT

3234766

$167,99 Unit Price incl. VAT

65

DOG ENGAGEMENT GTO HIGH

3235190

$136,49 Unit Price incl. VAT

66

SUBASM. SWITCH SHAFT

3234767

$230,99 Unit Price incl. VAT

67

SUBASSY OUTPUT FRONT W/BEARINGS (#27)

3235506

$556,49 Unit Price incl. VAT

68

SUBASSEMBLY PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$577,49 Unit Price incl. VAT

69

KIT GTO PRIMARY SHIM PACK

2204268

$68,24 Unit Price incl. VAT

70

BELLCRANK 15T SPLINE

3234724

$52,49 Unit Price incl. VAT

71

Deflector Oil

3234725

$26,24 Unit Price incl. VAT

72

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$40,94 Unit Price incl. VAT

73

SENSOR SPEED

4012167

4082135

$204,74 Unit Price incl. VAT

74

CHAIN SILENT TYPE 101 .25P X .40W X 58L

3234737

$314,99 Unit Price incl. VAT

75

CHAIN SILENT 0.5 X .375P X 64P

3234738

$456,74 Unit Price incl. VAT

76

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

3236115

$225,74 Unit Price incl. VAT

77

O-RING

3234302

$13,64 Unit Price incl. VAT

78

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

79

O-RING 0.53 I.D X 0.082 WIDE

3234729

$25,19 Unit Price incl. VAT

80

O-RING - N70 9.5 MM X 2 MM

3234730

$14,69 Unit Price incl. VAT

81

SEAL 35 X 62 X 8

3234769

$78,74 Unit Price incl. VAT

82

SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON

3234892

$68,24 Unit Price incl. VAT

83

WASHER RIBBED

3235508

$7,34 Unit Price incl. VAT
