1
Engine displacement
700
2
Year
2001
3
Trim
INT'L SLH - W014697I
4
Parts Catalog
HULL BODY
5

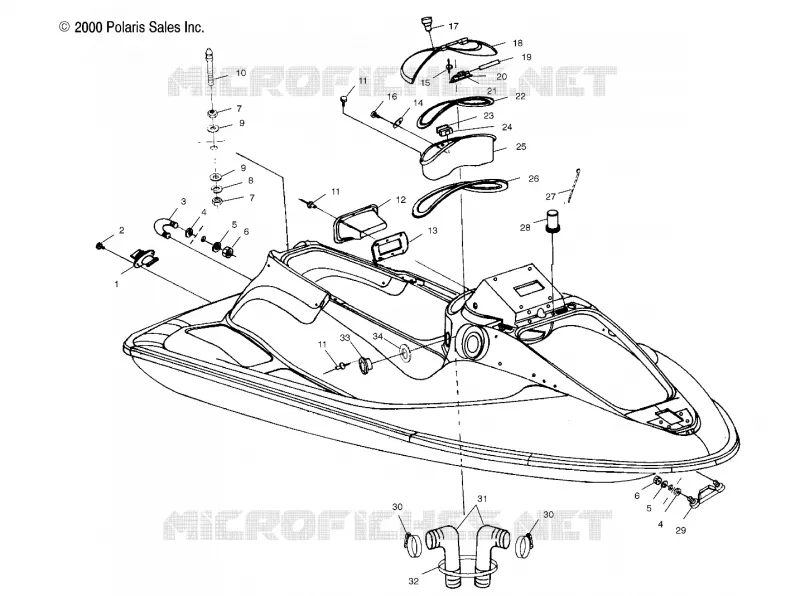

Parts Diagram
Parts Catalog
by
HULL BODY
HULL BODY
1
2
3
4
4
5
5
6
6
7
7
8
9
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
1
2
3
4
4
5
5
6
6
7
7
8
9
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
1
PLUG ASM BILGE
1060125
Not Available
2
SCREW S.S.(10)
7511882
$2,09 Unit Price incl. VAT
3
U-BOLT ASM.
1060126
$12,80 Unit Price incl. VAT
4
WASHER RUBBER(10)
7555870
$0,62 Unit Price incl. VAT
5
WASHER FLAT S.S.(10)
7555839
$0,93 Unit Price incl. VAT
6
NUT NYLOK S.S.(10)
7542133
Not Available
7
NUT HEX S.S. (10)
7542454
Not Available
8
WASHER LOCK S.S.(10)
7552607
$1,77 Unit Price incl. VAT
9
WASHER-FLAT 3/8 TYPE B(W)-SS
7555846
$10,49 Unit Price incl. VAT
10
PLUNGER LATCH
5020753
Not Available
11
RIVET-POP (50)
7661042
$1,77 Unit Price incl. VAT
12
BASE RECEPTICAL SEAT SL2
5432718
Not Available
13
GASKET RECEPT.SEATBASE
5811555
Not Available
14
PLATE HOOK CONSOLE
5211865
Not Available
15
RIVET-POP (10)
7661039
$1,56 Unit Price incl. VAT
16
SCREW SS.
7516609
Not Available
17
ASM-LATCH MACHINED
2632417
Not Available
18
LID-CONSOLE PWC P307/P311
54326601119
Not Available
19
PIN HINGE (CONSOLE)
5333612
Not Available
20
HINGE CONSOLE(SL2)
5432645
Not Available
21
SPRING TORS.CONSOLE SS
7041660
Not Available
22
SEAL CONSOLE
5521430
Not Available
23
GASKET HOOK CONSOLE
5811552
$2,30 Unit Price incl. VAT
24
HOOK LATCH
5432661
Not Available
25
BOX GLOVE BRT.WHI.
5432829133
Not Available
26
SEAL GLOVE BOX
5811565
Not Available
27
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
28
GROMMET-DECK WIRE HARNESS
5411664
Not Available
29
STRAP BOW
2670150
$79,47 Unit Price incl. VAT
30
CLAMP HOSE 3.25 SS
7080439
$17,84 Unit Price incl. VAT
31
DUCT-INLET AIR 21 1/2 INCH [Item NotAvailable]
5434186
Not Available
32
STRAP CABLE(10)
7080598
Not Available
33
FLANGE-INLET AIR
5433220
$15,95 Unit Price incl. VAT
34
GASKET-INLET AIR
5411545
$2,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
