FRONT WISHBONES FOR 600 SWITCHBACK PRO S FROM 2015

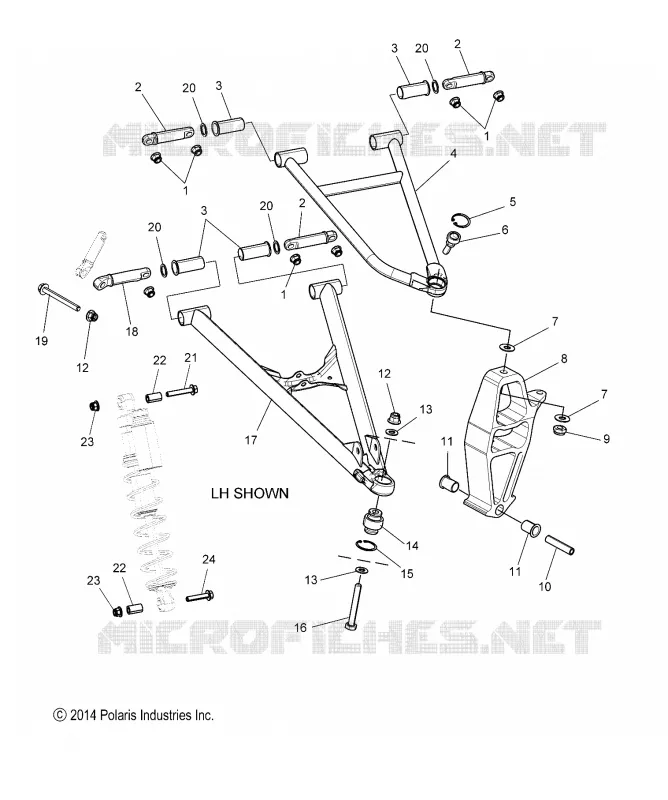

FRONT WISHBONES

1

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

2

SHAFT PIVOT

5138460

$47,24 Unit Price incl. VAT

3

BUSHING PIVOT

5450297

$6,29 Unit Price incl. VAT

4

KIT UPPER CONTROL ARM RH MOLY MATTE BLACK [INCL. 1-3 5 6 9 20]

2205674458

Not Available

4

KIT UPPER CONTROL ARM MOLY LH MATTE BLACK [INCL. 1-3 5 6 9 20]

2205673458

Not Available

4

KIT UPPER CONTROL ARM RH MOLY INDY RED [INCL. 1-3 5 6 9 20]

2205674293

$335,99 Unit Price incl. VAT

4

KIT UPPER CONTROL ARM MOLY LH INDY RED [INCL. 1-3 5 6 9 20]

2205673293

$335,99 Unit Price incl. VAT

5

RING RETAINING

7710642

$4,19 Unit Price incl. VAT

6

BEARING SPHERICAL UPPER CONTROL ARM

7061179

$47,24 Unit Price incl. VAT

7

WASHER-7/16 SAE STF THRU-HRD-Y

7556212

$15,74 Unit Price incl. VAT

8

ASM. SPINDLE LH [INCL. 11]

1823801

$314,99 Unit Price incl. VAT

8

ASM. SPINDLE RH [INCL. 11]

1823802

$314,99 Unit Price incl. VAT

8

ASM. SPINDLE RH RED [INCL. 11]

1823802293

$419,99 Unit Price incl. VAT

8

ASM. SPINDLE LH RED [INCL. 11]

1823801293

$419,99 Unit Price incl. VAT

9

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

10

BUSHING

5136910

$13,64 Unit Price incl. VAT

11

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

12

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

13

WASHER

7555806

$1,56 Unit Price incl. VAT

14

KIT SPHERICAL BEARING LOWER

2204229

$54,59 Unit Price incl. VAT

15

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

16

SCREW M10x75 HCS

7519015

$10,49 Unit Price incl. VAT

17

KIT LOWER CONTROL ARM LH MATTE BLACK [INCL. 1-3 12 14 15 18]

2205671458

Not Available

17

KIT LOWER CONTROL ARM RH MATTE BLACK [INCL. 1-3 12 14 15 18]

2205672458

Not Available

17

KIT LOWER CONTROL ARM LH INDY RED [INCL. 1-3 12 14 15 18]

2205671293

Not Available

17

KIT LOWER CONTROL ARM RH INDY RED [INCL. 1-3 12 14 15 18]

2205672293

Not Available

18

SHAFT PIVOT LOWER CONTROL ARM FRONT

5138461

$47,24 Unit Price incl. VAT

19

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$9,44 Unit Price incl. VAT

20

WASHER

7556758

$6,29 Unit Price incl. VAT

21

SCREW

7518941

$7,34 Unit Price incl. VAT

22

BUSHING

5137360

$7,34 Unit Price incl. VAT

23

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

24

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
