1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN TOURING 550 EPS INTL - A13DN5EFL
4
Parts Catalog

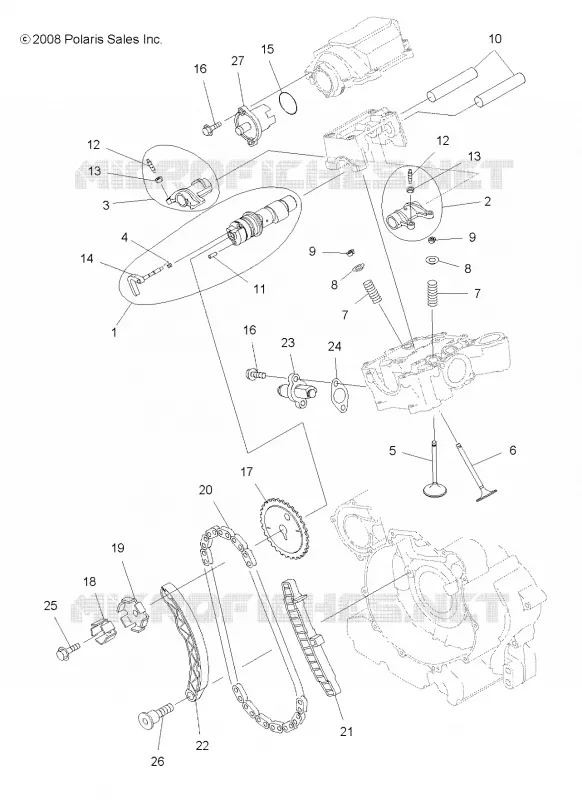

VALVES AND CAMSHAFT
5
Parts Diagram
Parts Catalog
THROTTLE BODY
by
REAR SUSPENSION
VALVES AND CAMSHAFT
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Asm. Camshaft [Incl. Cam 4 11 14]
3090115
$493,49 Unit Price incl. VAT
2
Arm Rocker Intake [Incl. Arm 12 13]
3090122
$262,49 Unit Price incl. VAT
3
Arm Rocker Exhaust [Incl. Arm 12 13]
3090125
Not Available
4
Spring Return
3090117
$13,64 Unit Price incl. VAT
5
Valve Intake
3090118
$99,74 Unit Price incl. VAT
6
Valve Exhaust
3090119
$167,99 Unit Price incl. VAT
7
Spring Valve
3090214
$47,24 Unit Price incl. VAT
8
Retainer Spring Valve
3087203
Not Available
9
Collet Valve
3084908
$9,44 Unit Price incl. VAT
10
Shaft Rocker
3090215
$83,99 Unit Price incl. VAT
11
Pin Dowel
3084899
$13,64 Unit Price incl. VAT
12
Screw Adjusting
3090123
$9,44 Unit Price incl. VAT
13
Nut
3090124
$6,29 Unit Price incl. VAT
14
Lever Release
3090116
$115,49 Unit Price incl. VAT
15
O-Ring
3090131
$12,59 Unit Price incl. VAT
16
BOLT FLANGE(10)
3084877
Not Available
17
Sprocket Cam
3090126
$141,74 Unit Price incl. VAT
18
Plate
3089975
Not Available
19
Cam Pulley
3090127
Not Available
20
Chain Timing
3090128
Not Available
21
Guide Chain
3084916
Not Available
22
Lever
3090129
$157,49 Unit Price incl. VAT
23
Asm. Tensioner [Incl. 1-4]
3086493
Not Available
24
Gasket Tensioner
3086448
$12,59 Unit Price incl. VAT
25
BOLT FLANGE
3086449
$13,64 Unit Price incl. VAT
26
Bolt Pivot
3088024
Not Available
27
Cover Cam
3090130
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
