1
Engine displacement
570
2
Year
2018
3
Trim
RANGER CREW 570 4 SEAT BASE / EPS
4
Parts Catalog

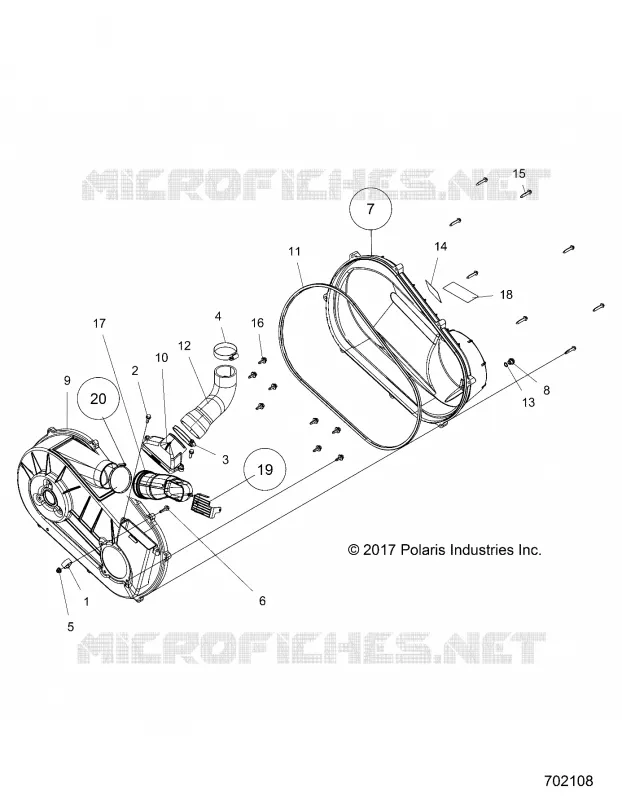

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, CAB
by
DRIVE TRAIN, GEAR SELECTOR
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
1
CLAMP-VINYL COATED 1.00IN ID
7081854
$10,49 Unit Price incl. VAT
2
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
3
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
4
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
5
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
6
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
7
K-CVR CLUTCH OTR RGR MS/FS [INCL. OUTER COVER PLUG O-RING DECAL]
2207123
$230,99 Unit Price incl. VAT
8
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
9
ASM-COVER CLUTCH INNER [INCL. 2 9 10 17]
2634188
$257,24 Unit Price incl. VAT
9
COVER-CLUTCH INNER
5454520
$314,99 Unit Price incl. VAT
10
DUCT-CLUTCH AIR IN
5438891
$52,49 Unit Price incl. VAT
11
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
12
HOSE-CLUTCH INTAKE
5414501
$104,99 Unit Price incl. VAT
13
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
14
DECAL-BELT WARNING/CHECK
7177469
Not Available
15
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
16
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
17
DUCT OUTLET CLUTCH
5450181
2636954
$346,49 Unit Price incl. VAT
17
HOSE-CLUTCH AIR OUTLET
5416458
$136,49 Unit Price incl. VAT
18
DECAL-WARN CLUTCH COVER
7175488
Not Available
19
BRKT-SCREEN BELT
5264754
$62,99 Unit Price incl. VAT
20
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
