1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER XP 1000 ALL OPTIONS
4
Parts Catalog
ENGINE, STATOR AND FLYWHEEL
5
Parts Diagram
Parts Catalog
OIL PUMP
by
REFERENCES, TOOL KIT AND OWNERS MANUALS

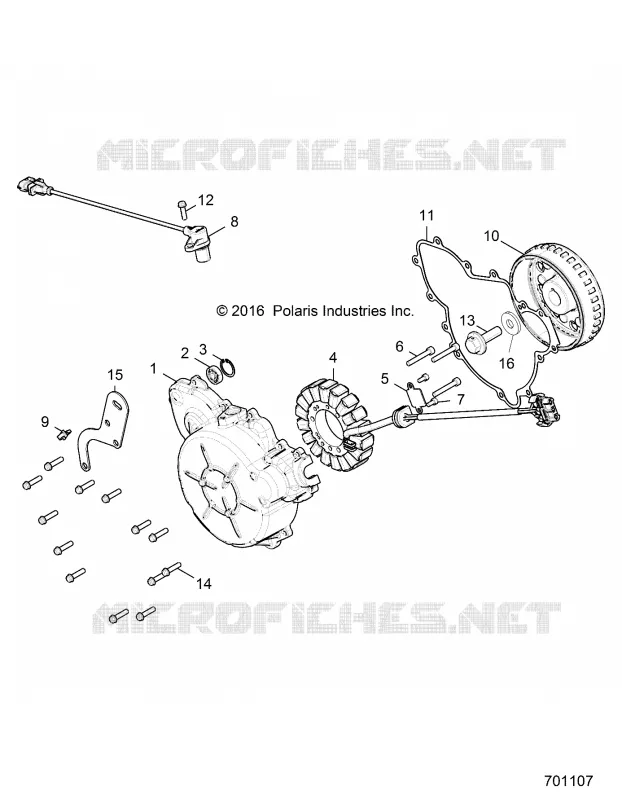

ENGINE, STATOR AND FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
1
ASM. IGNITION COVER STARTER BEARING [INCL. 3 4]
1204518
1206299
$262,49 Unit Price incl. VAT
2
BEARING-BALL 9X24X7
3514717
$15,74 Unit Price incl. VAT
3
RING-SNAP DIN472 24X1.2MM
7710654
$41,99 Unit Price incl. VAT
4
STATOR 660W
4014839
$965,99 Unit Price incl. VAT
5
BRACKET RETAINER WIRE
5255473
$13,64 Unit Price incl. VAT
6
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
7
SCREW-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
8
SENSOR CRANK POSITION
2411719
$194,24 Unit Price incl. VAT
9
CLIP-WIRE 6.35MM
7081477
$6,29 Unit Price incl. VAT
10
FLYWHEEL
4014688
$297,14 Unit Price incl. VAT
11
GASKET COVER IGNITION
5814160
$73,49 Unit Price incl. VAT
12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
13
BOLT-HXFLG M12X1.25X90 12.9
7520605
7528260
$11,54 Unit Price incl. VAT
13
SCREW-HXFL-M12X1.25X43 12.9
7520178
$52,49 Unit Price incl. VAT
14
SCREW-HXFLG M6X1.0X25 10.9
7519297
$7,34 Unit Price incl. VAT
15
BRACKET BYPASS HOSE
5258852
5263750
$9,44 Unit Price incl. VAT
16
WSHR-32X12X4 HARD
7556885
$10,49 Unit Price incl. VAT
16
WASHER-FRICTION 28.0MM
7556915
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
