1
Engine displacement
600
2
Year
1996
3
Trim
600 XCR SP - 0965677
4
Parts Catalog

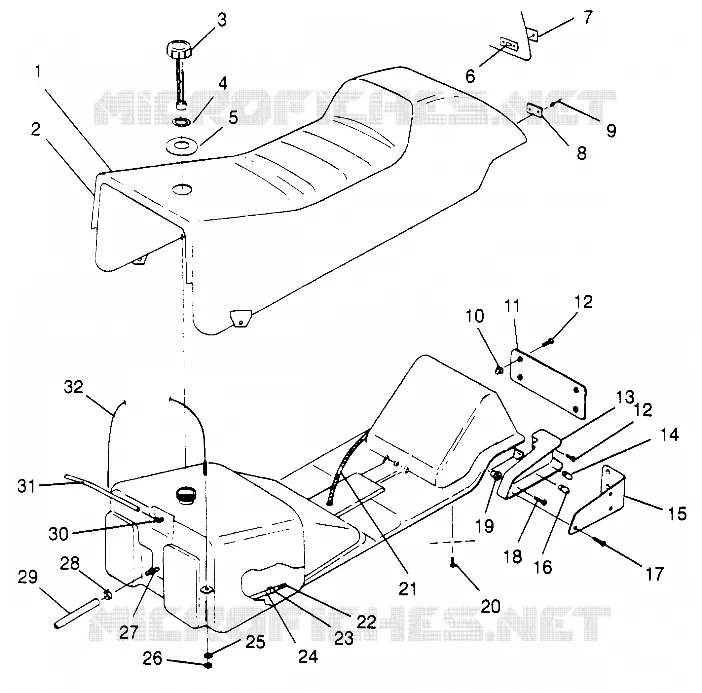

SEAT GAS TANK ASSEMBLY 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E9656 (4932063206A007)
5
Parts Diagram
Parts Catalog
TUNNEL ASSEMBLY 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206A005)
by
HOOD 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206A012)
SEAT GAS TANK ASSEMBLY 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E9656 (4932063206A007)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
SEAT ASM.(600 SP)
2681922
Not Available
2
COVER SEAT (600 SP)
2681921
Not Available
3
CAP GAS W/GAUGE
2511248
$83,99 Unit Price incl. VAT
4
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
5
GROMMET FUELTANK
5410815
Not Available
6
GROMMET RELATCH 1# BOTT.(10)
7080550
Not Available
7
GROMMET RELATCH 1# TOP(10)
7080549
Not Available
8
TWISTLOCK RELATCH 1# W/HOLE(10)
7080548
Not Available
9
RIVET(50)
7621337
$2,09 Unit Price incl. VAT
10
NUT(10)
7546908
$4,71 Unit Price incl. VAT
11
REFLECTOR CTR SEAT
5432008
Not Available
12
SCREW SELF-TAP(10)
7522004
Not Available
13
HOUSING LH LENS
5432002
Not Available
13
HOUSING RH LENS
5432003
Not Available
14
BULB BRAKELIGHT
4030045
Not Available
15
LENS RH
5432032
$83,99 Unit Price incl. VAT
15
LENS LH
5432031
Not Available
16
BULB T/L.
4032084
Not Available
17
SCREW
7512054
$4,19 Unit Price incl. VAT
18
SCREW(10)
7511954
Not Available
19
NUT WELL(10)
7541901
$11,54 Unit Price incl. VAT
20
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
21
HARNESS T/L 121 (SCULPT)
2460541
Not Available
22
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
23
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
24
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
25
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
26
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
27
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
28
CLAMP HOSE
7080490
Not Available
29
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
30
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
31
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
32
CABLE TANK RETENTION
7080559
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
