1
Engine displacement
400
2
Year
2001
3
Trim
SCRAMBLER 400 2X4 - A01BA38CA
4
Parts Catalog
CARBURETOR
5

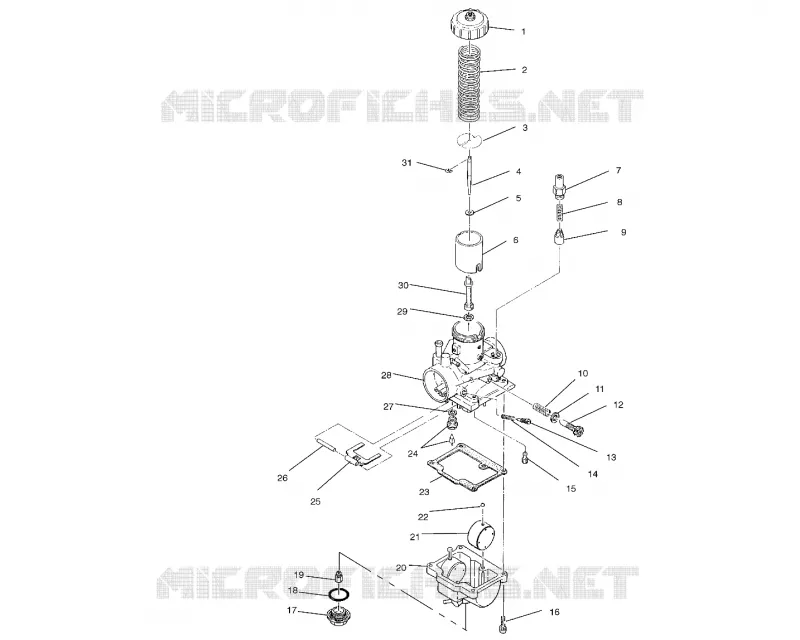

Parts Diagram
Parts Catalog
OIL PUMP
by
RECOIL STARTER
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130496
$62,99 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
JET NEEDLE
3130476
$52,49 Unit Price incl. VAT
5
WASHER
3130355
$13,64 Unit Price incl. VAT
6
VALVE THROTTLE (1.5) (1.5)
3130494
Not Available
7
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
8
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
9
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
10
SPRING THROT.ADJ. (Throttle Adjuster)
3130436
Not Available
11
WASHER
3130447
Not Available
12
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
13
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
15
JET-PILOT (#25) (#25)
3131325
3130064
$18,89 Unit Price incl. VAT
16
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
17
SCREW GUIDE
3130432
$52,49 Unit Price incl. VAT
18
O-RING
3130239
Not Available
19
JET MAIN HX.HD#230(10)
3130126
$15,74 Unit Price incl. VAT
20
BOWL FLOAT (350)
3130443
Not Available
21
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
22
CAP
3130237
$8,39 Unit Price incl. VAT
23
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
24
NEEDLE VALVE ASM.(2.5) (2.5)
3130495
$136,49 Unit Price incl. VAT
25
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
26
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
27
WASHER(10)
3130047
$9,44 Unit Price incl. VAT
28
ASM-CARBURETOR (Incl. 1-31)
3131404
Not Available
29
RING MAIN JET
3130596
Not Available
30
NEEDLE JET ASM. (O-6(480))
3130429
Not Available
31
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
