1
Engine displacement
0
2
Year
1997
3
Trim
XLT RMK - 0970956
4
Parts Catalog
PISTON CRANKSHAFT XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769D001)
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769C010)
by
CARBURETOR (XLT, SKS) XLT 0970756, XLT SKS 0970556 (4937693769D002)

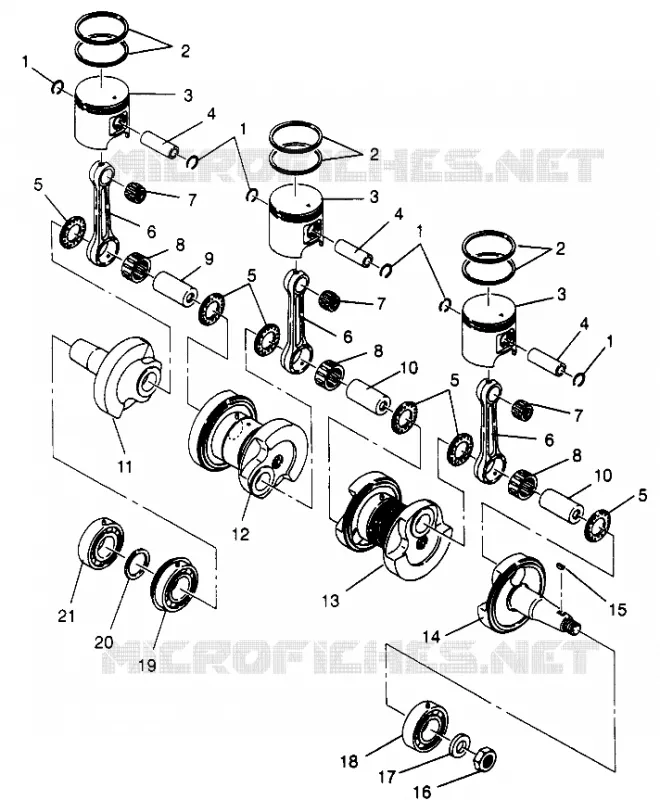

PISTON CRANKSHAFT XLT 0970756, XLT SKS 0970556, AND XLT RMK 0970956 (4937693769D001)
1
CLIP PISTON PIN (10) (Piston Pin)
3084456
Not Available
2
RING PISTON .020 O/S (.020 Over)
3083359
Not Available
2
RING PISTON .010 O/S (.010 Over)
3083358
Not Available
2
RING PISTON (Standard)
3083349
Not Available
3
PISTON (.25MM O/S) Substituted by 3085874 (0.25m/.010# O/S)
3085433
Not Available
3
PISTON (.50MM O/S) Substituted by 3085875 (0.50m/.020# O/S)
3085434
Not Available
3
PISTON STD. Substituted by 3085873 (Standard)
3085432
$185,84 Unit Price incl. VAT
4
PIN PISTON
3085021
Not Available
5
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
6
ROD CONNECTING
3085422
Not Available
7
BEARING SMALL END
3080998
Not Available
8
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
9
PIN-CRANK 2
3083254
Not Available
10
PIN CRANK #1
3084447
$51,54 Unit Price incl. VAT
11
CRANKSHAFT 3
3084445
Not Available
12
CRANKSHAFT PTO SIDE (PTO Side)
3084444
$704,54 Unit Price incl. VAT
13
CRANKSHAFT MAG SIDE (Mag Side)
3084443
Not Available
13
CRANKSHAFT CTR. (Center) (Incl.5 6 8-10 12)
3085421
$1 280,99 Unit Price incl. VAT
14
CRANKSHAFT 1 Substituted by 3084597
3084441
Not Available
14
CRANKSHAFT ASM. (Incl. 5 6 8-17)
3085420
Not Available
15
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
16
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
17
WASHER
3084457
Not Available
18
BEARING BALL
3084681
3515061
$141,74 Unit Price incl. VAT
19
BEARING BALL
3084599
Not Available
20
SPACER CRANKSHAFT
3080447
$3,24 Unit Price incl. VAT
21
BEARING BALL
3084586
3515063
$60,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
