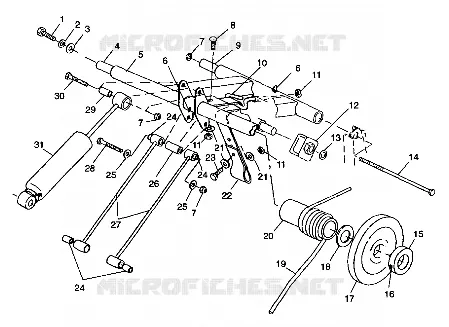

REAR TORQUE ARM FOR 500 INDY - 099EB4BSA FROM 1999

REAR TORQUE ARM

1

SCREW (10)

7517247

$6,29 Unit Price incl. VAT

2

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

3

WASHER FLAT

7555893

$1,56 Unit Price incl. VAT

4

SHAFT R.TORQUE UPPER

5020845

$115,49 Unit Price incl. VAT

5

ARM R.TORQUE BLK (X-10 Blk)

1541152067

Not Available

6

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

7

NUT FLEXLOC

7542411

$6,29 Unit Price incl. VAT

8

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$9,44 Unit Price incl. VAT

9

SHAFT

5333536

Not Available

10

BOLT EYE

7010050

Not Available

11

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

12

ROLLER SPRING ADJ.

5431168

Not Available

13

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

14

SCREW

7517232

$36,74 Unit Price incl. VAT

15

COLLAR BRG LOCK

5010404

Not Available

16

SCREW SOCKET SET

7512257

$7,34 Unit Price incl. VAT

17

BEARING

3514303

$20,99 Unit Price incl. VAT

17

RING RETAINING

7718407

$9,44 Unit Price incl. VAT

17

WHEEL CARRIER

1543023

Not Available

18

WASHER THRUST

7555787

$10,49 Unit Price incl. VAT

19

SPRING RH TORS(.421DIA) (.421) Med.

7041462067

$209,99 Unit Price incl. VAT

19

SPRING LH TORS(.437/77) (437)

7041465067

Not Available

19

SPRING LH TORS(.406DIA) (.406) Std.

7041463067

Not Available

19

SPRING RH TORS(.406DIA) (.406) Std.

7041464067

Not Available

19

SPRING RH TORS(.437/77) (437)

7041466067

$182,69 Unit Price incl. VAT

19

SPRING LH TORS(.421DIA) (.421) Med.

7041461067

Not Available

20

SLEEVE TORSION SPRING

5431923

$11,54 Unit Price incl. VAT

21

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

22

STRAP LIMITER (RR QA)

5411061

Not Available

23

BOLT

7512310

$4,19 Unit Price incl. VAT

24

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

25

WASHER WAVE SPRING(10)

7555795

$2,09 Unit Price incl. VAT

26

SPACER

5333559

Not Available

27

ROD SHOCK

1541015067

Not Available

28

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

29

Bushing .385 ID

5010422

$18,89 Unit Price incl. VAT

30

BOLT(10) Substituted by 7515492

7512410

$9,44 Unit Price incl. VAT

31

SHOCK GAS ADJ R.TRACK

7041441

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
