GEARCASE ASSEMBLY 250 6X6 / W928727 (4922842284033A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 250 6X6 / W928727 (4922842284032A)
by
WIRING HARNESS 250 6X6 / W928727 (4922842284035A)

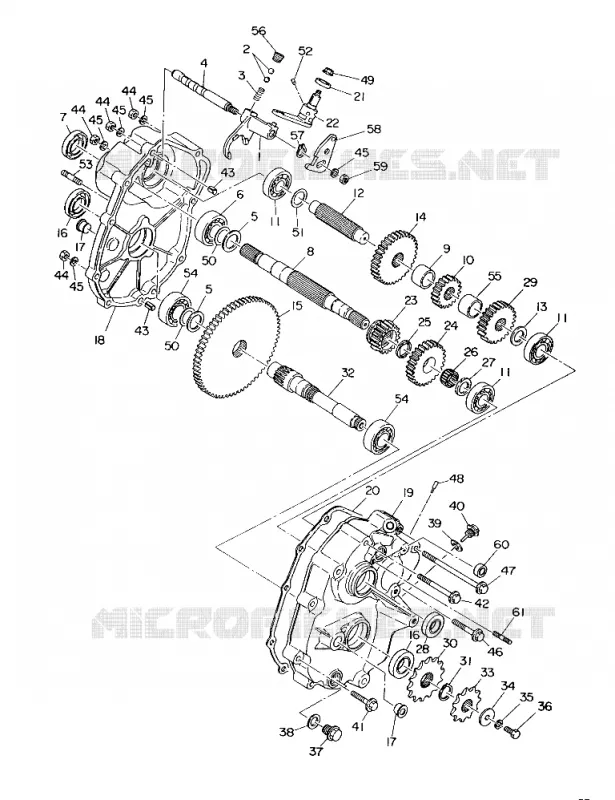

GEARCASE ASSEMBLY 250 6X6 / W928727 (4922842284033A)
-
GEARCASE (ME35 P1)
1341080
$1 749,29 Unit Price incl. VAT
2
BALL STEEL
3231502
Not Available
3
SPRING
3231613
Not Available
4
SHAFT SHIFT
3231614
Not Available
5
WASHER
3231505
Not Available
6
BEARING
3231506
Not Available
7
SEAL OIL
3231507
Not Available
8
SHAFT INPUT
3231580
Not Available
9
COLLAR
3231581
Not Available
10
GEAR
3231510
$47,45 Unit Price incl. VAT
11
BEARING
3231511
Not Available
12
SHAFT
3231512
Not Available
13
WASHER
3231513
$7,86 Unit Price incl. VAT
14
GEAR
3231514
Not Available
15
GEAR
3231582
Not Available
16
SEAL OIL
3231516
Not Available
17
SUPPORT
3231517
Not Available
18
CASE LH
3231594
Not Available
19
CASE RH
3231615
Not Available
20
PACKING
3231553
Not Available
21
SEAL OIL
3231521
Not Available
22
SHAFT SELECT
3231616
Not Available
23
GEAR
3231585
Not Available
24
GEAR
3231524
Not Available
25
WASHER
3231525
Not Available
26
BEARING NEEDLE
3231526
Not Available
27
WASHER
3231527
Not Available
28
SEAL OIL
3231528
Not Available
29
GEAR
3231529
Not Available
30
SPKT 12T (Opt.)
3221044
$83,99 Unit Price incl. VAT
31
C RING
3231531
Not Available
32
SHAFT OUTPUT
3231588
Not Available
33
SPKT 11T
3221058
$115,49 Unit Price incl. VAT
34
WASHER(10)
3231599
Not Available
35
WASHER SPRING(10)
3231545
Not Available
36
BOLT
3231536
Not Available
37
PLUG DRAIN 20MM MAGNET
3231569
Not Available
38
GASKET
3231592
Not Available
39
GASKET
3231539
Not Available
40
PLUG OIL
3231561
Not Available
41
BOLT
3231602
Not Available
42
BOLT
3231603
Not Available
43
PIPE KNOCK
3231543
Not Available
44
NUT(10)
3231604
Not Available
46
BOLT
3231605
Not Available
47
BOLT
3231606
Not Available
48
PIPE BREATHER
3231548
Not Available
49
NUT LOCK
3231555
Not Available
50
SHIM 25 0.1
3231563
Not Available
50
SHIM 25 0.3
3231562
Not Available
51
SHIM 20 0.3
3231564
Not Available
51
SHIM 20 0.1
3231565
Not Available
52
PIN
3231607
Not Available
53
STUD
3231608
Not Available
54
BEARING
3231609
Not Available
55
COLLAR
3231587
Not Available
56
SCREW SET
3231617
Not Available
57
C RING
3231618
Not Available
58
LEVER LOCKING
3231619
Not Available
59
NUT(10)
3231620
Not Available
60
SEAL OIL
3231621
Not Available
61
STUD
3231622
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
