1
Engine displacement
0
2
Year
1994
3
Trim
EURO LITE - E943433
4
Parts Catalog
NOSEPAN CONSOLE ASSEMBLY LITE E943433 (49273427340003)
5
Parts Diagram
Parts Catalog
FUEL PUMP LITE E943433 (49273427340032)
by
HOOD ASSEMBLY LITE E943433 (49273427340005)

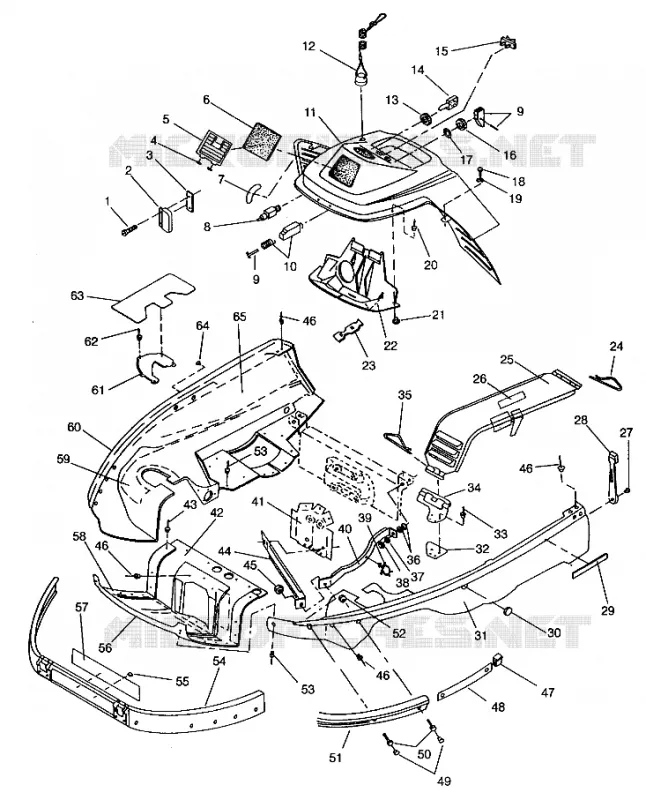

NOSEPAN CONSOLE ASSEMBLY LITE E943433 (49273427340003)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
40
40
41
42
43
44
44
44
44
45
46
46
46
46
47
47
47
47
48
49
50
51
52
53
53
54
55
56
57
58
59
60
61
61
61
61
62
62
62
62
63
64
65
1
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
2
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
3
HEAT SINK
5210650
Not Available
4
SEAL O RING (10)
5410374
$2,93 Unit Price incl. VAT
5
LOUVER INTAKE
5431211070
Not Available
6
FOAM INTAKE (Indy)
5810458
Not Available
7
DECAL FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Not Available
8
SWITCH IGNITION
4110038
$83,99 Unit Price incl. VAT
9
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
10
CABLE CHOKE(LITE) Substituted by 7080661 (Indy)
7080405
Not Available
11
CONSOLE (SCAND.)
5431432
$85,88 Unit Price incl. VAT
12
SWITCH TETHER Substituted by 2870668
4110156
$125,99 Unit Price incl. VAT
13
NUT-IGNITION SWITCH
7542807
Not Available
14
KEY IGNITION
5410378
$27,29 Unit Price incl. VAT
15
SWITCH ROCKER Substituted by 4110195 (Lite Deluxe)
4110116
Not Available
16
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
17
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
18
SCREW
7512253
$7,34 Unit Price incl. VAT
19
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
20
RIVET (50)
7621336
$3,14 Unit Price incl. VAT
21
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
22
CONSOLE INNER (Indy)
5431214070
Not Available
23
STRAP TOOL COMPARTMENT (Indy)
5410425
Not Available
24
PIN FRONT (TRAIL)
7080311
Not Available
25
GUARD CLUTCH(SWED.LITE GT) (Lite GT StarLite GT)
1011839
Not Available
26
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
27
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
28
STRAP HOOD
5410573
Not Available
29
REFLECTOR AMBER
2670071
Not Available
30
PLUG CLUTCH HOLE
5410582
$15,74 Unit Price incl. VAT
31
NOSEPAN LH BLK.
5431155070
Not Available
32
PLATE CLUTCHGUARD BLK.
5211249067
Not Available
33
RIVET(50)
7621449
Not Available
34
SUPPORT CLUTCH GD BLK.
5222332067
$7,97 Unit Price incl. VAT
35
PIN
5224440
Not Available
36
WASHER
7558403
$9,44 Unit Price incl. VAT
37
WASHER
7555806
$1,56 Unit Price incl. VAT
38
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
39
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
40
BRKT LH PANBRACE BLK.
5222339067
Not Available
40
BRKT RH PANBRACE BLK.
5222340067
Not Available
41
BRKT SUPPORT BLK.
5222356067
Not Available
42
TAPE FOIL
5810476
Not Available
43
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
44
BRKT RH BUMP.BRACE BLK.
5222346067
Not Available
44
BRKT LH BUMP.BRACE BLK.
5222345067
Not Available
45
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
46
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
47
CAP BUMPER END LH BLK Substituted by 5431250-070
5431250
Not Available
47
CAP BUMPER END RH BLK Substituted by 5431251-070
5431251
Not Available
48
PLATE BUMPER
5222611067
Not Available
49
PLUG BUTTON(10)
7080430
$5,66 Unit Price incl. VAT
50
SCREW(10)
7512164
Not Available
51
BUMPER FRT BLK.
5224434067
Not Available
52
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
53
RIVET
7621467
$2,09 Unit Price incl. VAT
54
HINGE LOWER BLK.
2635010067
Not Available
55
CLIP-U TYPE
7670040
$7,34 Unit Price incl. VAT
56
NOSEPAN CTR.
5431154070
Not Available
57
SCREEN
5211267067
Not Available
58
TAPE FOIL
5810475
Not Available
59
TAPE FOIL
5810477
Not Available
60
NOSEPAN RH BLK.
5431156070
Not Available
61
COVER RH SHOCK
5431253
Not Available
61
COVER LH SHOCK
5431252
Not Available
62
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
62
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
63
TAPE FOIL (PAN)
5810482
Not Available
64
CLIP-DART (NYLON)
7670067
$7,34 Unit Price incl. VAT
65
TAPE FOIL
5810478
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
