1
Engine displacement
0
2
Year
1994
3
Trim
EURO CLASSIC - E942865
4
Parts Catalog

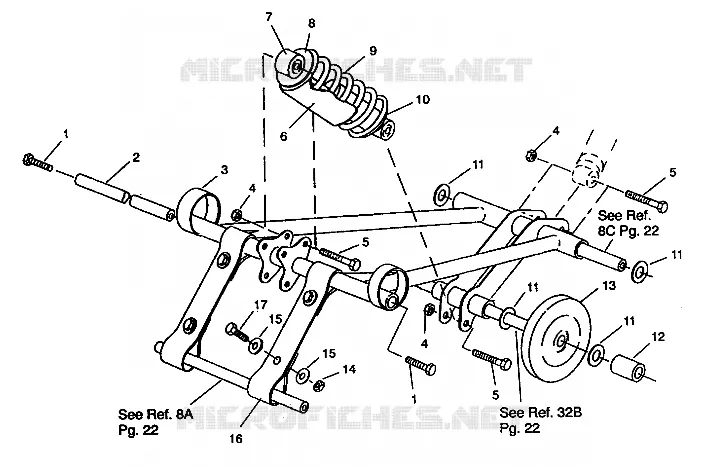

FRONT TORQUE ARM CLASSIC E942865 (49274027400025)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY CLASSIC TOURING E942875 (49274027400023)
by
FRONT TORQUE ARM CLASSIC TOURING E942875 (49274027400026)
FRONT TORQUE ARM CLASSIC E942865 (49274027400025)
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
BOLT(10)
7515432
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540805067
Not Available
4
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
5
SCREW
7515415
$2,09 Unit Price incl. VAT
6
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
7
SHOCK CTR.SUSP.
7041281
Not Available
8
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
9
SPRING-SHOCK SUSP
7041140
Not Available
10
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
SPACER OUTER
5332784
Not Available
13
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
16
STRAP LIMITER
5410397
Not Available
17
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
