1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 EFI MD
4
Parts Catalog

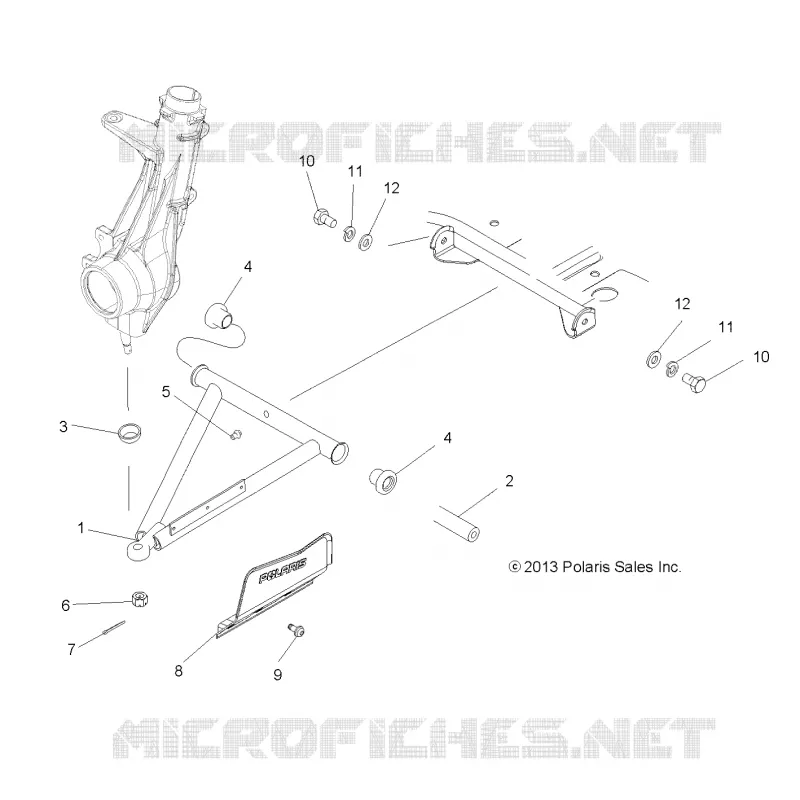

SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
TOOL KIT
by
FRONT SUSPENSION STRUT
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
12
12
1
1
1
1
2
3
3
3
3
4
4
4
4
5
6
6
6
6
7
7
7
7
8
9
9
9
9
10
10
10
10
11
12
12
12
12
1
Kit A-Frame RH [Incl. 8 24 25 27 28]
2202907
$241,49 Unit Price incl. VAT
1
Kit A-Frame LH [Incl. 8 24 25 27 28]
2202906
$241,49 Unit Price incl. VAT
2
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
3
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
4
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
5
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
6
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
8
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
SCREW
7512492
$2,09 Unit Price incl. VAT
11
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
12
Washer .105
7555832
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
