1
Engine displacement
0
2
Year
2016
3
Trim
GEM (R29) - L16G2/4/6/EURO ALL OPTIONS
4
Parts Catalog

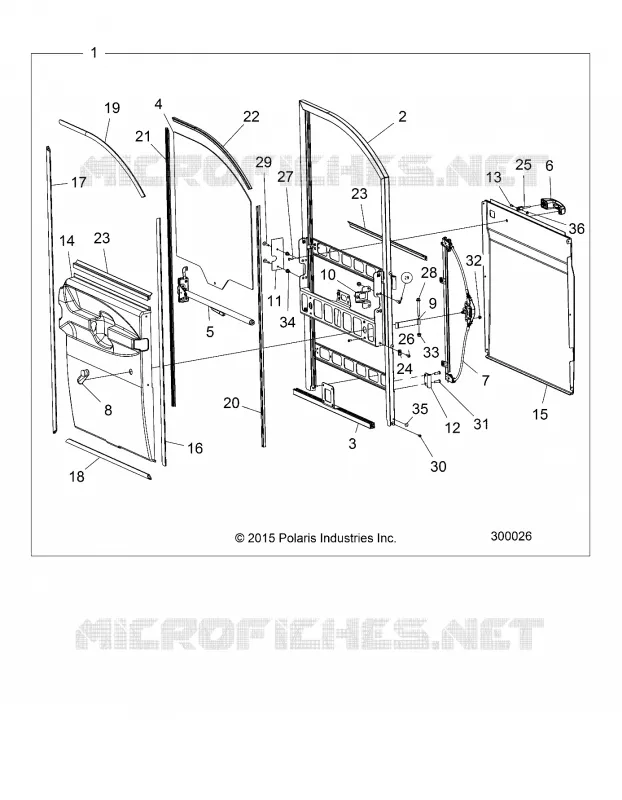

DOORSS, FULL, FRONT
5
Parts Diagram
Parts Catalog
DOORS, PILLAR, MID
by
DOORSS, HALF
DOORSS, FULL, FRONT
1
1
1
1
1
1
1
1
2
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
14
15
15
15
15
15
15
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
ASM-DOOR FRONT LH BLACK
2635825666
Not Available
1
ASM-DOOR FRONT RH RED
2635826520
Not Available
1
ASM-DOOR FRONT RH BLACK
2635826666
Not Available
1
ASM-DOOR FRONT LH WHITE
2635825599
Not Available
1
ASM-DOOR FRONT LH RED
2635825520
Not Available
1
ASM-DOOR FRONT RH BLUE
2635826598
Not Available
1
ASM-DOOR FRONT LH BLUE
2635825598
Not Available
1
ASM-DOOR FRONT RH WHITE
2635826599
Not Available
2
WELD-DOOR FRONT RH BLACK
1021385626
Not Available
2
WELD-DOOR FRONT LH BLACK
1021384626
Not Available
3
WELD-DOOR LOWER BLACK
1021388626
Not Available
4
GLASS-WINDOW DOOR FRONT
2635829
Not Available
5
ASM-HANDLE/LATCH DOOR RH
2635832
Not Available
5
ASM-HANDLE/LATCH DOOR LH
2635831
Not Available
6
ASM-HANDLE DOOR OUTER
2635833
Not Available
7
ASM-REGULATOR WINDOW LH
2635834
Not Available
7
ASM-REGULATOR WINDOW RH
2635835
Not Available
8
ASM-HANDLE CRANK WINDOW
2636059
Not Available
9
STRAP-DOOR STOP
2686690
Not Available
10
BRKT-SUPPORT HANDLE BLACK
5260838626
Not Available
11
PLATE-LATCH COVER BLACK
5260841626
Not Available
12
HINGE-DOOR BLACK
5260842626
Not Available
13
PIN-CLEVIS
7662255
Not Available
14
PANEL-DOOR INNER LH GRAY
5452255453
Not Available
14
PANEL-DOOR INNER RH GRAY
5452256453
Not Available
15
PANEL-DOOR OUTER LH RED
5452257520
Not Available
15
PANEL-DOOR OUTER RH WHITE
5452258599
Not Available
15
PANEL-DOOR OUTER LH WHITE
5452257599
Not Available
15
PANEL-DOOR OUTER RH RED
5452258520
Not Available
15
PANEL-DOOR OUTER LH BLUE
5452257598
Not Available
15
PANEL-DOOR OUTER RH BLUE
5452258598
Not Available
15
PANEL-DOOR OUTER RH BLACK
5452258666
Not Available
15
PANEL-DOOR OUTER LH BLACK
5452257666
Not Available
16
FOAM-WTHRSTRP PLY BLK 1189MM
55220021189
Not Available
17
FOAM-WTHRSTRP PLY BLK 1377MM
55220021377
Not Available
18
FOAM-WTHRSTRP PLY BLK 774MM
5522002774
Not Available
19
FOAM-WTHRSTRP PLY BLK 817MM
5522002817
Not Available
20
SEAL-GLASS CHANNEL 1157MM
55221261157
Not Available
21
SEAL-GLASS CHANNEL 1333MM
55221261333
Not Available
22
SEAL-GLASS CHANNEL 750MM
5522126750
Not Available
23
SEAL-GLASS WIPER
5522127
Not Available
24
CLIP-U SPEED NUT
7081305
$3,66 Unit Price incl. VAT
25
CLEVIS-THREADED M6X1
7082126
Not Available
26
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
27
BOLT-M6X1.0X20 PH/TX-OLIVE D
7518616
$2,09 Unit Price incl. VAT
28
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
29
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
30
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
31
SCR-TXBH-M8X1.25X25 8.8 ZB
7519728
$9,44 Unit Price incl. VAT
32
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
33
NUT-M8X1.25 FLG NYLOC-OLIVE D
7547454
7548028
$5,24 Unit Price incl. VAT
34
NUT-RIVNUT HEX M6X1.00
7547790
$6,29 Unit Price incl. VAT
35
RIVET-POP ALUM 3/16GRP 3.75-50 [TO 2/22/16]
7662109
Not Available
36
CLIP-RETAINING DOOR LATCH
7662254
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
