1
Engine displacement
650
2
Year
1992
3
Trim
650 - 0920758
4
Parts Catalog
CHAINCASE ASSEMBLY 650 (4921312131021A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE 650 (4921312131019A)
by
ENGINE MOUNTING 650 (4921312131029A)

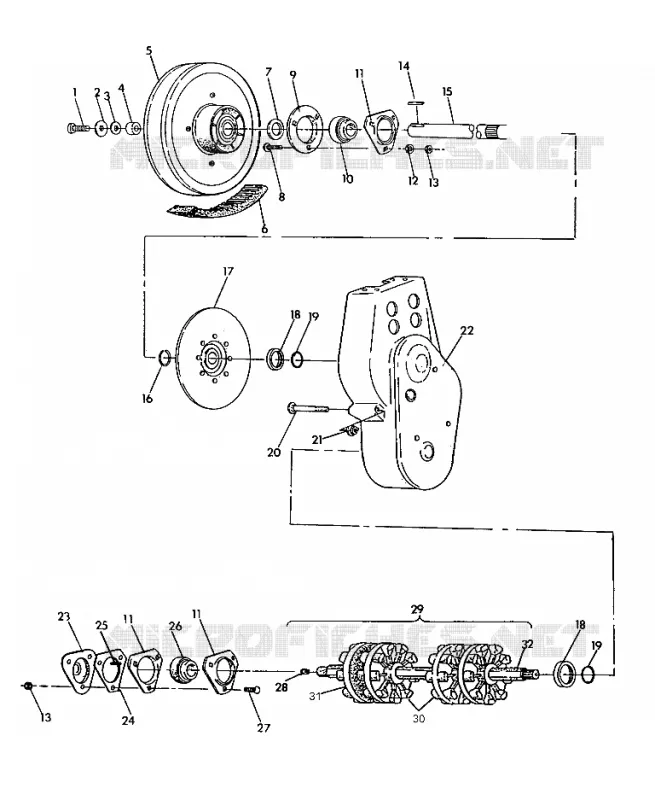

CHAINCASE ASSEMBLY 650 (4921312131021A)
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
BOLT(10)
7515301
Not Available
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
Not Available
5
CLUTCH-DRIVEN-36DEG. Substituted by 1322151
1322105
Not Available
6
BELT DRIVE(5)
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE W/GREASE GROOVE Substituted by 5240252
5222581
Not Available
10
BEARING 1 IN.(GREASEABLE)
3514511
Not Available
11
FLANGETTE Substituted by 5222751
5222591
$26,24 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
13
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
14
KEY-SQUARE(10)
7721204
$5,76 Unit Price incl. VAT
15
SHAFT INPUT Substituted by 1332135-067
5130787
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC BRAKE ASM Substituted by 1910086 (Splined)
1910064
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
21
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
22
CHAINCASE
5130795
Not Available
23
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
24
GASKET
5830012
$4,19 Unit Price incl. VAT
25
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
26
BEARING
3514501
Not Available
27
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
28
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM.
1590225
Not Available
30
SPROCKET 9T
5430571
Not Available
31
SPROCKET HALF 9T
5430993
Not Available
32
SHAFT DRIVE Substituted by 6230067
5130799
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
