1
Engine displacement
570
2
Year
2017
3
Trim
RANGER 570 MD
4
Parts Catalog
CAM CHAIN AND SPROCKET
5

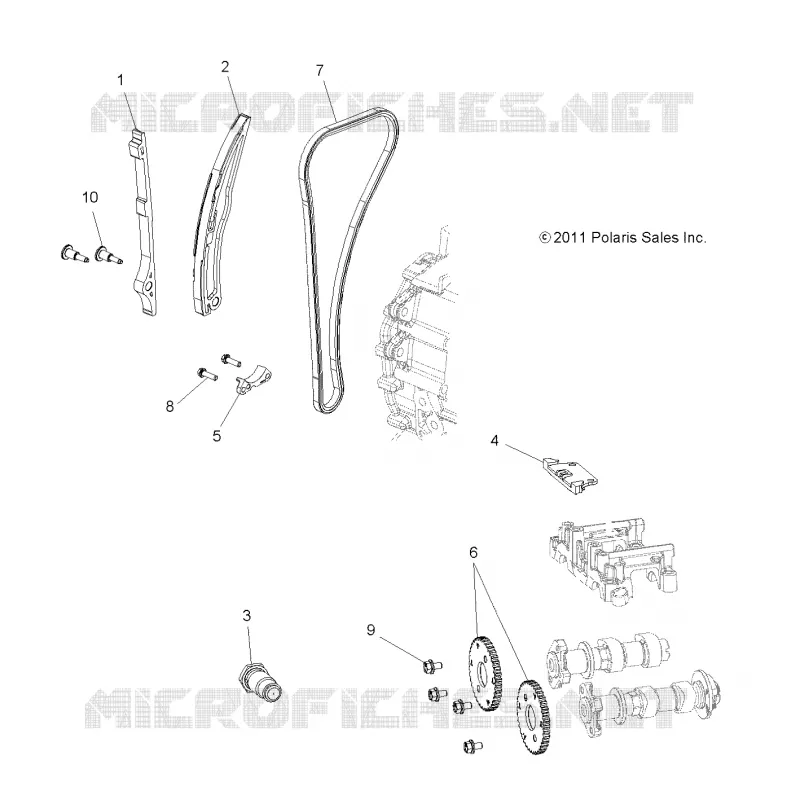

Parts Diagram
Parts Catalog
ENGINE, BREATHER
by
ENGINE, COOLING SYSTEM
CAM CHAIN AND SPROCKET
1
2
3
3
4
5
6
7
8
9
10
1
GUIDE CAMCHAIN FIXED
3022150
$26,24 Unit Price incl. VAT
2
GUIDE CAMCHAIN TENSIONER
3022151
$52,49 Unit Price incl. VAT
3
TENSIONER-CAMCHAIN HYD [INCL. TENSIONER GASKET]
3022152
$167,99 Unit Price incl. VAT
3
GASKET TENSIONER
5813449
$13,64 Unit Price incl. VAT
4
GUIDE CAMCHAIN FIXED COVER
3022153
$52,49 Unit Price incl. VAT
5
GUIDE-CAM DRIVE LOWER
3022711
$19,94 Unit Price incl. VAT
6
SPROCKET CAM DRIVEN DOHC
3222189
3225061
$68,24 Unit Price incl. VAT
7
CHAIN CAMSHAFT
3222196
$152,24 Unit Price incl. VAT
8
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
9
SCREW-HXFL M6X1.0X10 10.9
7519164
$7,34 Unit Price incl. VAT
10
SCREW-TXPH-M6X1.0X14 8.8 A2K SHB
7519165
$25,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
