1
Engine displacement
700
2
Year
2006
3
Trim
RANGER XP 4x4 700 - R06RD68AA
4
Parts Catalog
CLUTCH COVER
5

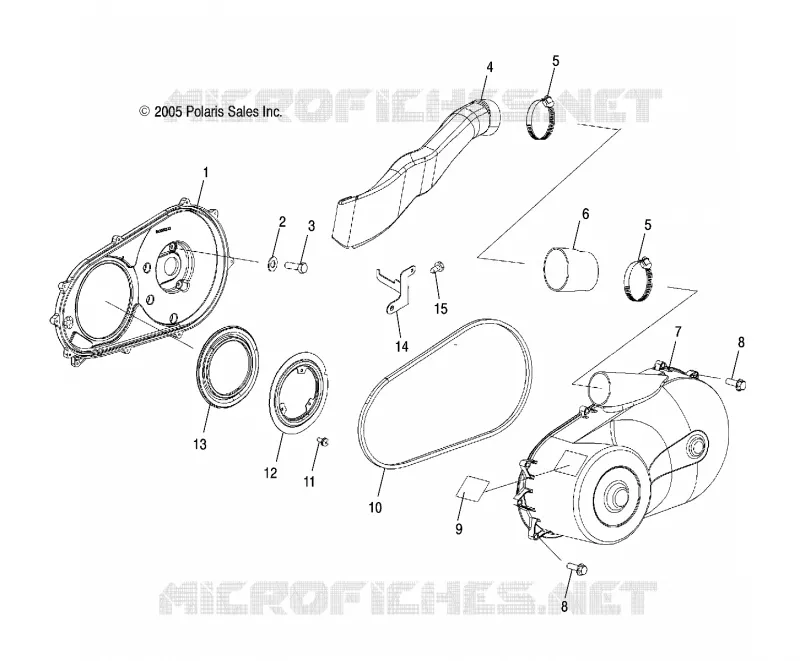

Parts Diagram
Parts Catalog
ENGINE CLUTCH AIR INTAKE
by
REAR GEARCASE
CLUTCH COVER
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
1
2
3
3
3
4
5
6
6
6
6
6
6
6
6
7
8
8
9
10
11
12
12
13
13
14
14
15
1
ASM. COVER CLUTCH INNER [INCL. 10 13]
2633120
$351,74 Unit Price incl. VAT
2
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
3
SCR-1/4-20X.88 HXWR TAPR GR5 Y
7517312
$2,09 Unit Price incl. VAT
4
Duct Clutch Air Outlet
5436194
Not Available
5
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
6
HOSE CLUTCH AIR OUTLET
5435684
$68,24 Unit Price incl. VAT
7
Cover Clutch Outer Black
5433451070
5438142-070
$346,49 Unit Price incl. VAT
8
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
9
DECAL WARNING CLUTCH COVER
7172563
Not Available
10
Seal Cover Clutch Outer
5521578
5526450
$78,74 Unit Price incl. VAT
11
Asm. Screw and Washer [INCL. 15 &16]
7517599
$10,49 Unit Price incl. VAT
12
Bracket Retainer Seal Black
5244527067
$62,99 Unit Price incl. VAT
13
Seal Cover Clutch Inner
5411918
5412635
$78,74 Unit Price incl. VAT
14
BRACKET CLUTCH OUTLET
5249223
$52,49 Unit Price incl. VAT
15
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
