1
Engine displacement
700
2
Year
2006
3
Trim
RANGER XP 4x4 700 - R06RD68AA
4
Parts Catalog
GEARCASE INTERNALS
5

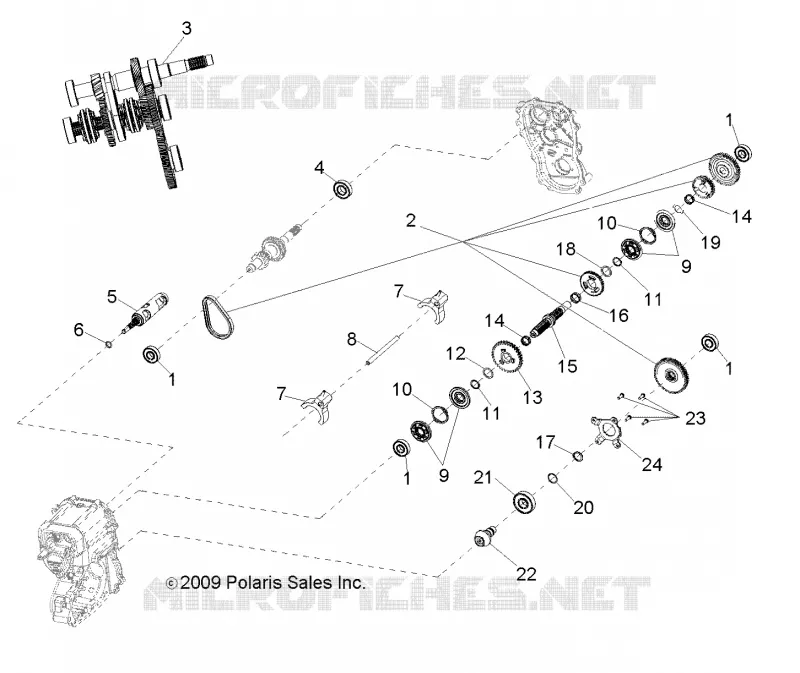

Parts Diagram
Parts Catalog
GEARCASE OUTPUT SHAFT
by
THROTTLE BODY MOUNTING
GEARCASE INTERNALS
-
8
9
9
10
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
-
Asm. Main Gearcase
1332307
$4 058,24 Unit Price incl. VAT
1
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
2
Subasm. Input Shaft/High Gear
3234834
$4 058,24 Unit Price incl. VAT
3
Kit Reverse Input [Service]
2203904
$4 058,24 Unit Price incl. VAT
4
BEARING
3233019
$54,59 Unit Price incl. VAT
5
DRUM SHIFT
3234212
$519,74 Unit Price incl. VAT
6
O-RING -113 VITON
3233840
$20,99 Unit Price incl. VAT
7
SUB-ASM. SHIFT FORK W/PIN
3234220
$309,74 Unit Price incl. VAT
8
RAIL SHIFT SHAFT
3233860
$99,74 Unit Price incl. VAT
9
ENGAGEMENT DOG
3233875
$309,74 Unit Price incl. VAT
10
SPRING WAVE
3234144
$52,49 Unit Price incl. VAT
11
RING RETAINING
3233850
$19,94 Unit Price incl. VAT
12
WASHER
3233851
$19,94 Unit Price incl. VAT
13
GEAR LOW 67T
3233852
$456,74 Unit Price incl. VAT
14
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
15
SHAFT REVERSE
3233892
$577,49 Unit Price incl. VAT
16
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
17
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
18
WASHER
3233894
$52,49 Unit Price incl. VAT
19
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
20
SPACER
3233357
$36,74 Unit Price incl. VAT
21
BEARING
3234055
$60,89 Unit Price incl. VAT
22
SUB-ASM. GROUND SPIRAL BEVEL [INCL. REF. 28 FROM DRIVE TRAIN MAIN GEARCASE INTERNAL PAGE]
3234911
$734,99 Unit Price incl. VAT
23
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
24
COVER BEARING CENTER DRIVE
3234122
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
