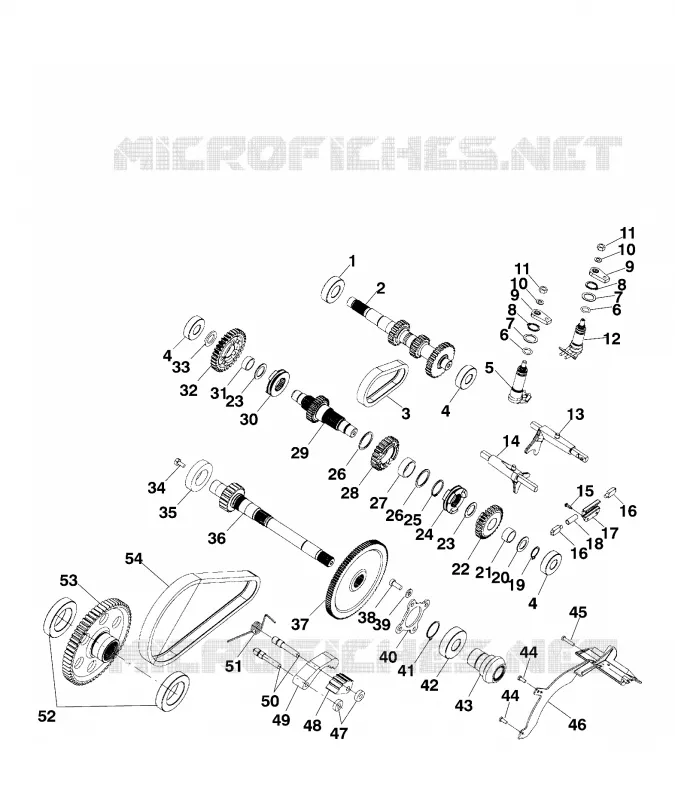

GEARCASE (INTERNAL COMPONENTS) FOR INTL DIESEL

GEARCASE SHAFT DIESEL98PRD (Incl. 1-54 and all on Gearcase - Cases and Snorkel Pg. C14)

1341283

Not Available

BEARING

3233019

$54,59 Unit Price incl. VAT

SHAFT INPUT 15T HCR HLR(DSL)

3233571

Not Available

CHAIN SILENT 34P

3233036

Not Available

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

SHAFT SHIFT H/R

3233342

Not Available

O-RING

3233548

$52,49 Unit Price incl. VAT

WASHER

3233040

$17,84 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT

BELLCRANK

3233153

$62,99 Unit Price incl. VAT

WASHER

3233054

$12,59 Unit Price incl. VAT

NUT

3233055

3233961

$5,24 Unit Price incl. VAT

SHAFT SHIFT LOW

3233258

Not Available

FORK ASM SHIFT LOW

3233259

Not Available

FORK ASM SHIFT H/R

3233260

Not Available

SCREW Substituted by 3233747

3233033

Not Available

PIN INTERLOCK

3233308

Not Available

BRACKET INTERLOCK

3233309

$33,06 Unit Price incl. VAT

SPRING

3233032

$26,24 Unit Price incl. VAT

RING RETAINING

3233177

$12,59 Unit Price incl. VAT

WASHER THRUST 1.270 X 0.793 X 0.065

3233176

$17,84 Unit Price incl. VAT

BEARING BALL

3233017

$60,89 Unit Price incl. VAT

GEAR 30T HCR

3233359

Not Available

WASHER

3233010

Not Available

DOG ENGAGEMENT HI/REV.

3233128

Not Available

RING RETAINING

3233029

$10,49 Unit Price incl. VAT

WASHER

3233012

Not Available

BEARING NEEDLE CAGE ASSY

3233014

$74,54 Unit Price incl. VAT

SPROCKET 24T

3233127

Not Available

SHAFT REV 29T HCR

3233362

Not Available

DOG ENGAGEMENT LOW

3233126

Not Available

BEARING NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$68,24 Unit Price incl. VAT

GEAR 36T HLR

3233572

$155,39 Unit Price incl. VAT

WASHER

3233007

Not Available

BUSHING SPEEDO.DRIVE

5020741

$14,48 Unit Price incl. VAT

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

SHAFT CTR DRIVE

3233485

Not Available

GEAR O/P 100T HCR

3233360

Not Available

SCREW

3233262

$3,14 Unit Price incl. VAT

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

COVER CTR.DRIVE BRG.

3233263

Not Available

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

GEAR 16T SPIRAL BEVEL SNORKEL

3233365

Not Available

SCREW

3233282

Not Available

SCREW

3233283

$3,66 Unit Price incl. VAT

DEFLECTOR OIL

3233284

Not Available

WASHER

3233435

Not Available

CAM CHAIN TENSIONER

3233434

$26,24 Unit Price incl. VAT

SHOE CHAIN TENSIONER

3233433

$62,99 Unit Price incl. VAT

PIN TENSIONER

3233432

$13,64 Unit Price incl. VAT

SPRING TORSION

3233431

$47,24 Unit Price incl. VAT

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

SPROCKET 60T Substituted by 3233670

3233429

Not Available

CHAIN SILENT

3233430

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
