DRIVE TRAIN, MAIN GEARCASE FOR SPORTSMAN 570 PREMIUM FROM 2020

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE MOUNTING

ASM. TRANSMISSION NO DIFFERENTIAL SINGLE [INCL. ALL]

1333302

$6 488,99 Unit Price incl. VAT

SEAL TRIPLE LIP NITRILE 1.969 X 2.750 X .315

3234300

$57,74 Unit Price incl. VAT

SUBASSEMBLY LH COVER PDS PEREGRINE

3236244

$908,24 Unit Price incl. VAT

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

CHAIN SILENT 17 WIDE X 1.0 X 86p

3234057

$519,74 Unit Price incl. VAT

CASE RH PDS PEREGRINE MACH

3236245

$1 065,74 Unit Price incl. VAT

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

SPROCKET 19T 1.00#

3234060

$451,49 Unit Price incl. VAT

DEFLECTOR OIL

3234061

3239943

$52,49 Unit Price incl. VAT

SCREW TAPPING TORX PH 11902 X.50

3233749

$10,49 Unit Price incl. VAT

GEAR OUTPUT 91T HRC

3234062

$493,49 Unit Price incl. VAT

RING RETAINING IRR 7200-118

3233699

$13,64 Unit Price incl. VAT

SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$10,49 Unit Price incl. VAT

COVER BEARING CENTER DRIVE

3234063

$62,99 Unit Price incl. VAT

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

SHIM 1.700 X 1.385

3234271

$47,24 Unit Price incl. VAT

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

PINION CENTER DRIVE 13T

3234263

$818,99 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL .787 SHAFT

3234067

$14,69 Unit Price incl. VAT

WASHER THRUST 1.270 X 0.793 X 0.065

3233176

$17,84 Unit Price incl. VAT

GEAR HELICAL-35T

3236032

$262,49 Unit Price incl. VAT

BEARING NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$68,24 Unit Price incl. VAT

WASHER 1.250 X 0.876 X 0.05

3233855

$19,94 Unit Price incl. VAT

ENGAGEMENT DOG 6-FACE L/P

3234257

$283,49 Unit Price incl. VAT

DOG ENGAGEMENT 6 FACE

3234258

$178,49 Unit Price incl. VAT

RING RETAINING BASIC EXT 0.938

3233306

$9,44 Unit Price incl. VAT

WASHER THRUST 1.300 X 0.995 X 0.065

3234248

$17,84 Unit Price incl. VAT

SPROCKET 38T 6 FACE

3234290

$283,49 Unit Price incl. VAT

SHAFT REVERSE 26T

3234280

$488,24 Unit Price incl. VAT

GEAR 33T 6 FACE

3234291

$325,49 Unit Price incl. VAT

COLLAR SHIFT

3234073

$57,74 Unit Price incl. VAT

PLATE PARK 12 FACE

3233915

$73,49 Unit Price incl. VAT

BEARING BALL 6203 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

SEAL TRIPLE LIP VITON HELIX 30 X 47

3234851

$68,24 Unit Price incl. VAT

BEARING

3233019

$54,59 Unit Price incl. VAT

SHAFT 39T INPUT HELICAL

3235526

$451,49 Unit Price incl. VAT

SILENT CHAIN .25P X 0.4 W X 50L

3234264

$188,99 Unit Price incl. VAT

FORK SHIFT

3234077

$335,99 Unit Price incl. VAT

SPRING COMPRESSION .92 O.D. X 2.000

3234078

$47,24 Unit Price incl. VAT

RAIL SHIFT SHAFT

3234079

3235542

$52,49 Unit Price incl. VAT

PIN TENSIONER

3233432

$13,64 Unit Price incl. VAT

SPRING TORSION

3233431

$47,24 Unit Price incl. VAT

CAM CHAIN TENSIONER

3233434

$26,24 Unit Price incl. VAT

SHOE CHAIN TENSIONER

3233433

$62,99 Unit Price incl. VAT

DRUM SHIFT MACH

3234360

$335,99 Unit Price incl. VAT

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

SHAFT SHIFT

3233831

$115,49 Unit Price incl. VAT

O-RING -014

3233869

$10,49 Unit Price incl. VAT

PAWL DETENT

3233829

$68,24 Unit Price incl. VAT

SPRING COMPRESSION 0.36 O.D. X 1.125

3234578

$26,24 Unit Price incl. VAT

COVER SECTOR GEARS MACHINED

3234188

$209,99 Unit Price incl. VAT

BELLCRANK .510 HOLE 92 ~

3234584

$52,49 Unit Price incl. VAT

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

SWITCH ROTARY 2 PIN RESISTIVE

7661999

$220,49 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

STAR DETENT

3233909

$52,49 Unit Price incl. VAT

O-RING 2-012

3233076

$11,54 Unit Price incl. VAT

GEAR 13T SNORKEL

3234262

$608,99 Unit Price incl. VAT

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL DIA 0.84

3234336

$10,49 Unit Price incl. VAT

TUBE SNORKEL MACHINED

3234278

$188,99 Unit Price incl. VAT

SCREW TORX TRUSS HD 43834 X 0.75

3234086

$10,49 Unit Price incl. VAT

SHIM 1.180 OD X 0.995 ID

3234272

$68,24 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

SEAL TRIPLE LIP VITON 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

PIN DOWEL 5/16 X 1.0

3234244

$13,64 Unit Price incl. VAT

PLUG 3/4-16 41775 INTERNAL HEX

3233794

$31,49 Unit Price incl. VAT

SPRING COMPRESSION 0.46 I.D. X 0.73

3234089

$52,49 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL 0.428

3234090

$19,94 Unit Price incl. VAT

WASHER CUP

3234091

$17,84 Unit Price incl. VAT

RING RETAINING BASIC INTERNAL 2.047

3234269

$17,84 Unit Price incl. VAT

SHIM 2.040 OD X 1.63 ID

3234273

$26,24 Unit Price incl. VAT

BEARING NEEDLE 25 X 29 X 10

3233103

$54,59 Unit Price incl. VAT

SENSOR-SPEED TRANS

4013908

4082135

$204,74 Unit Price incl. VAT

O-RING

3234302

$13,64 Unit Price incl. VAT

SUB-ASSY SHAFT 59T FINAL OUTPUT 1.00# WITH BEARING

3235604

$482,99 Unit Price incl. VAT

Disc Lockout

3235243

$17,84 Unit Price incl. VAT

MAGNETIC PLUG 3/4-16 INTERNAL HEX

3234529

3233794

$31,49 Unit Price incl. VAT

BRACKET WIRE HARNESS

3235350

$16,79 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for SPORTSMAN 570 PREMIUM

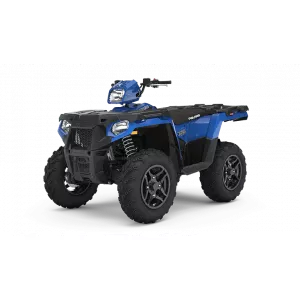

POLARIS SPORTSMAN 570 PREMIUM 2020

SPORTSMAN 570 PREMIUM

Model : SPORTSMAN 570 PREMIUM

Engine capacity : 570

Year : 2020
