1
Engine displacement
0
2
Year
1993
3
Trim
euro-lite-deluxe-e933431
4
Parts Catalog

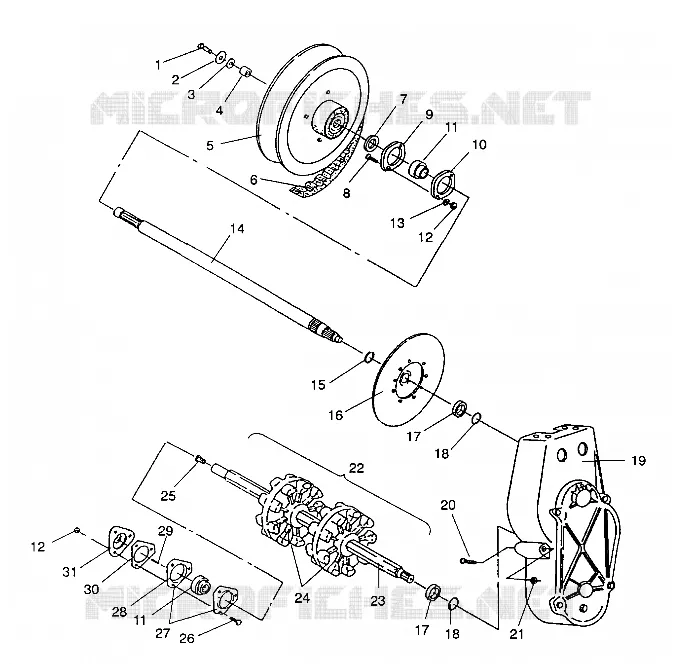

DRIVE TRAIN ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323015A)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323014A)
by
SUSPENSION ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323016A)
DRIVE TRAIN ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323015A)
1
SCREW
7515369
$9,44 Unit Price incl. VAT
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER DRIVEN CLUTCH (Deluxe)
5020645
5135611
$15,74 Unit Price incl. VAT
5
CLUTCH DRIVEN SPLINED
1322145
Not Available
6
BELT DRIVE(5) (Lite GT)
3211058
$102,47 Unit Price incl. VAT
6
BELT DRIVE (StarLite GT)
3211060
Not Available
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE W/GREASE GROOVE 2-BOLT
5222647
$47,24 Unit Price incl. VAT
10
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
11
BEARING Substituted by 3514518
3514513
Not Available
12
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
16
DISC ASM BRAKE
1910086
Not Available
17
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
18
O-RING
5410613
$3,66 Unit Price incl. VAT
20
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
21
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
22
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)
1590230
Not Available
23
DRIVE SHAFT Substituted by 6230083
6230067
Not Available
24
SPROCKET 9T
5430571
Not Available
25
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
26
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
27
FLANGETTE Substituted by 5222751
5222591
$26,24 Unit Price incl. VAT
28
FLANGETTE W/GREASE GROOVE Substituted by 5240252
5222581
Not Available
29
KEY SPEEDO RH DRIVE
3280117
Not Available
30
GASKET
5830012
$4,19 Unit Price incl. VAT
31
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
