1
Engine displacement
700
2
Year
1999
3
Trim
INTL SLTH - I994573
4
Parts Catalog

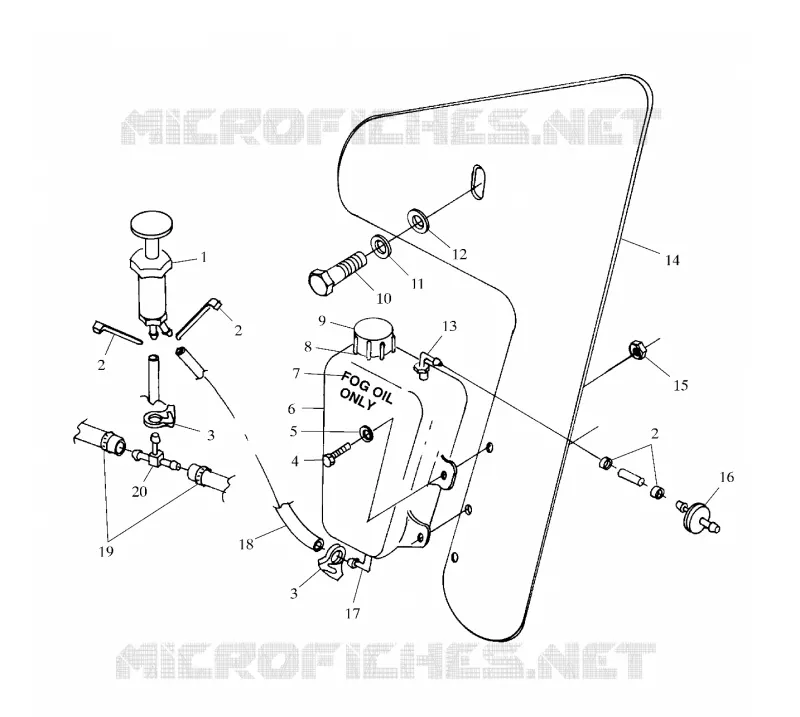

ENGINE FOGGING SYSTEM
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON
by
TOOL KIT
ENGINE FOGGING SYSTEM
-
1
2
2
2
3
3
4
5
6
7
8
9
10
10
10
13
14
15
16
17
18
19
20
-
1
2
2
2
3
3
4
5
6
7
8
9
10
10
10
13
14
15
16
17
18
19
20
-
FLUSH KIT(NON-FICHT ENGINES)
2871443
Not Available
1
PRIMER ENG. FOG
3160114
Not Available
2
STRAP PANDUIT 4 IN.(10)
7080483
Not Available
3
CLAMP HOSE(10)
7080484
Not Available
4
BOLT
7512045
$7,34 Unit Price incl. VAT
5
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
6
TANK OIL FOG KIT
5432362
$56,90 Unit Price incl. VAT
7
DECAL #FOG.OIL ONLY#
7075732
Not Available
8
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
9
CAP OIL BOTTLE
5432359
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
FITTING (10)
7052077
Not Available
14
BRKT OIL TANK Substituted by 2872014
5242941
Not Available
15
NUT
7541931
$9,44 Unit Price incl. VAT
16
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
17
FITTING 90 DEG.
7052138
Not Available
18
OILLINE (OD=5/16 ID=1/8) Substituted by 8450062-2
8450062
Not Available
19
CLAMP HOSE S.S.(10)
7080476
$11,54 Unit Price incl. VAT
20
FITTING T
7052139
$15,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
