1
Engine displacement
750
2
Year
2004
3
Trim
MSX 150 - W045305CA
4
Parts Catalog
COMPARTMENT DOOR
5

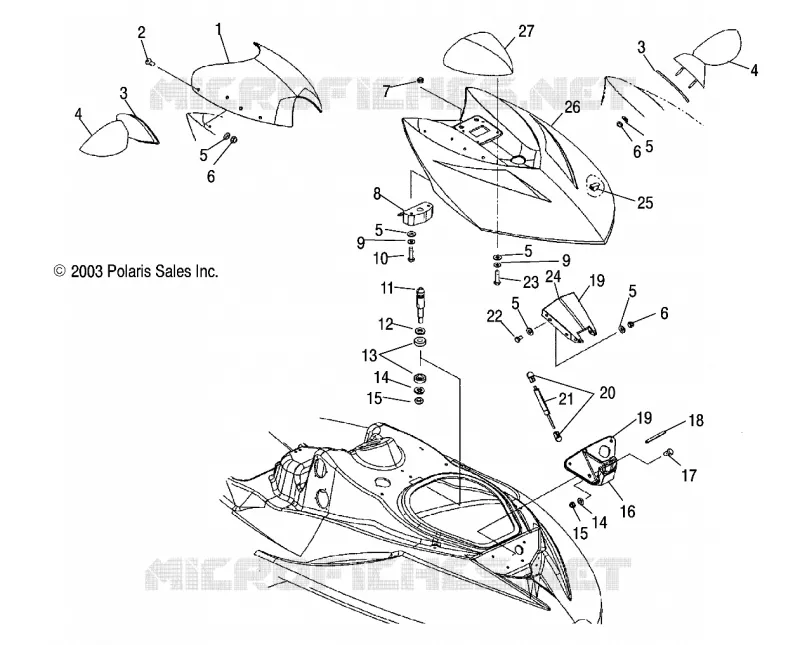

Parts Diagram
Parts Catalog
ECU MOUNTING
by
SHROUD STORAGE
COMPARTMENT DOOR
1
2
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
6
6
6
7
8
9
9
10
11
12
13
14
14
15
15
16
17
18
19
19
20
21
22
23
16
25
26
26
26
26
27
1
Windshield Smokin# Clear
5435307466
Not Available
2
Screw
7518042
$14,16 Unit Price incl. VAT
3
Gasket Mirror LH
5412344
Not Available
3
Gasket Mirror RH
5412345
Not Available
4
Asm. Mirror Catalina Blue LH [CC][IE]
2632908441
$198,96 Unit Price incl. VAT
4
Asm. Mirror Blk RH [CD][IF]
2632909070
$192,14 Unit Price incl. VAT
4
Asm. Mirror Solar Red RH [CB]
2632909444
$192,14 Unit Price incl. VAT
4
Asm. Mirror Turbo Silver RH [CA][If built before 2/1/04]
2632519445
Not Available
4
Asm. Mirror Solar Red LH [CB]
2632908444
$192,14 Unit Price incl. VAT
4
Asm. Mirror Turbo Silver LH [CA][If built before 2/1/04]
2632518445
Not Available
4
Asm. Mirror Blk LH [CD][IF]
2632908070
$211,56 Unit Price incl. VAT
4
Asm. Mirror Turbo Silver RH [CA]
2632909445
Not Available
4
Asm. Mirror Turbo Silver LH [CA]
2632908445
$185,84 Unit Price incl. VAT
4
Asm. Mirror Catalina Blue RH [CC][IE]
2632909441
$192,14 Unit Price incl. VAT
5
WASHER-6.4MMX18X1.6 SS
7556094
$9,44 Unit Price incl. VAT
6
NUT NYLOCK SS.(10)
7546704
$2,82 Unit Price incl. VAT
7
NUT 6 MM. S.S.(10)
7546705
$9,44 Unit Price incl. VAT
8
Latch
7081088
Not Available
9
WASHER LOCK(10)
7552613
Not Available
10
SCREW SS.
7517528
Not Available
11
Plunger
5134119
Not Available
12
WASHER FLAT(10)
7555841
Not Available
13
Bumper Rubber Latch Post
5412299
Not Available
14
WASHER FLAT S.S.(10)
7555831
Not Available
15
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
Screw
7518185
Not Available
18
Pin Dowel
5133641
Not Available
19
Asm. Hinge Front [Incl. 15 16 21 24]
2632863
$132,29 Unit Price incl. VAT
20
End Gas Shock
5435401
Not Available
21
Spring Gas
7042260
Not Available
22
BOLT(10)
7516807
Not Available
23
SCR-M6X1X16 HX/FL-SS
7518187
$7,34 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
CLIP WIRE HARNESS (10)
7080703
Not Available
26
Door Compartment Catalina Blue [CC][IE]
5434520441
Not Available
26
Door Compartment Turbo Silver [CA]
5434520445
Not Available
26
Door Compartment [CB][IB]
5434520444
Not Available
26
Door Compartment Stealth Blk [CD][IF]
54345201093
Not Available
27
Gauge NGI
3280458
$718,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
