1
Engine displacement
500
2
Year
2004
3
Trim
500 / 600 XC SP EDGE / M-10
4
Parts Catalog
DRIVE CLUTCH (MANUAL START MODELS)
5
Parts Diagram
Parts Catalog
SHOCK COMPRESSION DAMPING RESERVOIR (EDGE)
by
DRIVE CLUTCH (ELECTRIC START MODELS)

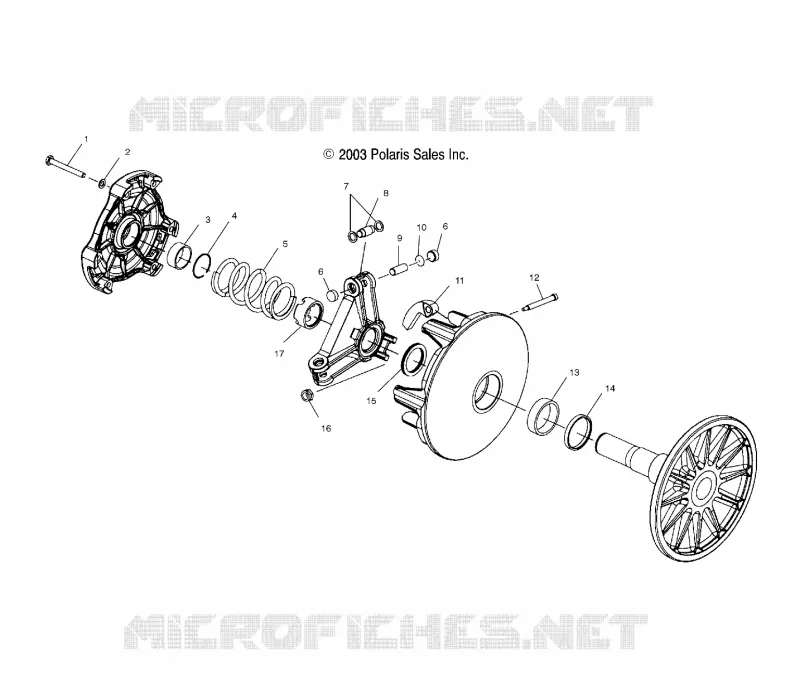

DRIVE CLUTCH (MANUAL START MODELS)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
-
1
2
3
4
5
5
6
6
7
8
9
10
11
11
12
13
14
15
15
15
15
16
17
-
ASM-DRIVE CLUTCH BASIC 114 W/B (Incl. All Less 5 9)
1321928
1322565
$1 049,99 Unit Price incl. VAT
1
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
2
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
3
BEARING COVER GARMAX
3576516
$62,99 Unit Price incl. VAT
4
RING RETAINING COVER
7710417
$2,09 Unit Price incl. VAT
5
SPRING DRIVE CLUTCH BLACK/GREEN
7042083
$115,49 Unit Price incl. VAT
5
SPRING CLUTCH DARK BLUE/WHITE
7041781
7043681
$115,49 Unit Price incl. VAT
6
BUTTON GUIDE
5430445
$11,54 Unit Price incl. VAT
7
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
8
ASM. ROLLER AND BUSHING
1321622
$62,99 Unit Price incl. VAT
9
PIN ROLLER
5133079
$11,54 Unit Price incl. VAT
10
Kit - Shim Drive Clutch
2200387
$47,24 Unit Price incl. VAT
11
WT/BUSH.ASM 10-56(6) (10-56) (RMK)
1321684
$89,24 Unit Price incl. VAT
11
ASM-WEIGHT/BUSHING (10-58)
1321588
$73,49 Unit Price incl. VAT
12
PIN HARDENED WEIGHT
7515105
$26,24 Unit Price incl. VAT
13
SLEEVE BEARING
3576502
$40,94 Unit Price incl. VAT
14
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
15
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
15
SPACER-1.350X1.750X.025-Y
5242981
$7,34 Unit Price incl. VAT
15
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
15
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
16
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
17
Nut Jam
5020425
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
