1
Engine displacement
570
2
Year
2016
3
Trim
RGR 570 EFI CREW
4
Parts Catalog
STEERING
5

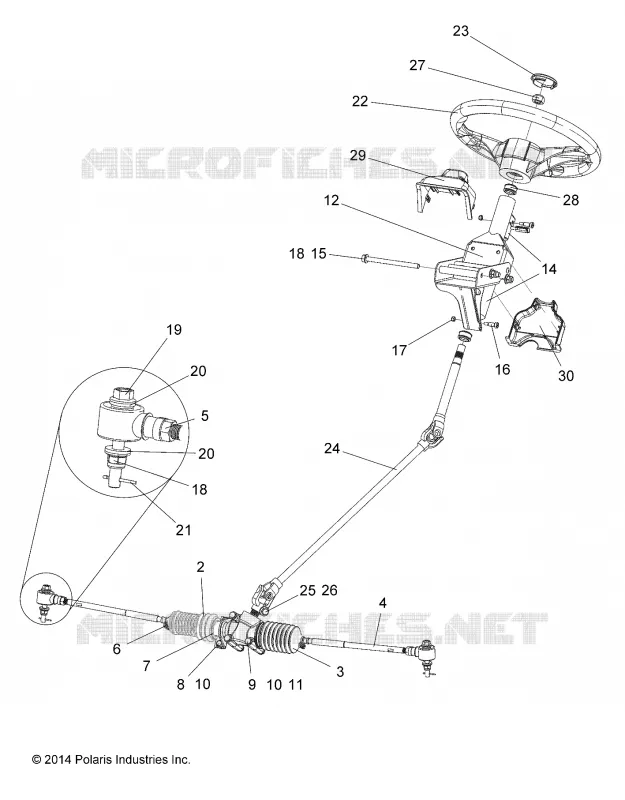

Parts Diagram
Parts Catalog
ENGINE, WATERPUMP IMPELLER AND COVER
by
SUSPENSION, FRONT STRUT
STEERING
1
2
2
2
2
2
2
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
1
ASM. GEARBOX STEERING
1824165
$1 018,49 Unit Price incl. VAT
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
9
BOLT-M8X1.25X95 HX BOLT
7518935
$3,14 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
12
ASM-TILT STEERING RVTD M10 BLK [INCL.10]
1824420458
$283,49 Unit Price incl. VAT
13
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
14
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
15
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
16
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
17
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
18
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
19
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519854
$31,49 Unit Price incl. VAT
20
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
21
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
22
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
23
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
24
SHAFT STEERING UPPER/LOWER
1824162
$272,99 Unit Price incl. VAT
25
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
26
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
27
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
28
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
29
COVER-STEERING COLUMN UPR BLK
5451478070
$29,39 Unit Price incl. VAT
30
COVER-STEERING COLUMN LWR BLK
5451479070
$29,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
