SUSPENSION, RAIL, LH/RH FOR 550 LIBERTY VOYAGEUR LXT 144 / NORTH EDITION FROM 2024

ELECTRICAL, SWITCHES AND COMPONENTS

REAR SUSPENSION AND TRACK

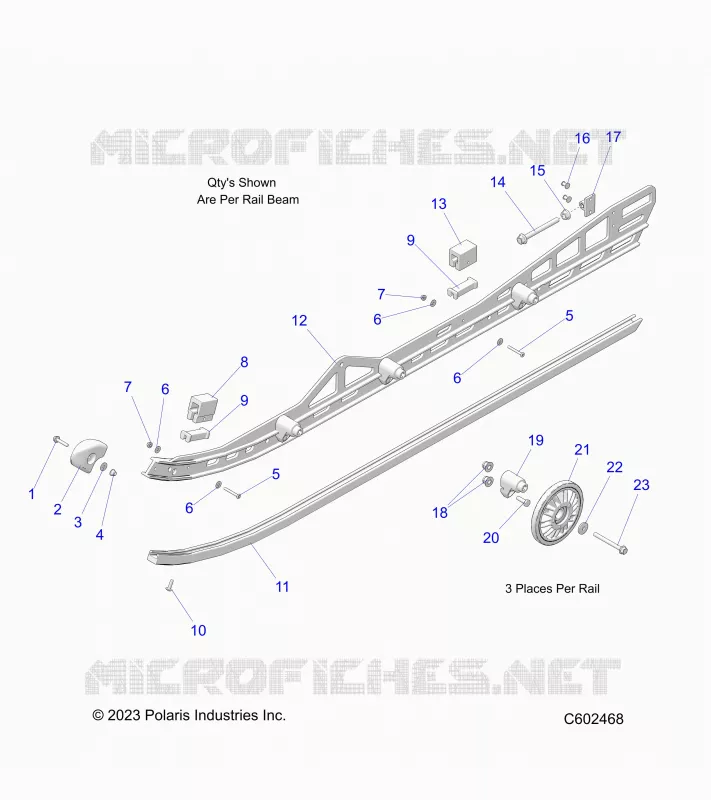

SUSPENSION, RAIL, LH/RH

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

CAP RAIL TIP

5438374

$36,74 Unit Price incl. VAT

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

6

WASHER-M5.3X15X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

8

BUMPER JOUNCE REAR COIL-OVER

5521498

$16,79 Unit Price incl. VAT

9

Liner Bumper

5432946

$19,94 Unit Price incl. VAT

10

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

11

SLIDER SVC NATURAL

5521633309

$73,49 Unit Price incl. VAT

12

ASM. RAIL BSC COIL OVER 144 RH [INCL. 1-9 13 16 17]

1542952

$871,49 Unit Price incl. VAT

12

ASM. RAIL BSC COIL OVER 144 LH [INCL. 1-9 13 16 17]

1542951

$871,49 Unit Price incl. VAT

13

BUMPER

5521812

$13,64 Unit Price incl. VAT

14

SCR-HXFL-M10X1.5X100 8.8 ZOD

7519167

$17,84 Unit Price incl. VAT

15

NUT-HXFL-M10X1.50 10 ZPC

7547017

$10,49 Unit Price incl. VAT

16

RIVET

7621501

$4,19 Unit Price incl. VAT

17

BLOCK IDLER BOLT ADJUSTABLE

5136570

$62,99 Unit Price incl. VAT

18

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

19

BLOCK WHEEL MOUNT

5631446

$47,24 Unit Price incl. VAT

20

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$6,29 Unit Price incl. VAT

21

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$34,64 Unit Price incl. VAT

21

RING RETAINING

7710444

$15,74 Unit Price incl. VAT

21

ASM. WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

22

WASHER-SPRING CON 5/16X.118ZOD

7556489

$2,51 Unit Price incl. VAT

23

SCR-HXFL M8X1.25X80 8.8 ZOD

7519217

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
