1
Engine displacement
0
2
Year
1997
3
Trim
STORM S.E. - H975782
4
Parts Catalog

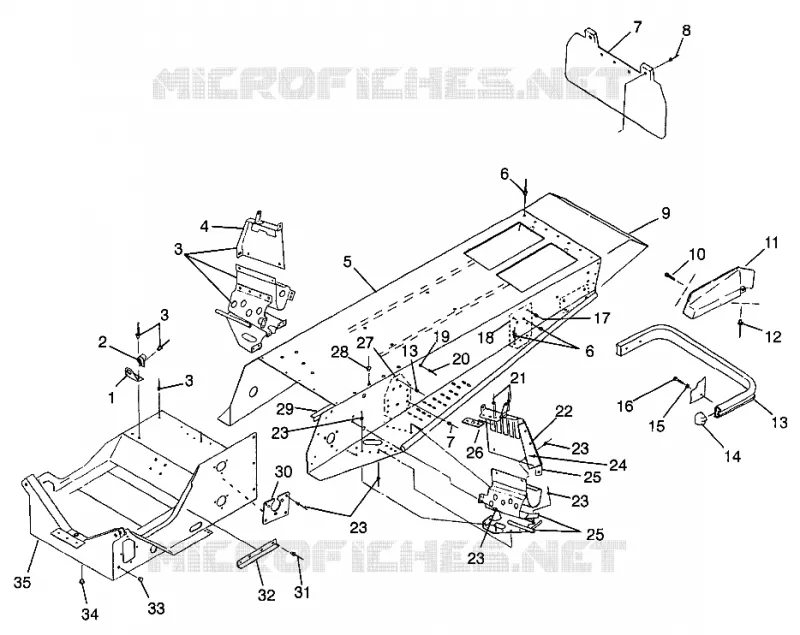

TUNNEL (RMK) STORM RMK 0975982 (4937823782A006)
5
Parts Diagram
Parts Catalog
TUNNEL (STORM/STORM S.E.) STORM 0975782, STORM S.E. H975782, EUROPEAN STORM (4937823782A005)
by
HOOD STORM 0975782, STORM S.E. H975782, EUROPEAN STORM S.E. E975782, AND S (4937823782A011)
TUNNEL (RMK) STORM RMK 0975982 (4937823782A006)
1
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
2
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
3
FOOTREST RH
1012281
Not Available
4
MOUNT RH CONSOLE Substituted by 5242493-067
5240864067
Not Available
5
TUNNEL SKS STORM (SKS RMK)
1012288
Not Available
6
RIVET SEMI-TUBE (50)
7661840
Not Available
7
FLAP SNOW (XTRA-10) Substituted by 5432149-1106
5432149
Not Available
8
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
9
PANEL R.CLOSEOFF
5240968067
$58,16 Unit Price incl. VAT
10
SCREW
7512091
$7,34 Unit Price incl. VAT
11
SKIRT SNOW LH
5432049070
$54,38 Unit Price incl. VAT
11
SKIRT SNOW RH
5432050070
Not Available
12
RIVET (50)
7621342
$1,04 Unit Price incl. VAT
13
BUMPER REAR BLACK Substituted by 2670168
2670169
Not Available
14
CAP BUMPER
5431995070
Not Available
15
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
16
SCREW(10)
7515159
$9,44 Unit Price incl. VAT
17
RIVET SEMI-TUBE (50)
7661841
$1,04 Unit Price incl. VAT
18
BRKT RH R.SUSP BLK.
1012564067
Not Available
18
BRKT LH R.SUSP BLK.
1012563067
Not Available
19
SNAP-MALE(10)
7080227
Not Available
20
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
21
RIVET(50)
7661850
$1,56 Unit Price incl. VAT
22
MOUNT LH CONSOLE
5240863067
Not Available
23
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
24
BRKT RH CORNERBRACE
5241321067
Not Available
24
BRKT LH CORNERBRACE
5241320067
Not Available
25
FOOTREST LH
1012280
Not Available
26
PLATE CLUTCH GUARD MT.
1012441
Not Available
27
PAD RH FR.SUSP.MTG. Substituted by 5244287-067
5241304067
Not Available
27
PAD LH FR.SUSP.MTG. Substituted by 5244287-067
5241303067
Not Available
28
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
29
BRACE TUNNEL REIN.(SKS)
5240923
Not Available
30
PLATE BRG.SUPPORT B#HD.
5211806067
Not Available
31
RIVET INTERLOCK(50) Substituted by 7661130
7661639
7661130
$2,09 Unit Price incl. VAT
32
GUARD ADAPTER GUIDE
5222857
$26,24 Unit Price incl. VAT
33
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
34
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
35
BULKHEAD BLK
1012460067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
