1
Engine displacement
500
2
Year
2000
3
Trim
SPORTSMAN 500 - A00CH50AE
4
Parts Catalog
FRONT HOUSING
5

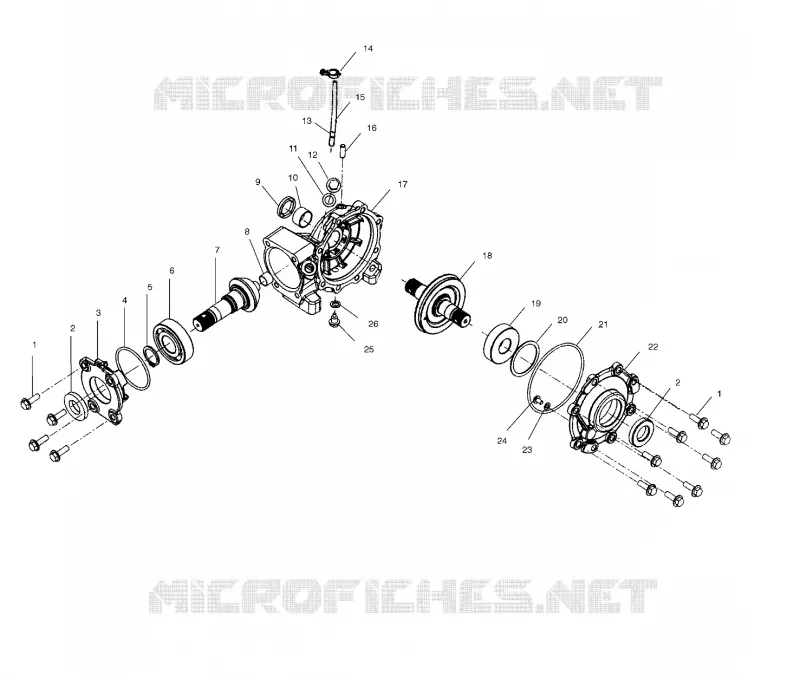

Parts Diagram
Parts Catalog
GEAR SELECTOR
by
FRONT HOUSING
FRONT HOUSING
-
GEARCASE ASM FRONT Substituted by 1341323 (Incl. 1-12 16-26 ) NOTE: Used on Machines Built Before 7/01/99 and After 11/09/98
1341276
$1 900,49 Unit Price incl. VAT
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
3
INPUT COVER-FRONT HOUSING
3233701
Not Available
4
O-RING
3233700
Not Available
5
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
6
BEARING BALL
3233589
$101,84 Unit Price incl. VAT
7
PINION-INPUT
3233698
Not Available
8
BUSHING GARLOCK
3233541
$41,99 Unit Price incl. VAT
9
SEAL
3233319
$52,49 Unit Price incl. VAT
10
BUSHINHG-GARLOCK
3233697
Not Available
11
WASHER
3233324
$13,64 Unit Price incl. VAT
12
PLUG OIL FILL
3233711
Not Available
13
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
14
Clip Snap-In .375 Inch
7080756
$9,44 Unit Price incl. VAT
15
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
16
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
17
GEARCASE
3233696
Not Available
18
OUTPUT SHAFT-FRONT HOUSING
3233694
Not Available
18
GEAR 29T-FRONT HOUSING
3233695
$293,46 Unit Price incl. VAT
18
SUBASM-OUTPUT SHAFT FRT HSG
3233710
Not Available
19
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
20
Shim
3233554
$62,99 Unit Price incl. VAT
21
O-RING
3233693
Not Available
22
OUTPUT COVER-FRONT HOUSING
3233692
Not Available
23
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
24
BUTTON-THRUST
3233702
Not Available
25
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
26
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
