1
Engine displacement
850
2
Year
2022
3
Trim
850 RMK KHAOS MATRYX SLASH 155
4
Parts Catalog

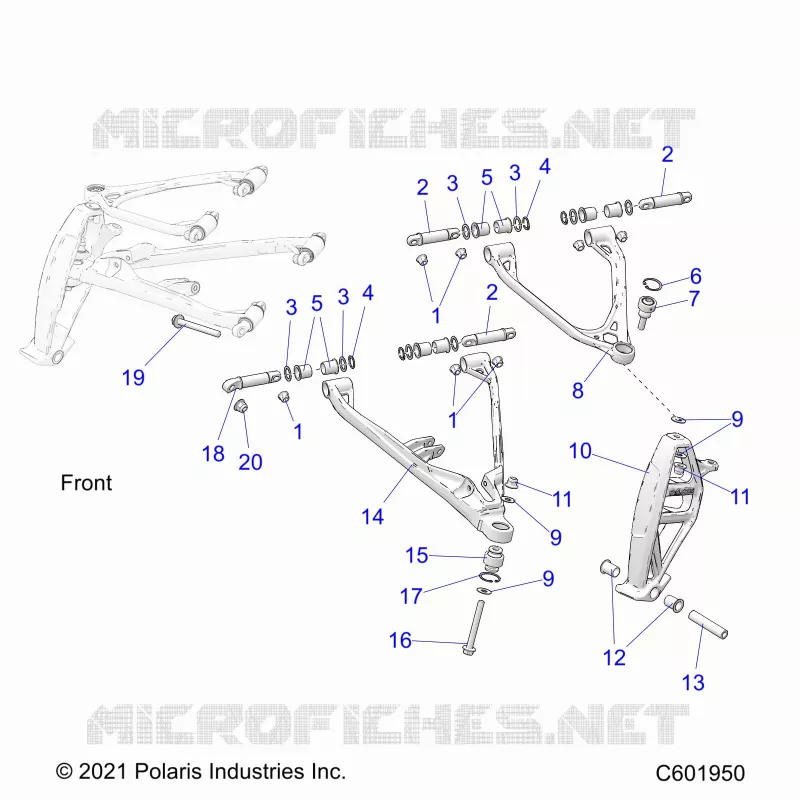

SUSPENSION, CONTROL ARMS, AND SPINDLE
5
Parts Diagram
Parts Catalog
SWAY BAR
by
SUSPENSION, IFS SHOCKS MNTG.
SUSPENSION, CONTROL ARMS, AND SPINDLE
1
1
1
2
2
2
3
3
3
3
4
4
5
5
6
15
8
8
8
8
9
9
9
10
10
10
10
10
10
10
10
10
10
11
11
12
13
14
14
14
14
15
16
17
18
19
20
1
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
2
SHAFT PIVOT GROOVED
5140556
$52,49 Unit Price incl. VAT
3
WASHER
7556959
$1,56 Unit Price incl. VAT
4
BUSHING PIVOT SHORT
5454428
$7,34 Unit Price incl. VAT
5
RING RETAINING 18MM
7710786
$3,14 Unit Price incl. VAT
6
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
7
WRENCH-8MMX10MM OPEN END
Not Available
8
ASM-UPPER CONTROL ARM NRW LH NATURAL [INCL. 2-7][COLOR OPT.]
1824654309
$335,99 Unit Price incl. VAT
8
ASM-UPPER CONTROL ARM NRW RH BLK [INCL. 2-7][COLOR OPT.]
1824655067
$335,99 Unit Price incl. VAT
8
ASM-UPPER CONTROL ARM NRW RH NATURAL [INCL. 2-7][COLOR OPT.]
1824655309
$335,99 Unit Price incl. VAT
8
ASM-UPPER CONTROL ARM NRW LH BLK [INCL. 2-7][COLOR OPT.]
1824654067
$335,99 Unit Price incl. VAT
9
WASHER
7556545
$6,29 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH ORANGE BURST [INCL. 12][COLOR OPT.]
1824649647
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH [INCL. 12][COLOR OPT.]
1824650
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH STHGRY [INCL. 12][COLOR OPT.]
1824650804
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH BLACK [INCL. 12][COLOR OPT.]
1824650067
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH LIME SQUEEZE [INCL. 12][COLOR OPT.]
1824649630
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH BLK [INCL. 12][COLOR OPT.]
1824649067
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH [INCL. 12][COLOR OPT.]
1824649
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH ORANGE BURST [INCL. 12][COLOR OPT.]
1824650647
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH STHGRY [INCL. 12][COLOR OPT.]
1824649804
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH LIME SQZE [INCL. 12][COLOR OPT.]
1824650630
$419,99 Unit Price incl. VAT
11
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
12
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
13
BUSHING
5136910
$13,64 Unit Price incl. VAT
14
ASM-LOWER CONTROL ARM NRW RH BLK [INCL. 2-5 15 17 18][COLOR OPT.]
1824653067
$451,49 Unit Price incl. VAT
14
ASM-LOWER CONTROL ARM NRW LH NATURAL [INCL. 2-5 15 17 18][COLOR OPT.]
1824652309
$351,74 Unit Price incl. VAT
14
ASM-LOWER CONTROL ARM NRW LH BLK [INCL. 2-5 15 17 18][COLOR OPT.]
1824652067
$451,49 Unit Price incl. VAT
14
ASM-LOWER CONTROL ARM NRW RH NATURAL [INCL. 2-5 15 17 18][COLOR OPT.]
1824653309
$351,74 Unit Price incl. VAT
15
WRENCH-8MMX10MM OPEN END
Not Available
16
BOLT-M10X1.25X85MM HXFLG OLV D
7520152
$5,99 Unit Price incl. VAT
17
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
18
SHAFT PIVOT LCA FRONT GROOVED
5140557
$52,49 Unit Price incl. VAT
19
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
