1
Engine displacement
500
2
Year
2002
3
Trim
SCRAMBLER 500 4X4 FREEDOM - A02BG50AC
4
Parts Catalog
CONTROLS
5

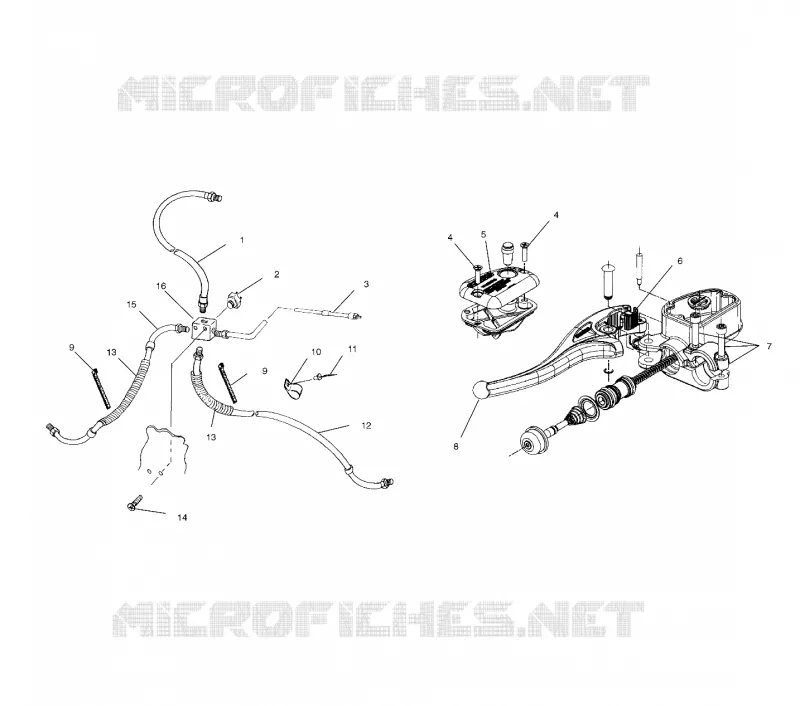

Parts Diagram
Parts Catalog
PROP SHAFT
by
REAR BRAKE MASTER CYLINDER
CONTROLS
-
MASTER CYL 3/4 PT WW LH (Incl. 1-16)
2010197
2010239
$456,74 Unit Price incl. VAT
1
LINE-BRAKE POD SS PT
1910501
$167,99 Unit Price incl. VAT
2
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
3
LINE-BRAKE JB TO REAR SS CDS
1910504
Not Available
4
Screw
7517899
$2,09 Unit Price incl. VAT
5
Kit Master Cylinder Cap [Incl. Cap Screws Sight Gasket]
2201834
2202725
$99,74 Unit Price incl. VAT
6
Kit Master Cylinder Park Brake Lever [Incl. Lever Spring]
2201836
$83,99 Unit Price incl. VAT
7
Kit Master Cylinder Clamp [Incl. Clamp Screws]
2201833
$89,24 Unit Price incl. VAT
8
Kit Master Cylinder Lever [Incl. Pin Lever Clip]
2201835
$115,49 Unit Price incl. VAT
9
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
10
CLAMP-NYLON CABLE 1/4#
7080539
$9,44 Unit Price incl. VAT
11
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
12
LINE-BRAKE FRONT LEFT SS LT
1910502
Not Available
13
TUBING-CONVOLUTED .500 ID 34CM Substituted by 8360052-305
836005234
$62,99 Unit Price incl. VAT
14
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
15
LINE-BRAKE FRONT RIGHT SS LT
1910503
Not Available
16
FITTING-CROSS ATV BRAKE
7052292
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
