1
Engine displacement
1000
2
Year
2018
3
Trim
RZR XP 1000
4
Parts Catalog
REAR SUSPENSION SHOCK INTERNALS
5
Parts Diagram
Parts Catalog
REAR SUSPENSION SHOCK MOUNTING
by

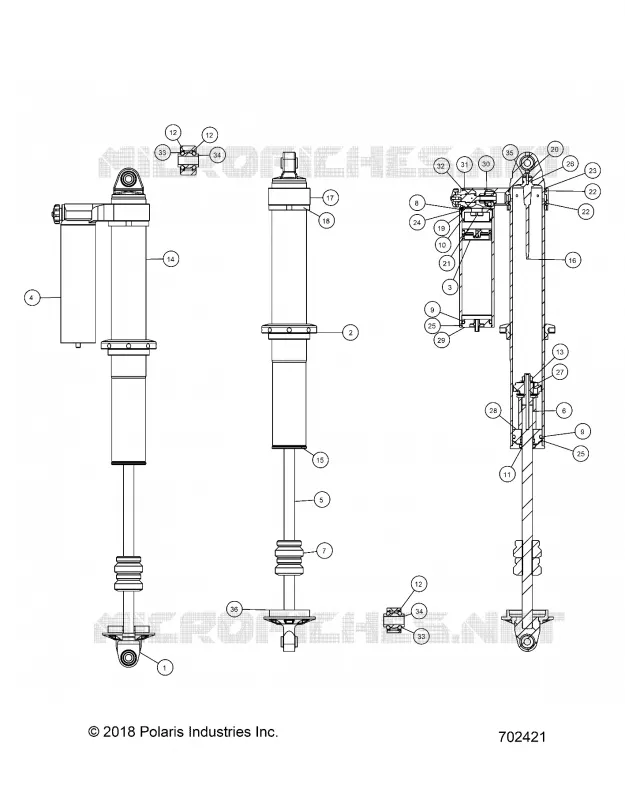

REAR SUSPENSION SHOCK INTERNALS
-
1
2
3
4
5
6
7
8
9
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
28
29
30
31
32
33
33
34
34
35
36
-
SHOCK-REAR
7044902
$1 333,49 Unit Price incl. VAT
1
42629 HEIM SHAFTLOOP (CLEAR)
1800555
$440,99 Unit Price incl. VAT
2
2.5IN SPRING NUT (CLEAR)
1800836
$162,74 Unit Price incl. VAT
3
RES PISTON 2.5IN ASM
1800752
$272,99 Unit Price incl. VAT
4
2.5IN 8.5L PB RES CAN WR (HARD CLEAR)
1800837
$314,99 Unit Price incl. VAT
5
3/4in SS CHROME NEEDLE SHAFT 18.295L
1800620
$440,99 Unit Price incl. VAT
6
SPACER 2.287L
1800610
$115,49 Unit Price incl. VAT
7
1.25 BUMP STOP LG
1800201
1800593
$125,99 Unit Price incl. VAT
8
O-RING 2-033
1800613
$20,99 Unit Price incl. VAT
9
O-RING 2-327
1800508
$10,49 Unit Price incl. VAT
10
O-RING 2-225
1800500
$3,66 Unit Price incl. VAT
11
WIPER 2.5IN SH .75SHAFT
1800506
$83,99 Unit Price incl. VAT
12
RING- RETAIN (SNAP)
1800482
$20,99 Unit Price incl. VAT
13
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
14
BODY MONOTUBE 2.5 REAR W NEEDLE HARD CLEAR 21.070L
1800838
$545,99 Unit Price incl. VAT
15
WIPER CAP 2.5 X 0.75 PRESS FIT
1800839
$89,24 Unit Price incl. VAT
16
NEEDLE 1 PC PRESS IN
1800840
$104,99 Unit Price incl. VAT
17
BRIDGE 2.5 WER ADJUSTER (CLEAR)
1800841
$482,99 Unit Price incl. VAT
18
2.5IN CROSSOVER RING/ JAM NUT
1800842
$68,24 Unit Price incl. VAT
19
MOUNT RESERVOIR
1800488
$167,99 Unit Price incl. VAT
20
#8-32 X .500 LOW HEAD SCREW
1800843
$9,44 Unit Price incl. VAT
21
SCREW SOCK CAP 1/4-20 X .5#
1800754
$6,29 Unit Price incl. VAT
22
O-RING 2-230
1800497
$10,49 Unit Price incl. VAT
23
2.48 X 0.0625 WIRE RING
1800846
$15,74 Unit Price incl. VAT
24
O-RING 2-134
1800502
$3,66 Unit Price incl. VAT
25
ID RETAINING RING 2.5#
1800847
$41,99 Unit Price incl. VAT
26
O-RING
1800095
$2,09 Unit Price incl. VAT
27
PISTON ASM NO BLEED (W/OUT VALVING)
1800659
$209,99 Unit Price incl. VAT
28
ASM. 2.5 SEAL HEAD 0.75 SHAFT PRESS IN
1800845
$204,74 Unit Price incl. VAT
29
ASM. END CAP 2.5 SCHRAEDER
1800844
$241,49 Unit Price incl. VAT
30
VALVE CHECK ASSEMBLY
1800848
$115,49 Unit Price incl. VAT
31
O-RING 2-122
1800503
$3,14 Unit Price incl. VAT
32
ASM. SS RETENTION NUT (GOLD)
1800857
$204,74 Unit Price incl. VAT
33
O-RING 2-312 1000312
1800810
$6,81 Unit Price incl. VAT
34
BEARING HCOM9T-12MM
1800880
$80,84 Unit Price incl. VAT
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
RETAINER-SPRING 2.5#
1501211
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
