1
Engine displacement
90
2
Year
2005
3
Trim
PREDATOR 90
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
by
SWING ARM/FOOTREST

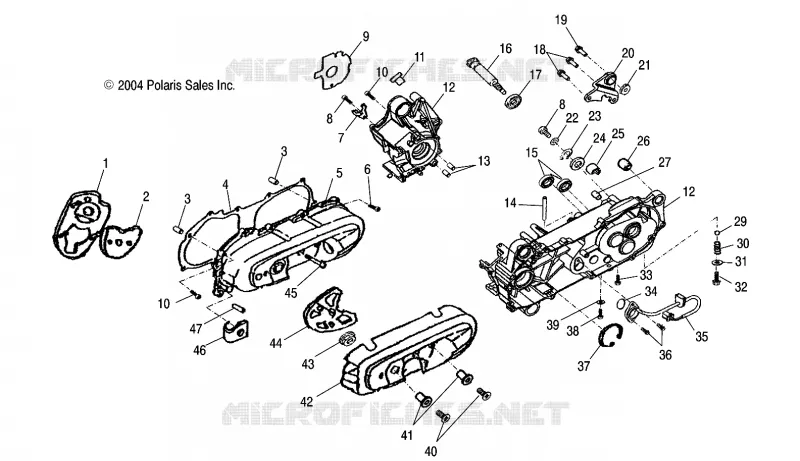

CRANKCASE
1
2
3
3
4
5
6
7
8
8
9
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
Protector A
0450166
Not Available
2
Filter
0450164
$15,00 Unit Price incl. VAT
3
PIN DOWEL
0450142
$7,34 Unit Price incl. VAT
4
Gasket Crankcase Cover LH
0450141
$57,74 Unit Price incl. VAT
5
Cover Clutch
0451671
Not Available
6
Screw Socket Hex
0450148
$7,34 Unit Price incl. VAT
7
Bracket Oil Seal
0450157
Not Available
8
Bolt Socket Hex
0450158
$10,49 Unit Price incl. VAT
9
Gasket Generator
0450159
$14,69 Unit Price incl. VAT
10
Bolt Socket
0450138
Not Available
11
Plug Rubber
0450170
$10,49 Unit Price incl. VAT
12
Asm. Crankcase
0454187
Not Available
13
Pin Dowel
0450137
$3,98 Unit Price incl. VAT
14
Breather Crankcase Upper
0452127
$13,64 Unit Price incl. VAT
15
Bearing Needle
0450254
$40,94 Unit Price incl. VAT
16
Shaft Primary Drive
0452130
Not Available
17
BEARING
0450199
$54,59 Unit Price incl. VAT
18
Bolt Hex Washer Face
0450298
$4,19 Unit Price incl. VAT
19
Bolt Hex Washer Face
0450684
$9,44 Unit Price incl. VAT
20
Mount Engine Rear
0452131
Not Available
21
Bushing Rubber
0450132
Not Available
22
WASHER PLAIN
0450041
$9,44 Unit Price incl. VAT
23
Circlip External
0450198
$9,44 Unit Price incl. VAT
24
Seal Oil
0450200
$20,99 Unit Price incl. VAT
25
Bearing Needle
0452139
$34,64 Unit Price incl. VAT
26
BUSHING RUBBER
0451139
$13,64 Unit Price incl. VAT
27
Breather Crankcase Lower
0452125
$20,99 Unit Price incl. VAT
29
BALL STEEL
0452134
$10,49 Unit Price incl. VAT
30
SPRING DETENT
0452135
$2,51 Unit Price incl. VAT
31
WASHER FLAT
0452136
$7,34 Unit Price incl. VAT
32
Bolt Hex
0452137
$13,64 Unit Price incl. VAT
33
Bolt Hex Washer Face
0452126
$9,44 Unit Price incl. VAT
34
O-RING GEAR POSITION SENSOR
0452129
$3,14 Unit Price incl. VAT
35
SENSOR GEAR POSITION
0452128
0455508
$62,99 Unit Price incl. VAT
36
Bolt Hex Flange
0452138
$6,29 Unit Price incl. VAT
37
Ring Snap Internal
0450162
$10,49 Unit Price incl. VAT
38
BOLT DRAIN PLUG
0452132
$9,44 Unit Price incl. VAT
39
WASHER FLAT
0452133
$7,34 Unit Price incl. VAT
40
Bolt Flat Head Phillips
0450167
$9,44 Unit Price incl. VAT
41
Grommet
0450168
Not Available
42
Gaurd Clutch Cover
0451672
Not Available
43
Nut Hex Flange
0450150
$2,09 Unit Price incl. VAT
44
Protector B
0450152
Not Available
45
Bolt Socket Hex
0450151
Not Available
46
Bracket Carburetor Tube
0450160
0455052
$9,44 Unit Price incl. VAT
47
Shaft Pin
0450147
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
