1
Engine displacement
570
2
Year
2015
3
Trim
sportsman-ace-570-efi
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
SENSORS

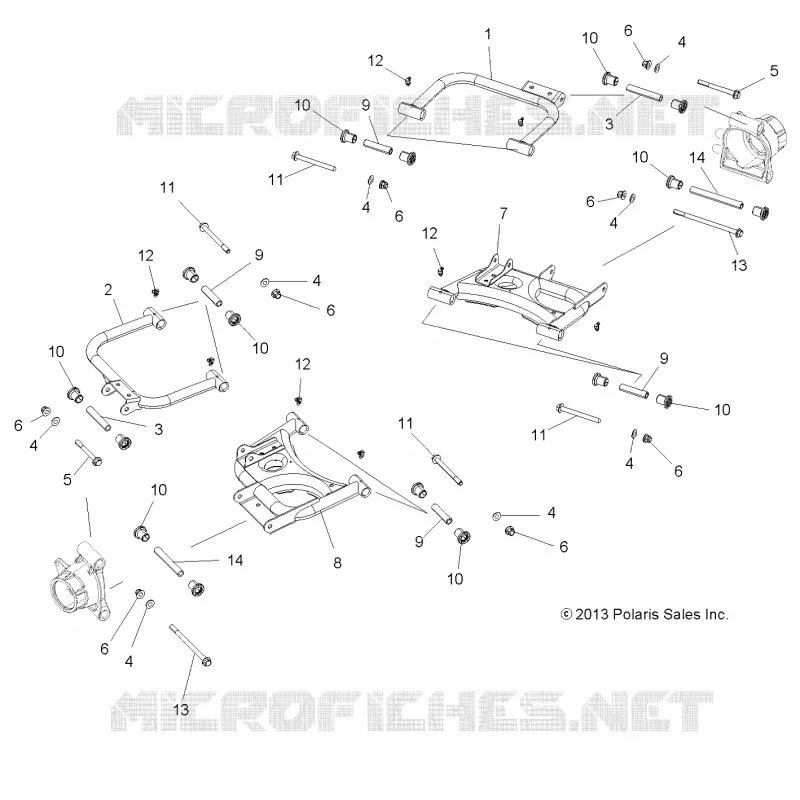

REAR SUSPENSION CONTROL ARMS
1
2
3
3
4
4
4
4
4
4
4
4
5
5
6
6
6
6
6
6
6
6
7
8
9
9
9
9
10
10
10
10
10
10
10
10
11
11
11
11
12
12
12
12
13
13
14
14
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
14
1
2
2
2
2
3
3
3
3
4
4
5
5
6
7
8
9
10
1
ARM CONTROL UPPER REAR MATTE BLACK LH
1018121458
$178,49 Unit Price incl. VAT
2
ARM CONTROL UPPER REAR MATTE BLACK RH
1018123458
$178,49 Unit Price incl. VAT
3
SHAFT PIVOT 89.71MM
5137592
$12,59 Unit Price incl. VAT
4
WASHER
7556153
$3,66 Unit Price incl. VAT
5
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
$13,64 Unit Price incl. VAT
6
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
7
ARM CONTROL LOWER REAR MATTE BLACK LH
1018115458
1021704-458
$293,99 Unit Price incl. VAT
8
ARM CONTROL LOWER REAR MATTE BLACK RH
1018116458
1021705-458
$293,99 Unit Price incl. VAT
9
SHAFT-PIVOT 70.99MM 15.88OD
5138797
$16,79 Unit Price incl. VAT
10
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
12
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X165 10.9 ZOD
7519042
$17,84 Unit Price incl. VAT
14
TUBE PIVOT [TO 11/9/15]
5336724
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
