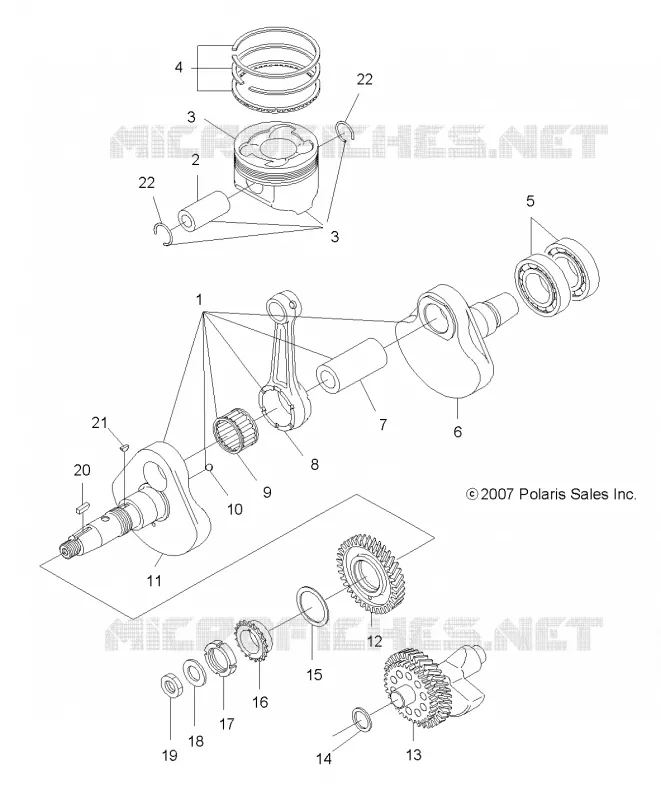

ENGINE, CRANKSHAFT AND PISTON FOR SPORTSMAN 500 HO - A08MH50AX/AZ FROM 2008

ENGINE, CRANKSHAFT AND PISTON

1

Asm. Crankshaft [Incl. 6-12]

3089570

$1 637,99 Unit Price incl. VAT

2

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

Asm. Piston Set [.50 O/S][Incl. 1][4x4][6x6]

3087223

$242,54 Unit Price incl. VAT

3

Asm. Piston Set [Std][Incl. 1][4x4][6x6]

3087221

Not Available

3

Asm. Piston Set [.25 O/S][Incl. 1][4x4][6x6]

3087222

$242,54 Unit Price incl. VAT

4

Piston Ring Set [.25 O/S][4x4][6x6]

3087225

$108,14 Unit Price incl. VAT

4

Piston Ring Set [.50 O/S][4x4][6x6]

3087226

$108,14 Unit Price incl. VAT

4

Piston Ring Set [Std][4x4][6x6]

3087224

$101,84 Unit Price incl. VAT

5

Bearing Ball

3085815

$74,54 Unit Price incl. VAT

6

Crankshaft 2 [4x4][6x6]

3085812

$1 238,99 Unit Price incl. VAT

7

Pin Crank

3087090

$204,74 Unit Price incl. VAT

8

Rod Connecting

3085813

Not Available

9

Bearing End Large

3085343

$121,79 Unit Price incl. VAT

10

BALL STEEL

3085024

$12,59 Unit Price incl. VAT

11

Crankshaft 1

3089678

Not Available

12

Gear 1 Balancer

3089245

Not Available

13

Shaft Balancer

3090031

Not Available

14

SPACER (1.0)

3084896

$12,59 Unit Price incl. VAT

14

SPACER (0.8)

3084895

$12,59 Unit Price incl. VAT

14

SPACER (1.2)

3084897

$12,59 Unit Price incl. VAT

15

SPACER (1.0)

3084893

$36,74 Unit Price incl. VAT

15

SPACER (1.2)

3084894

$36,74 Unit Price incl. VAT

15

SPACER

3240088

$19,94 Unit Price incl. VAT

15

SPACER (0.8)

3084892

$24,14 Unit Price incl. VAT

16

SPROCKET 1

3084882

Not Available

17

NUT SLIT

3085528

$68,24 Unit Price incl. VAT

18

Washer

3086767

Not Available

19

LOCKNUT

3083905

Not Available

20

KEY

3081447

Not Available

21

Key Woodruff

3240168

$47,24 Unit Price incl. VAT

22

CLIP(10)

3085534

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
