1
Engine displacement
400
2
Year
1989
3
Trim
NOR 400 SKS - N890559
4
Parts Catalog
RECOIL STARTER 650 (4915411541045A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 AND 500 CLASSIC (4915411541044A)
by
WATER PUMP 400 (4915411541046A)

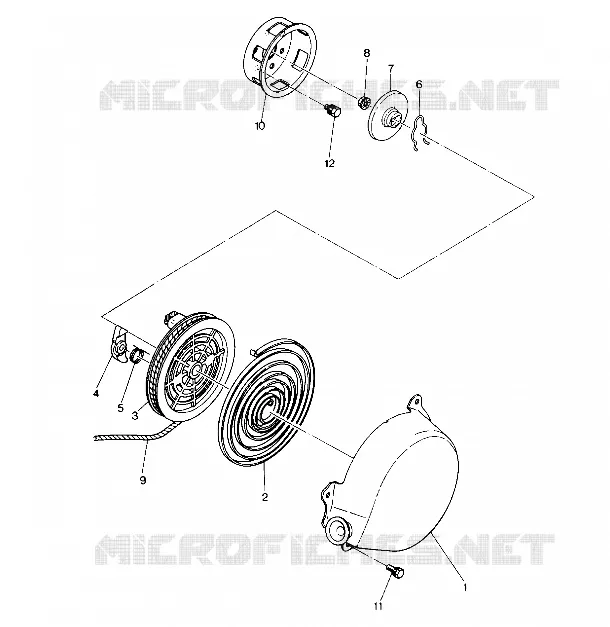

RECOIL STARTER 650 (4915411541045A)
-
RECOIL STARTER (Incl. 1-9)
3083492
Not Available
1
CASE STARTER
3083494
Not Available
2
SPRING SPIRAL
3083495
Not Available
3
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
4
RATCHET
3083378
$36,74 Unit Price incl. VAT
5
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
6
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
7
PLATE FRICTION
3083464
Not Available
8
NUT FLANGE
3083381
Not Available
9
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
10
PULLEY STARTING
3083502
Not Available
11
BOLT&WASHER ASM.
3083868
Not Available
12
BOLT&WASHER ASM.(10)
3083869
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
